What is ACSR Wire?

The Utility Workhorse

Aluminum Conductor Steel Reinforced (ACSR) Wire is the foundational conductor for overhead power transmission and distribution lines globally. It is an un-insulated, bare conductor, meaning it relies on air clearance for safety, not a polymer jacket.

ACSR is engineered to solve the fundamental problem of long-distance overhead power: maintaining high electrical conductivity while possessing the extreme tensile strength needed to span large distances between towers or poles. It achieves this by combining two metals in one cable.

Here is everything utility engineers, installers, construction bidders, and heavy industrial purchasers need to know about selecting this powerhouse conductor.

1. The Strength Equation: Aluminum Meets Steel

The construction of ACSR is a lesson in material synergy, optimizing both electrical and mechanical performance.

• Aluminum (Outer Layers): The outer, highly conductive strands are made of high-purity aluminum. This metal is significantly lighter and less expensive than copper, providing excellent cost efficiency and ampacity over long runs.

• Steel (The Core): At the center of the cable is a core of galvanized steel strands. This steel carries the majority of the mechanical load, providing the necessary tensile strength to withstand wind, ice loading, and extreme tension when pulled across long spans (e.g., across rivers or valleys).

• Net Result: The combination provides the high strength of steel with the low weight and cost-effectiveness of aluminum.

2. Construction and Naming Conventions

ACSR cable is defined by the ratio of aluminum strands to steel strands, which dictates both the electrical capacity and the overall strength.

• Structure: The cable consists of one or more layers of aluminum strands concentrically twisted around the central steel core.

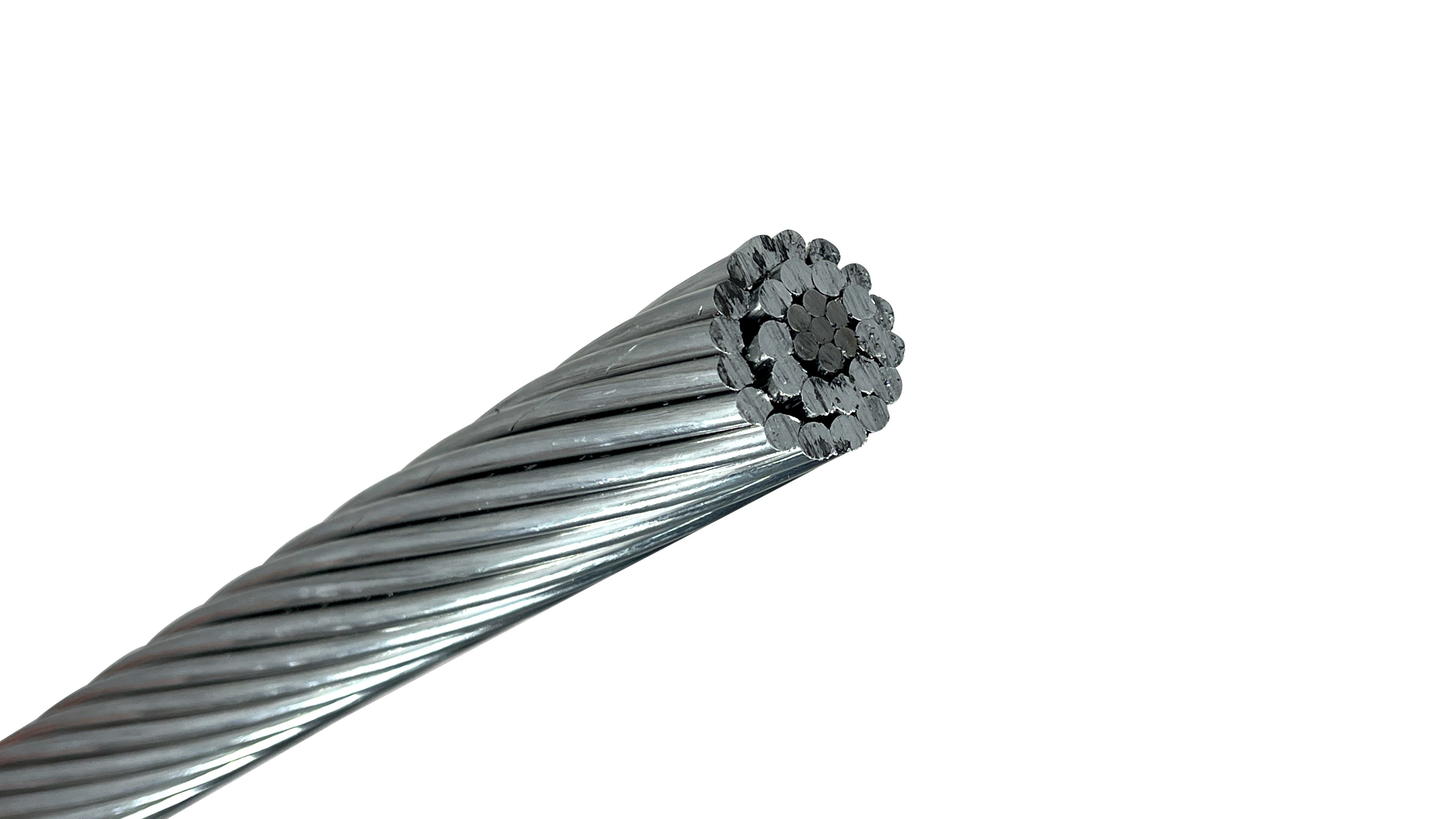

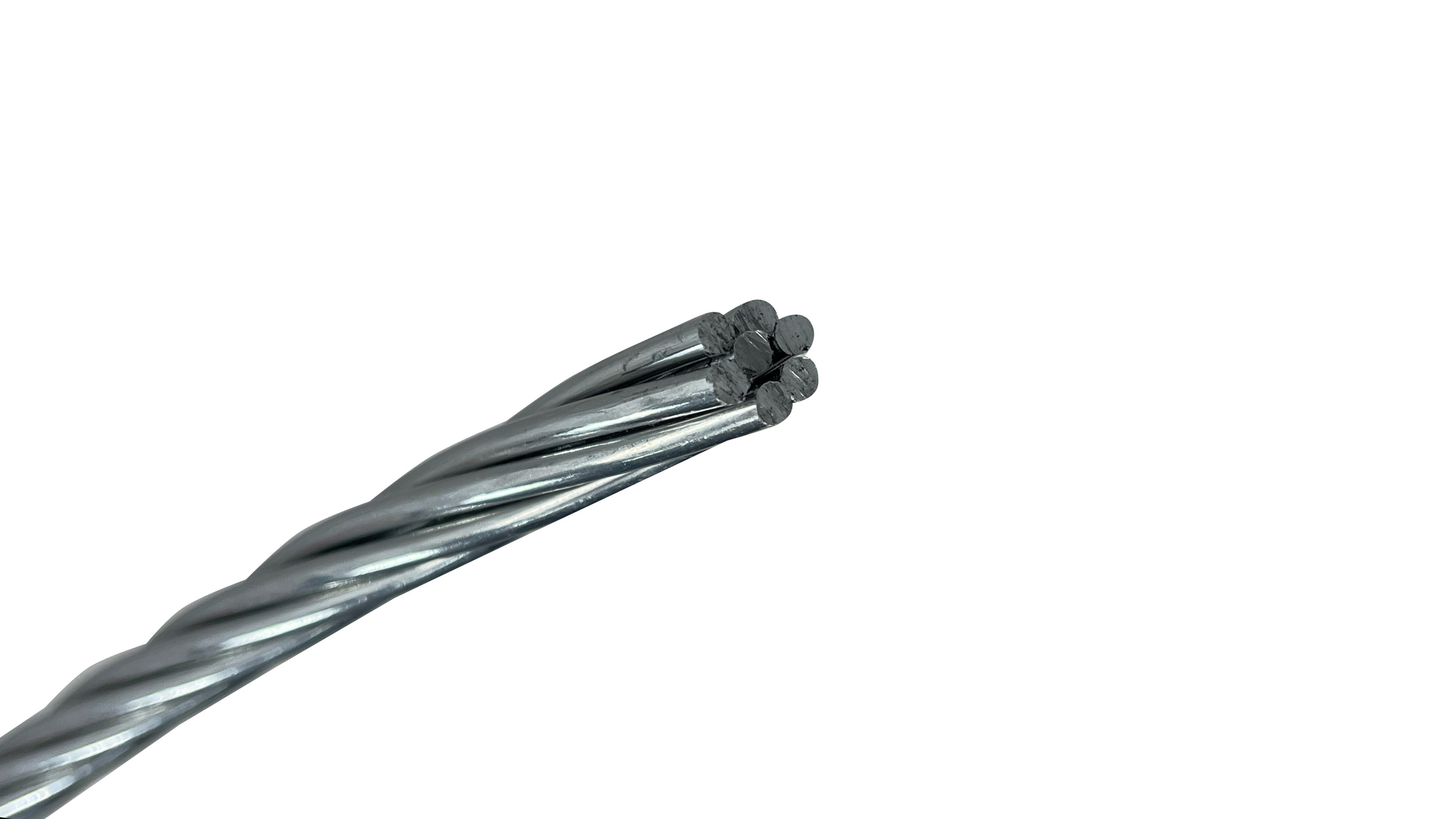

• The Ratio (A/S): ACSR names typically include two numbers, such as 26/7.

  • The first number (26): Represents the total number of aluminum strands (the conductor).

  • The second number (7): Represents the total number of steel strands (the reinforcement).

• Sizing (kcmil): The overall conductivity of the cable is measured in kcmil (or MCM), which represents the total cross-sectional area of the aluminum conducting material.

• Load Management: Choosing a ratio depends on the application: highly congested areas with shorter spans might use a lower steel ratio; remote areas with very long spans require a higher steel ratio for maximum tensile strength.

3. Key Advantages for Overhead Lines

The unique structure of ACSR provides distinct benefits over other conductor types (like all-aluminum conductor, or AAC).

• Long Span Capability: The high strength-to-weight ratio allows ACSR to be pulled across much longer distances than unreinforced cables, reducing the number of poles or towers required and saving significant construction costs.

• Corrosion Resistance: The steel core is galvanized to resist corrosion, and the outer aluminum strands form a stable oxide layer, protecting the cable from environmental degradation over its decades-long service life.

• Thermal Stability: ACSR maintains its strength and stability across a wide temperature range, making it reliable in diverse climates prone to both extreme heat and heavy icing.

4. Application and Compliance Notes

Since ACSR is a bare conductor, safety relies entirely on system design and adherence to mandated clearances.

• Insulation: The conductor is un-insulated. Installation must strictly adhere to the National Electrical Safety Code (NESC) minimum vertical and horizontal clearances for bare, energized conductors.

• Splicing and Termination: Due to the mixed materials, specialized compression fittings and splicing techniques are required to ensure robust, long-lasting electrical and mechanical contact between the aluminum and steel components.

• Installation Note: Because of the steel core, ACSR can be pulled with much higher tension than AAC, but this requires specific tensioning equipment and careful handling to prevent damage to the outer aluminum strands.

5. Primary Applications: Where ASCR is Essential

• Primary Power Transmission: High-voltage backbone lines carrying power from generating stations to substations.

• Substation Feeders: Medium-voltage distribution lines feeding power from substations out to neighborhoods and commercial areas.

• Long Span Crossings: Applications requiring exceptional mechanical strength, such as crossings over highways, rivers, or valleys.

6. Why Buy ACSR Wire?

ACSR Wire is the most widely adopted overhead conductor for a reason: it delivers the ideal balance of high conductivity, low cost, and exceptional mechanical strength. Its dual-metal design makes it the essential choice for any project requiring long-distance, reliable, overhead power delivery.
