What is VFD Cable?

The Essential Shield for Variable Frequency Drives

Variable Frequency Drives VFDs are critical for efficiently controlling motor speed in commercial and industrial applications. However, the high switching frequencies (pulsed PWM signals) generated by a VFD create serious electrical challenges that standard motor cable simply cannot handle.

The specialized solution is VFD Cable, a robust, shielded, and balanced cable engineered to protect your motor, your drive, and your entire electrical system. Using anything less can potentially lead to system failure, motor overheating, and dangerous electrical noise.

Below is information engineers, contractors, and maintenance teams should know about why VFD cable is required for many of these systems.

1. The Electrical Challenge: Why Standard Cable Fails

VFD operation creates phenomena that degrade standard THHN or TFFN cable insulation and introduce system-wide noise.

• Reflected Wave Voltage: The fast-switching pulses sent by the VFD can reflect back from the motor terminals, creating voltage spikes that can be three to five times the nominal voltage. Standard cable insulation quickly breaks down under this stress.

• Common Mode Noise: Current generated by the VFD travels on the equipment grounding conductor and through the air, causing electromagnetic interference EMI that can disrupt nearby sensitive equipment, communication lines, and sensors.

• Premature Motor Failure: High voltage spikes erode the motor winding insulation, leading to premature motor bearing and stator failure.



2. The VFD Cable Solution: Shielding and Balancing

VFD cable is engineered to defeat these electrical challenges through specific construction features:

• High-Grade Insulation: VFD cable uses XLPE (Cross-Linked Polyethylene) or EPR (Ethylene Propylene Rubber) insulation. These materials have a higher dielectric strength than standard PVC or THHN/THWN, allowing them to safely withstand the extreme reflected voltage spikes (up to 2000V peak) without breaking down.

• Symmetrical Grounding: V

• FD cable includes three or four smaller, symmetrically placed grounding conductors (or a single large one) placed strategically under the cable shield. This balanced design manages and cancels out common mode currents, protecting the motor bearings.

• The Critical Shield: VFD cable utilizes a high-coverage copper braid shield (often paired with an aluminum foil wrap) to create a robust electrical barrier. This shield captures 100

• % of the EMI and channels noise directly back to the VFD drive cabinet, preventing it from polluting the rest of the facility.

3. Sizing and Selection Notes

Choosing the correct VFD cable requires matching the motor load and selecting the appropriate construction type.

• Sizing (AWG/kcmil): Cable gauge must be selected based on the motor's full-load amperage FLA and the run distance. Always consult the NEC ampacity tables, and consider using

•  the 90°C column, as the cable is typically rated for that temperature.

• Conductor Count (4-Conductor vs. 3+3/4):

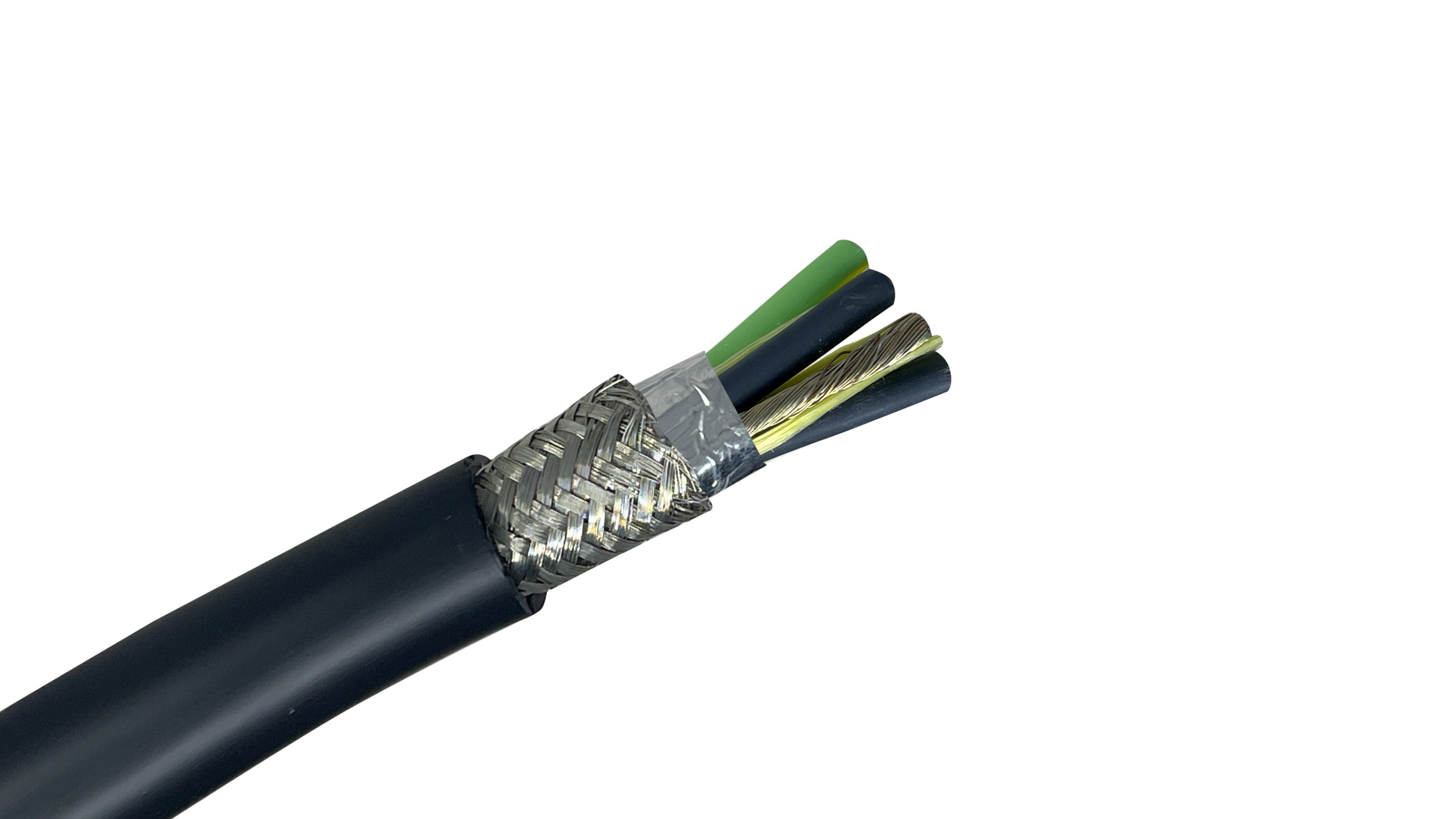

  • 3-Conductor + Symmetrical Grounds: This is the most common and effective design. It includes three power conductors and multiple symmetrical grounds to manage common-mode noise optimally.

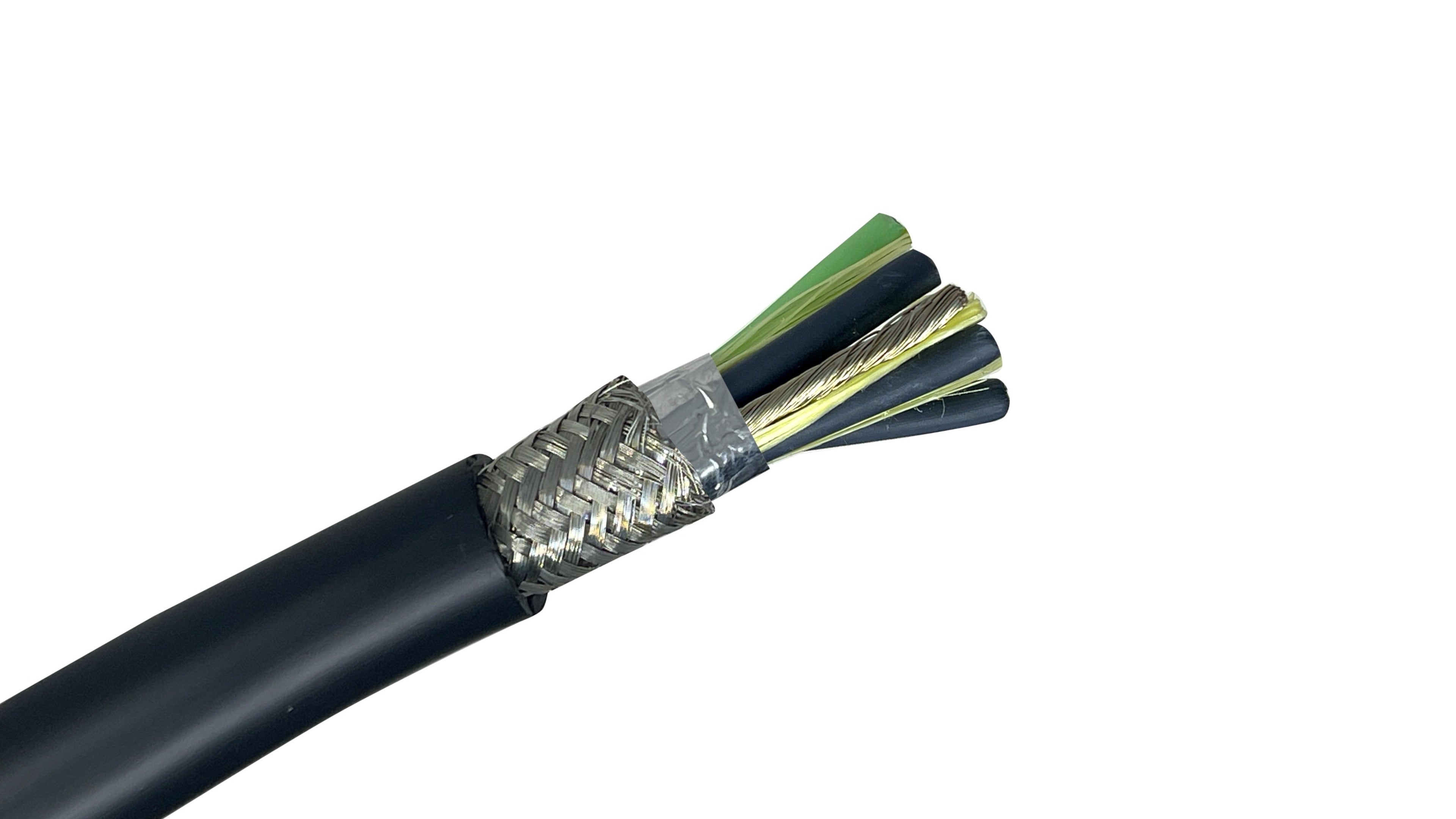

  • 4-Conductor: Includes three power conductors and one full-size insulated ground. While sufficient for many drives, the symmetrical grounding design offers superior noise immunity.

• Jacket Rating: VFD cable is generally rated for 600V or 1000V. Look for TC (Tray Cable) and ER (Exposed Run) ratings for industrial installations where the cable must run outside of conduit.

Wire America offers all industrial sizes, ready to be cut to length - below are a few examples:

• 10 AWG 3-Conductor Shielded VFD: Ideal for smaller motor loads requiring superior noise protection.

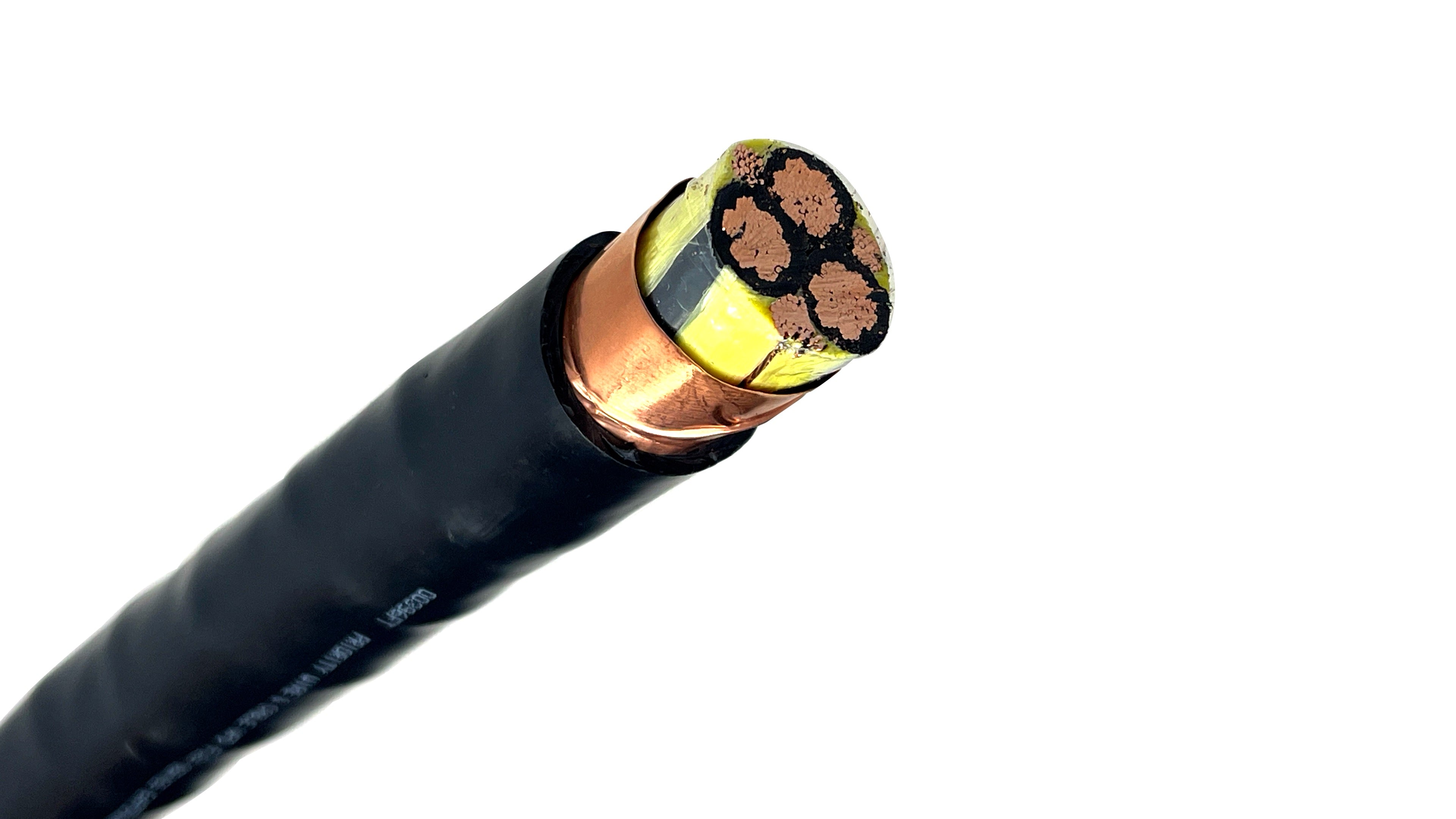

• 500 MCM 3-Conductor Shielded VFD: Engineered for high-load industrial motor feeds with 3-#6 symmetrical grounds for maximum system stability.

4. Key Applications for VFD Cable

Any installation that utilizes motor speed control via a drive system must use VFD cable:

• Industrial Automation: Conveyors, mixers, pumps, and fans in manufacturing and processing plants.

• HVAC Systems: Air handlers, chillers, and large fans in commercial buildings.

• Oil & Gas: Downhole pumps, drilling equipment, and fluid movement systems.

• Marine & Offshore: Propulsion systems and various deck machinery.

5. Why Buy VFD Cable

VFD cable is not an optional upgrade; it is a mandated component for VFD-motor systems. Its superior XLPE insulation and critical copper shielding protect against high-voltage spikes and EMI, ensuring the long-term reliability and efficiency of your most valuable motor assets.

Wire America is proud to offer this product by the foot or by the spool with fast shipping to your location.
