SRML - 150ºC | 200ºC

SRML Wire, or Silicone Rubber Motor Lead Wire, is a specialized high-temperature electrical wire designed for extreme heat applications. It features flexible, stranded tinned copper conductors insulated with silicone rubber and often covered by a fiberglass braid for added mechanical protection. Rated for 600 volts and temperatures up to 150°C or 200°C, SRML wire maintains flexibility while resisting moisture, chemicals, and abrasion. It's commonly used as motor leads and for internal wiring in ovens, furnaces, high-wattage lighting, and other demanding high-temperature equipment. Read our SRML High Temp Wire Buyers Guide.

Filters

0 Products

FIlters

Industrial SRML Silicone Rubber Motor Lead Wire

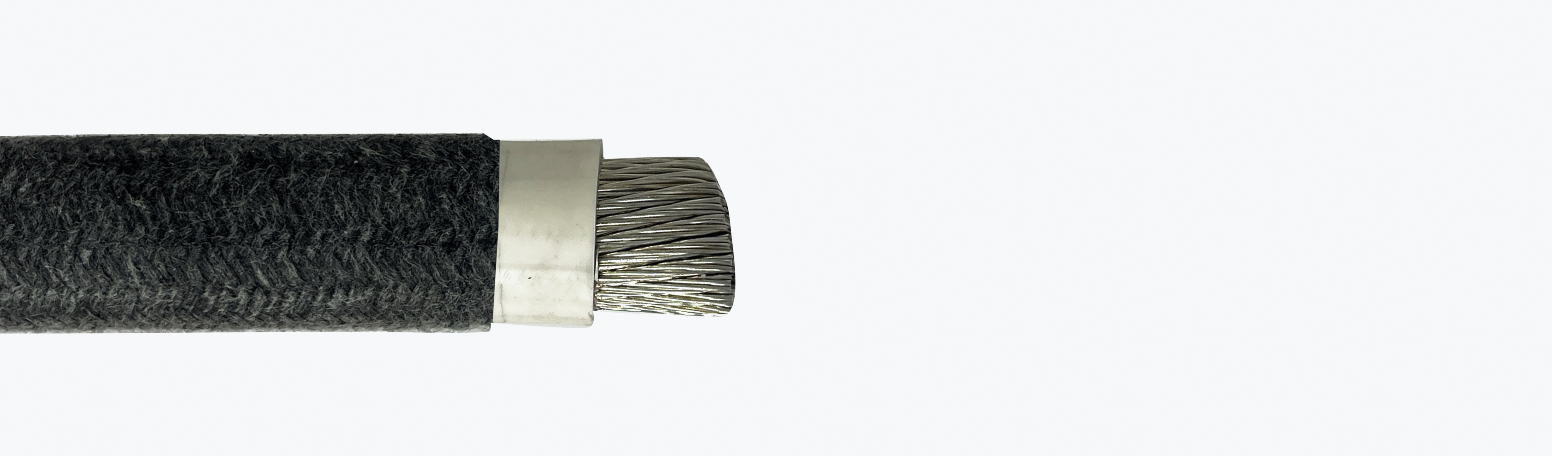

SRML wire (Silicone Rubber Motor Lead) is the industry standard for applications requiring high-heat resistance combined with extreme flexibility. Featuring a stranded tinned copper conductor and a dual-layer insulation system of silicone rubber and a fiberglass braid, SRML is engineered to remain stable under constant thermal cycling. It is the primary choice for motor leads, transformer wiring, and high-intensity lighting where standard THHN or PVC wires would become brittle and fail. UL 3231• UL SFF-2 (18-14 AWG)• UL 3070 (18-12 AWG)• UL 3101 (10 AWG)• CSA AWM 1 A/B FT.


Key Features
  • High-Heat Flexibility: Rated for continuous use at 150°C to 200°C, maintaining its rubber-like flexibility even in extreme temperatures.
  • Dual-Layer Protection: The silicone rubber core provides excellent dielectric strength, while the treated fiberglass braid offers mechanical protection against abrasion and fraying.
  • Chemical & Moisture Resistance: Naturally resistant to ozone, radiation, and many industrial chemicals, making it ideal for harsh manufacturing environments.
  • Tinned Copper Conductors: Utilizes stranded tinned copper to prevent corrosion and ensure easy soldering and termination at motor terminals.
  • 600V Power Rating: Supports both standard control circuits and heavy-duty power distribution in industrial machinery.
  • UL Standards: UL 3231, UL SFF-2 (18-14 AWG), UL 3070 (18-12 AWG), UL 3101 (10 AWG)
Common Applications
  • Motor & Generator Leads: The preferred choice for internal wiring and external leads for high-horsepower industrial motors.
  • Transformer Wiring: Deployed in dry-type transformers where high-heat stability is required during peak loads.
  • High-Intensity Lighting: Used in stadium lighting, stage lamps, and industrial high-bay fixtures.
  • Industrial Ovens & Appliances: Ideal for wiring in commercial food equipment and drying systems where temperatures stay below 200°C.
  • Apparatus & Control Wiring: Frequently used in electrical heating equipment and specialized laboratory tools.
Installation Note
  • SRML is optimized for applications requiring frequent movement or vibration. If your project environment exceeds 200°C, you must transition to TGGT (250°C) or Type MG (450°C) to prevent insulation failure. For detailed load-carrying capacity, refer to the technical specifications on our individual product pages for SRML ampacity ratings.
