Solar PV Wire: Copper vs. Aluminum

Solar PV Wire Buyer's Guide: Copper vs. Aluminum

When designing a solar array, one of the most significant cost variables isn't the panels—it’s the wire connecting them. For UL 4703 Photovoltaic (PV) Wire, you have two primary choices for conductor material: Copper and Aluminum.

While Copper has been the industry standard for decades, 8000-series Aluminum is rapidly gaining ground in large-scale projects. This guide will help you decide which material is the right fit for your specific installation.

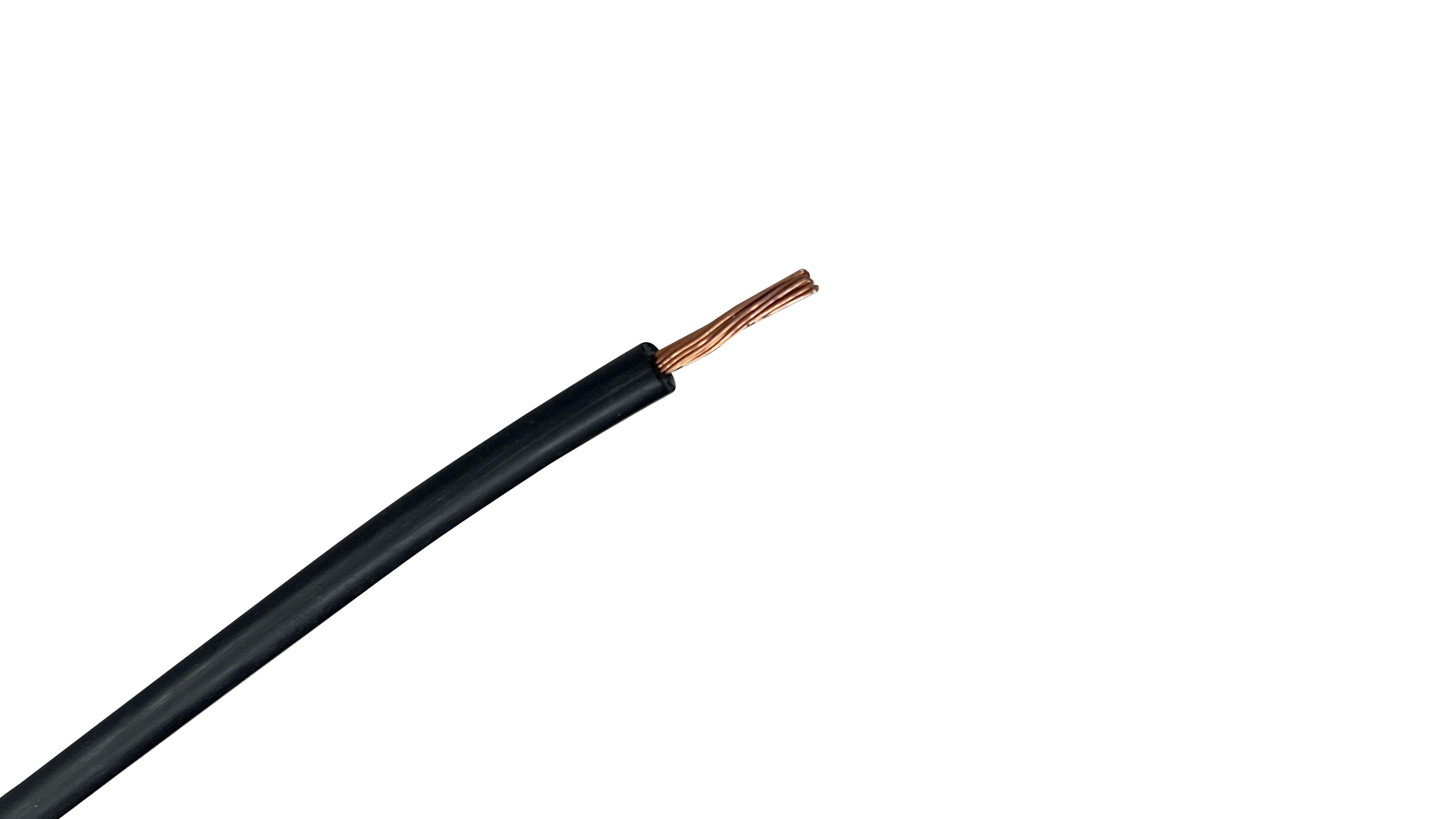

When to Choose Copper PV Wire

Copper remains the "gold standard" for smaller installations and tight spaces.

• Maximum Conductivity: Copper carries electricity more efficiently than aluminum. This means you can use a smaller gauge wire (like 10 AWG or 12 AWG) for panel-to-panel "string" wiring, making it easier to manage in tight racking systems.

• Ease of Termination: Copper is incredibly resilient. It doesn't require specialized compression lugs or antioxidant pastes, which speeds up labor on residential rooftop jobs.

• Corrosion Resistance: If you are working on a coastal project, Tinned Copper is the ultimate defense against salt-air oxidation.

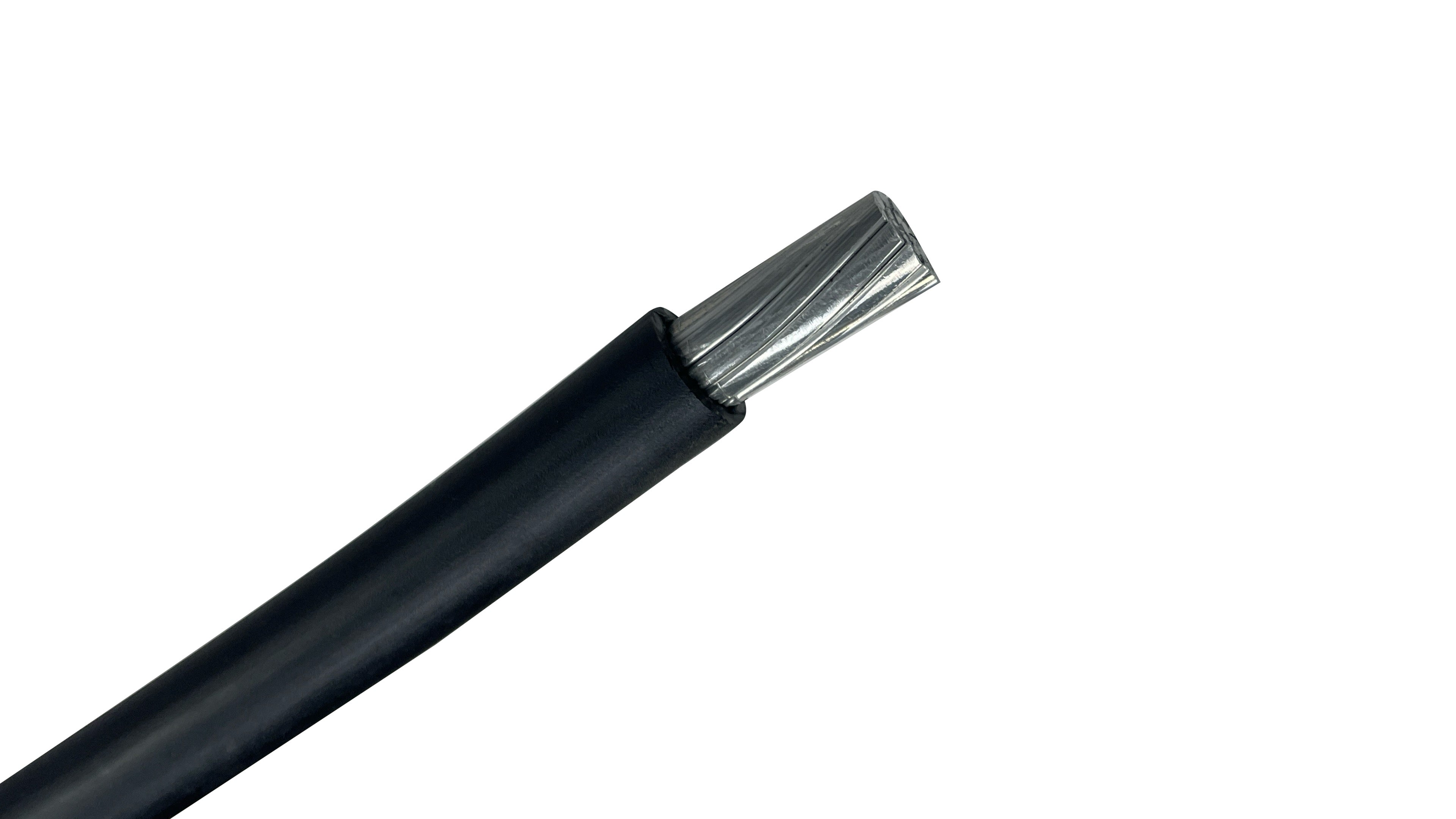

When to Choose Aluminum PV Wire

Aluminum is no longer the "budget" choice; it is the utility-scale choice.

• Drastic Cost Savings: On large solar farms, the price difference between copper and aluminum can be the difference between a project being profitable or over-budget. Aluminum is often 50% to 70% cheaper than copper for the same ampacity.

• Reduced Weight: Aluminum is roughly one-third the weight of copper. This reduces the mechanical load on solar trackers and makes long-distance pulls through conduit or cable trays much easier on your crew.

• 8000 Series Reliability: Modern aluminum PV wire uses the 8000 series alloy, which is engineered to stay flexible and maintain stable connections, eliminating the "creep" issues of old 1350-series aluminum.


The "Distance" Rule: Feeder vs. String Wiring

A common "pro" strategy is to use a hybrid approach:

1. String Wiring (Copper): Use #10 or #12 AWG Stranded Copper to connect the panels to the combiner box.

2. Feeder Runs (Aluminum): Once you hit the combiner box, switch to large-gauge Aluminum (like 4/0, 250 kcmil or 350 kcmil) for the long run back to the central inverter. This maximizes efficiency while slashing material costs.

How Wire America Can Help

At Wire America, we specialize in professional-grade UL 4703 Photovoltaic (PV) Wire designed for the most demanding solar environments. We offer a full range of sizes to power everything from residential rooftops to utility-scale farms:

• String Wiring: High-flexibility 10 AWG and 12 AWG copper for panel interconnection.

• Feeder Power: Massive conductors ranging from 4/0 AWG, 500 MCM up to 1000 MCM in 8000-series Aluminum.

• High-Voltage Ready: Full stock of 2000V rated PV wire for modern, high-efficiency inverter systems.

Ready to start your solar project? Shop our Copper and Aluminum PV Wire Collection here.

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
