THERMOSTAT WIRE

Thermostat Wire is a low-voltage electrical cable specifically designed to connect your thermostat to your HVAC (heating, ventilation, and air conditioning) system. Unlike standard power wires, it carries only control signals, typically at 24 volts AC. These cables contain multiple, color-coded conductors (e.g., 18-gauge) to manage various HVAC functions like heating, cooling, and fan operation, acting as the essential communication link for regulating your home's temperature. Read our Thermostat Wire Buyers Guide.

Filters

0 Products

FIlters

THERMOSTAT AND HVAC CONTROL WIRE

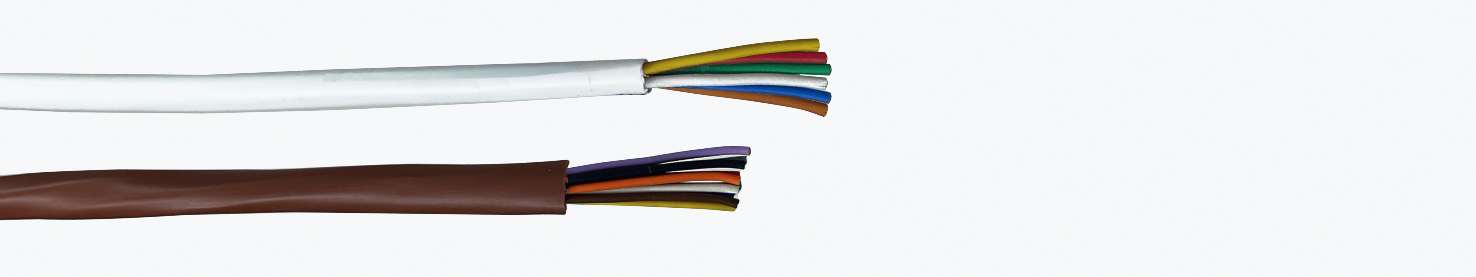

Thermostat wire is a specialized multi-conductor cable used to carry low-voltage control signals between heating, ventilation, and air conditioning (HVAC) systems and their wall-mounted thermostats. Typically rated for 30V to 150V, this cable utilizes solid bare copper conductors for easy termination and a durable PVC jacket designed for indoor routing. Available in conductor counts ranging from 2 to 12, thermostat wire allows for the precise management of multiple stages of heating and cooling, as well as the "C-wire" connection required for modern Wi-Fi and smart thermostats. Whether you are wiring a simple residential furnace or a complex commercial heat pump, our high-quality HVAC wire ensures reliable communication and efficient climate control.

Installation Note: When upgrading to a smart thermostat, always verify your conductor count. Modern "smart" units typically require a "C" (Common) wire to provide continuous 24V power; if your existing cable only has 2 or 4 wires, you may need to pull a new 18/5 or 18/8 cable. Per NEC Article 725, do not run thermostat wire in the same conduit or junction box as high-voltage (120V/240V) power lines, as electrical interference can cause irregular system behavior or damage sensitive electronic boards.

Key Features
  • Solid Copper Conductors: Features 18 AWG or 20 AWG solid bare copper for superior signal integrity and effortless insertion into terminal blocks.
  • Plenum (CL2P) & Riser (CL2R) Rated: Available in various fire-safety ratings to comply with building codes for air-handling spaces and vertical shafts.
  • Multi-Stage Compatibility: Offered in 2, 3, 4, 5, 6, 8, and 10-conductor configurations to support everything from basic boilers to advanced multi-stage HVAC systems.
  • Standardized Color-Coding: Follows industry-standard color schemes (R, Y, W, G, C) to simplify wiring and ensure accurate system connections.
  • Flexible PVC Jacket: Encased in a smooth, easy-to-pull jacket that resists kinking and protects against mechanical damage during installation.
  • Sunlight Resistant Options: Many versions feature a brown or white jacket formulated to resist UV degradation if exposed near outdoor condenser units.
  • Industry Compliance: UL listed as Type CL2 or CM per NEC Article 725, ensuring safety and performance standards are met.
Common Applications
  • Smart Thermostat Installation: Providing the 5-wire or 8-wire connection needed for power-hungry Wi-Fi and touchscreen thermostats.
  • Residential HVAC Systems: The primary wiring for central air conditioning, gas furnaces, and electric heat pumps.
  • Boiler & Zone Valve Control: Used to connect thermostats to zone valves and circulator pumps in hydronic heating systems.
  • Commercial Building Automation: Routing signals from local thermostats to central Building Management Systems (BMS).
  • Air Handler & Condenser Interconnect: Linking the indoor evaporator coil unit to the outdoor compressor/condenser unit.
  • Humidifier & Dehumidifier Integration: Providing the additional control lines required for integrated whole-home humidity management.
  • Ventilation Control: Used for wiring energy recovery ventilators (ERVs) and fresh air intake dampers.
