Copper MV-105 is the premium choice for critical primary power circuits where maximum conductivity and long-term reliability are non-negotiable. While aluminum offers weight advantages, copper remains the industrial standard for high-demand environments, offering superior ampacity in smaller conduit sizes. Rated for a continuous conductor temperature of 105°C, this cable provides the thermal resilience required for voltages ranging from 5,000 to 35,000 Volts.

Core Architecture: EPR & PVC Construction

Copper MV-105 is built to exceed industry standards, including UL 1072, for high-stakes electrical distribution:

• Annealed Bare Copper Conductor: Features Class B compact or compressed stranding for maximum efficiency and easier terminations.

• Lead-Free EPR Insulation: High dielectric strength Ethylene Propylene Rubber (EPR) insulation provides excellent resistance to heat, moisture, and electrical stress.

• 5-Mil Copper Tape Shield: A helically applied metallic shield with a 25% overlap ensures proper stress control and a safe path for fault current.

• Rugged PVC Jacket: The black, low-friction polyvinyl chloride (PVC) jacket is flame-retardant and resistant to moisture, sunlight, and oils.

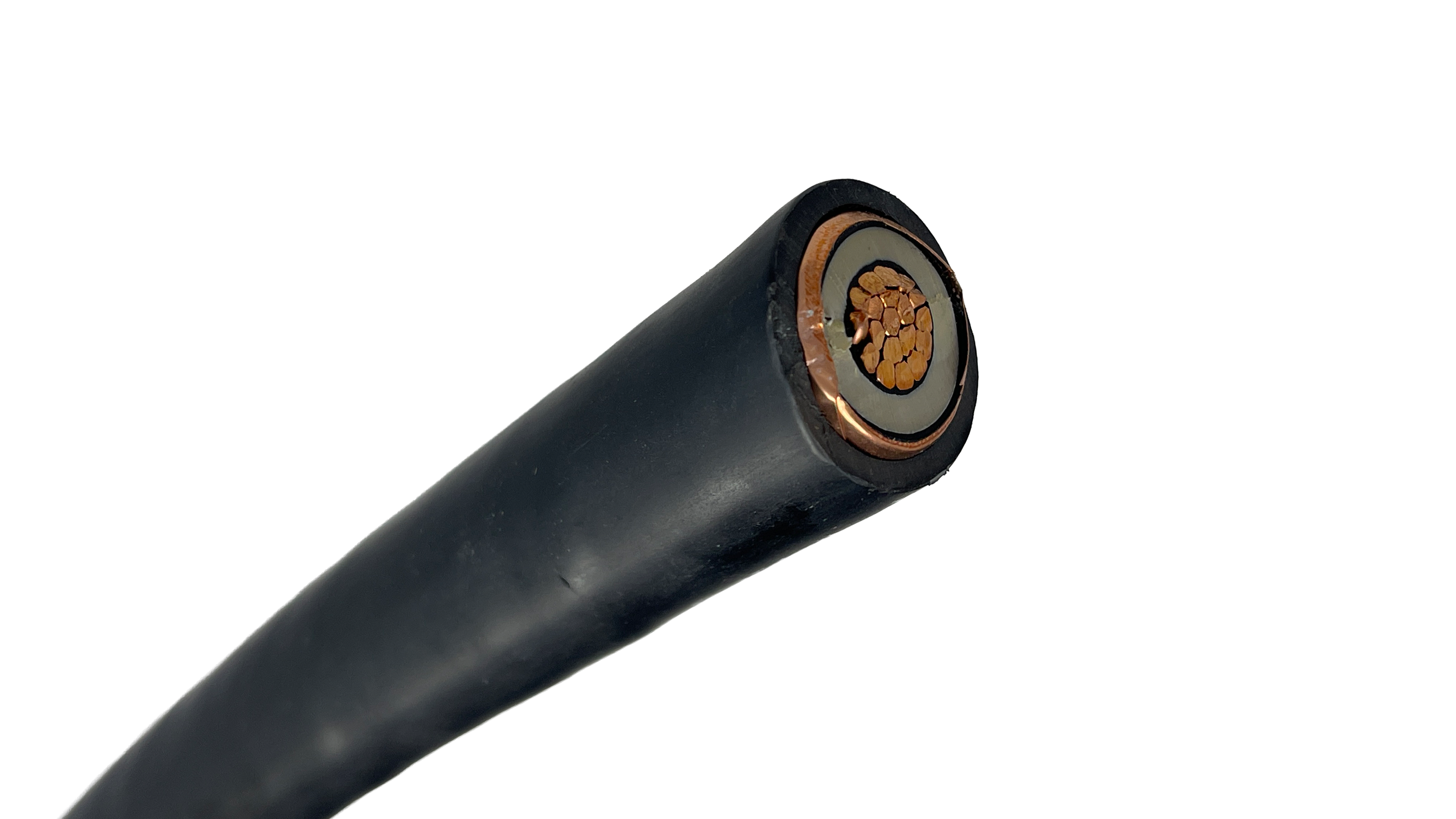

Inside the Shield: A technical look at the multi-layer construction of an MV-105 cable. The compact stranded copper conductor is surrounded by high-performance lead-free EPR insulation, while the copper tape shield provides 100% EMI coverage to ensure system stability. This entire assembly is protected by a low-friction PVC jacket, specifically engineered for easier pulls through long conduit runs.

Understanding Insulation Levels & Voltage Ratings

Wire America offers Copper MV-105 across multiple voltage classes to match your specific system design and grounding requirements:

• 5kV/8kV (115-Mil Insulation): Approved for up to 5,000V in ungrounded applications and 8,000V for grounded systems.

• 15kV – 133% Insulation Level (220-Mil): Required for 15kV systems where ground faults may take up to one hour to clear.

• 35kV – 133% Insulation Level (220-Mil): Utilized for high-voltage distribution with high-speed fault clearing.

Installation Flexibility & Professional Applications

Listed as Type MV-105, this cable is approved for the most demanding installation methods and commercial environments:

• Conduit & Aerial: The low-friction jacket allows for smoother pulls through PVC or steel conduit, or aerial installation when supported by messenger wire.

• Cable Tray (FOR CT USE): Sizes 1/0 AWG and larger are specifically listed and marked for use in cable trays.

• Direct Burial: Approved for direct burial when installed with a ground conductor in close proximity.

• Industrial & Utility: Primary power for refineries, petro-chemical plants, utility substations, and data centers.

Shop Copper MV-105 by Gauge & Voltage

Below is a sample of sizes we offer.  Select your required size to view technical data. All sizes feature 105°C EPR insulation and a 5-mil copper tape shield:

5kV/8kV Copper MV-105 (115-Mil Insulation)

• Standard Sizes: 6 AWG | 4 AWG | 2 AWG

• High-Load Feeders: 1/0 AWG | 2/0 AWG | 4/0 AWG

• Industrial Power: 250 MCM | 350 MCM | 500 MCM | 750 MCM | 1000 MCM

15kV & 35kV Copper MV-105

• 15kV 133% Stock (220-Mil): 2 AWG | 1 AWG | 1/0 AWG | 4/0 AWG | 500 MCM | 750 MCM | 1000 MCM

• 35kV 133% Stock (220-Mil): 1/0 AWG | 4/0 AWG | 500 MCM

How Wire America Can Help

• Cut-to-Length Precision: Eliminate waste and reduce overhead by ordering only the footage your project requires.

• Emergency Overload Protection: Our Copper MV-105 handles emergency temperatures up to 140°C and short-circuit conditions up to 250°C.

• Rapid Response Inventory: We have readily available 5kV through 35kV configurations to keep your industrial or utility project on schedule.

Need a quote or the specific technical data sheet for your inspector or engineer? Contact our specialists at 833-268-8644 or email info@wireamerica.com

Ready to start your project? Shop our Copper MV-105 Collection Here

Technical Glossary: Medium Voltage Terminology

• EPR (Ethylene Propylene Rubber): A high-performance thermoset insulation that provides superior flexibility, moisture resistance, and a higher thermal rating (105°C) than traditional XLP insulation.

• Copper Tape Shield: A 5-mil thick metallic layer that provides electrostatic shielding to the cable. It ensures a uniform electrical field within the insulation and provides a safe path for fault currents to return to the source.

• Compact Stranded Conductor: A manufacturing process that reduces the overall diameter of the conductor by roughly 10% compared to standard concentric stranding. This allows for easier pulling and often enables the use of smaller conduit sizes.

• 133% Insulation Level: Insulation designed for use on systems where ground faults are not automatically cleared within one minute. It is most commonly required for ungrounded or impedance-grounded industrial systems.

• MV-105 Rating: A UL designation indicating that the cable is rated for continuous operation at conductor temperatures up to 105°C. This allows for higher ampacity ratings than 90°C cables of the same gauge.

• CT Rated: Indicates that the cable meets the flame-testing requirements for installation in ventilated or non-ventilated cable trays (typically for sizes 1/0 AWG and larger).
