Aluminum URD Cable: Primary Underground Distribution for 15kV–35kV Grids

Aluminum URD Buying Guide: Primary Underground Distribution for 15kV-35kV Grids

Aluminum URD (Underground Residential Distribution) cable is the primary "backbone" for modern underground power grids. Designed to carry high-voltage loads from substations to residential and commercial transformers, these cables must be engineered for maximum longevity in harsh, direct-burial environments.

Whether you are a utility engineer or a large-scale developer, this guide covers the critical specifications required for reliable 15kV to 35kV primary power distribution.

Engineered for Underground Longevity

Primary power distribution doesn't get a second chance once it's buried. To meet ICEA S-94-649 and AEIC CS8 industry standards, our Aluminum URD features a sophisticated multi-layer construction:

• 8000-Series Compact Stranded Aluminum: Provides a lightweight, high-conductivity alternative to copper, making long underground pulls easier while reducing the risk of tension-related damage.

• TR-XLPE or EPR Insulation: We utilize Tree-Retardant Cross-Linked Polyethylene (TR-XLPE) to stop the growth of "water trees"—microscopic cracks caused by moisture that are the leading cause of underground insulation failure.

• Concentric Neutral Wires: A layer of bare copper wires is applied concentrically over the insulation shield to provide a safe ground and a reliable fault-current return path.

• Linear Low-Density Polyethylene (LLDPE) Jacket: The entire assembly is encapsulated in a rugged LLDPE outer jacket, providing the primary defense against abrasion, soil chemicals, and rock damage during direct burial.

Primary Applications for URD Cable

Aluminum URD is the industry standard for primary underground distribution (UD) across several critical sectors:

• Residential Subdivisions: Running primary power from main utility lines to individual pad-mounted transformers throughout a neighborhood.

• Commercial Developments: Providing high-voltage feeders for shopping centers, office parks, and institutional campuses.

• Utility Grid Modernization: Replacing aging overhead lines with storm-resilient underground circuits to improve neighborhood aesthetics and reliability.

• Industrial Primary Loops: Serving as the high-voltage "backbone" for large industrial complexes that require primary-side power distribution.

Understanding Insulation Levels: 100% vs. 133%

When selecting your 15kV or 35kV URD cable, the "insulation level" is a critical safety specification dictated by your system's grounding:

• 100% Insulation Level: The standard for most well-grounded utility systems. It is used where protective devices can clear a ground fault within one minute.

• 133% Insulation Level: Recommended for ungrounded systems or environments where faults may take up to one hour to clear. This thicker insulation provides an extra safety margin against electrical stress during a fault.

Standard URD Configurations

At Wire America, we offer 15kV to 35kV primary cables in both 100% and 133% insulation levels to meet your specific utility grid requirements. Below are a few examples of our product selection:

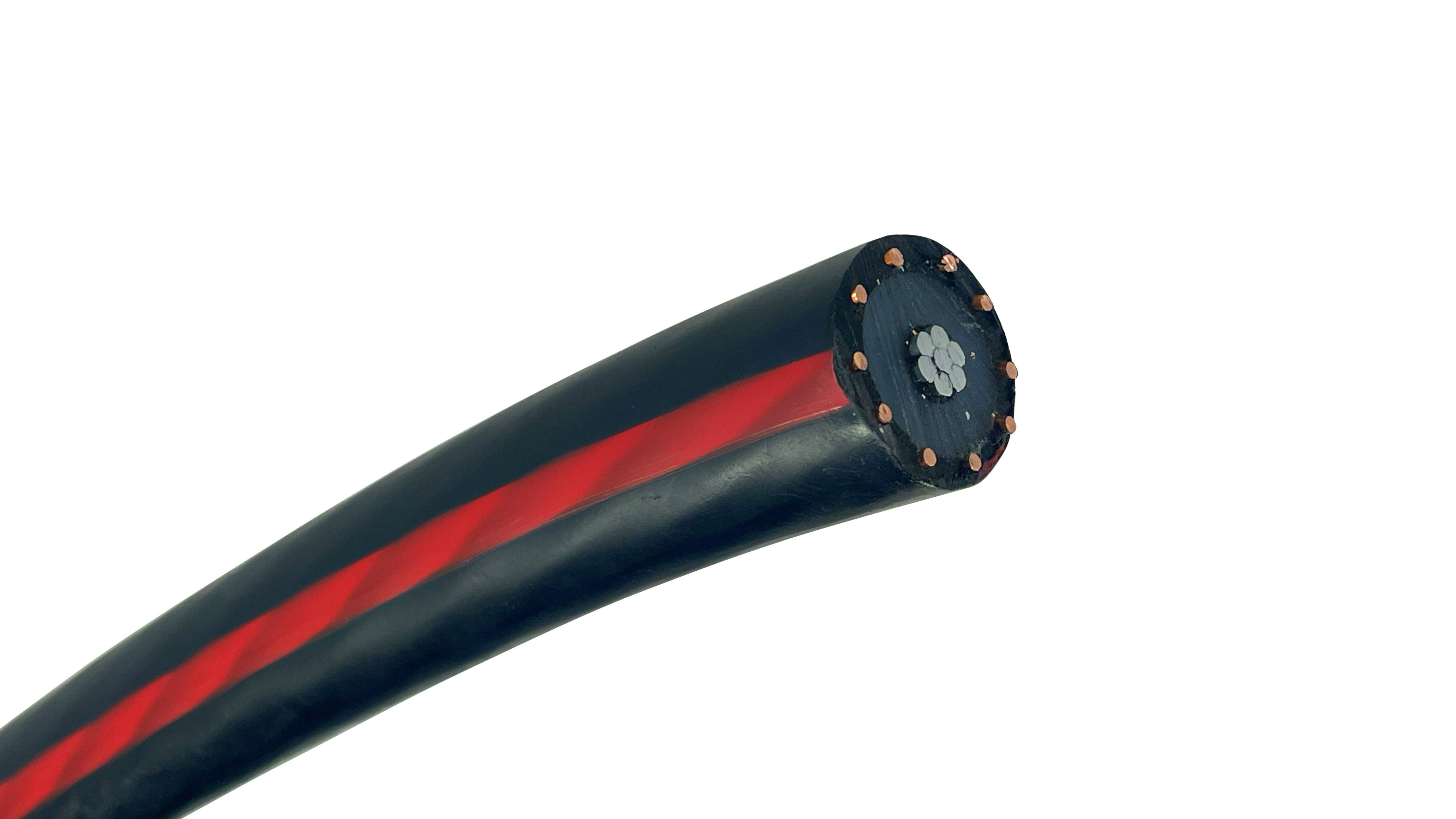

• 2 AWG 15kV Aluminum URD (Full Neutral): A standard for residential subdivisions and underground lateral runs.

• 4/0 AWG 25kV Aluminum URD (Full Neutral): Engineered for higher-voltage commercial developments and primary-side distribution.

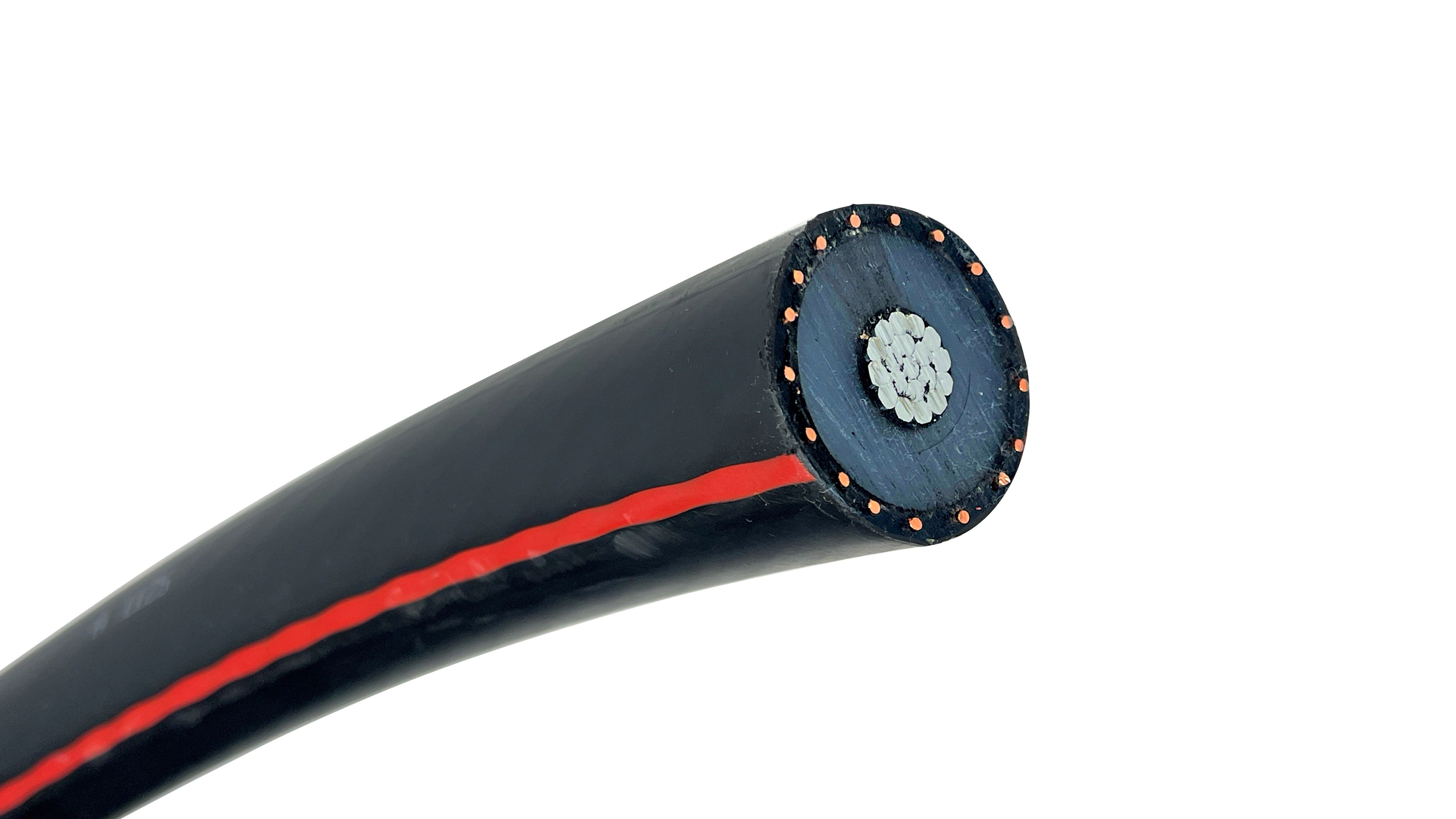

• 350 MCM 35kV Aluminum URD (100% Insulation): A heavy-duty "backbone" cable for large industrial loops and grid modernization.

• 1/0 AWG 35kV Aluminum URD (Full Neutral):A versatile primary distribution cable specifically designed for residential lateral circuits and pad-mounted transformer feeds in 35kV underground grids.

Key Differences: URD vs MV-105

While both are medium-voltage cables, it is important to choose the right one for your environment.

• Aluminum URD is designed for direct burial or underground ducts and features a concentric neutral.

• MV-105 with Copper Tape Shield is the standard for industrial substations and data centers where cables are often installed in trays or conduits.

How Wire America Can Help

When you source your primary cable from Wire America, you are investing in the long-term health of your electrical infrastructure:

• Technical Compliance: Our URD cable meets or exceeds specific ICEA and AEIC requirements.

• Full Range of Stock: We carry AWG sizes from 2 AWG, 2/0, 4/0, to 350 MCM in 15kV, 25kV, and 35kV ratings.

• Project-Ready Logistics: We provide exact cut-to-length services and full technical submittal packages for your inspectors and engineers.

Utility developers and contractors: Ready to secure your primary power grid? Shop our Aluminum URD Collection or speak with our medium-voltage specialists today at 833-268-8644.

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
