What is TR-XLPE Insulation?

TR-XLPE is a specialized form of insulation designed for medium-voltage underground cables. It is a "Tree-Retardant" version of standard Cross-Linked Polyethylene (XLPE) that contains a chemical additive to inhibit the growth of water trees—microscopic, tree-like branch patterns that can eventually cause electrical breakdown and cable failure.

The Deep Dive: Fighting the "Tree"

When a cable is buried underground, it is constantly exposed to moisture. Over time, the combination of high electrical stress and water can cause tiny "imperfections" in the insulation. These imperfections grow into a network of moisture-filled channels known as Water Trees.

1. Why "Trees" Are Dangerous

Think of a water tree like a slow-moving crack in a windshield. It starts small and invisible to the naked eye, but as it grows, it weakens the dielectric strength of the insulation. Once the "tree" grows large enough to bridge the gap between the conductor and the ground, it causes a short circuit (fault), leading to a massive power outage.

2. The TR-XLPE Advantage

Standard XLPE is a great insulator, but it is susceptible to this moisture-branching. TR-XLPE uses a patented additive that fills the microscopic voids in the molecular structure of the plastic. This "inhibitor" prevents moisture from branching out, effectively stopping the "tree" before it can start.

3. Longevity in the Ground

Cables with TR-XLPE insulation typically have a significantly longer service life than standard XLPE cables—often rated for 40+ years of continuous underground service. This is why it is the "gold standard" for utility companies and large industrial solar/wind farms.

4. 100% vs. 133% Insulation

You will often see TR-XLPE paired with an "Insulation Level":

• 100% Level: Used when the system has a fast-acting protective relay (clears faults in <1 minute).

• 133% Level: Used for systems where a fault might take longer to clear (up to 1 hour). It provides a thicker "wall" of TR-XLPE for extra safety.

  Wire America Pro-Tip: If your customer is installing a primary power loop (5kV to 35kV) in a high-moisture area or anywhere without conduit, TR-XLPE is a non-negotiable requirement. It is the difference between a cable that lasts a lifetime and one that fails in 10 years.

How Wire America Can Help

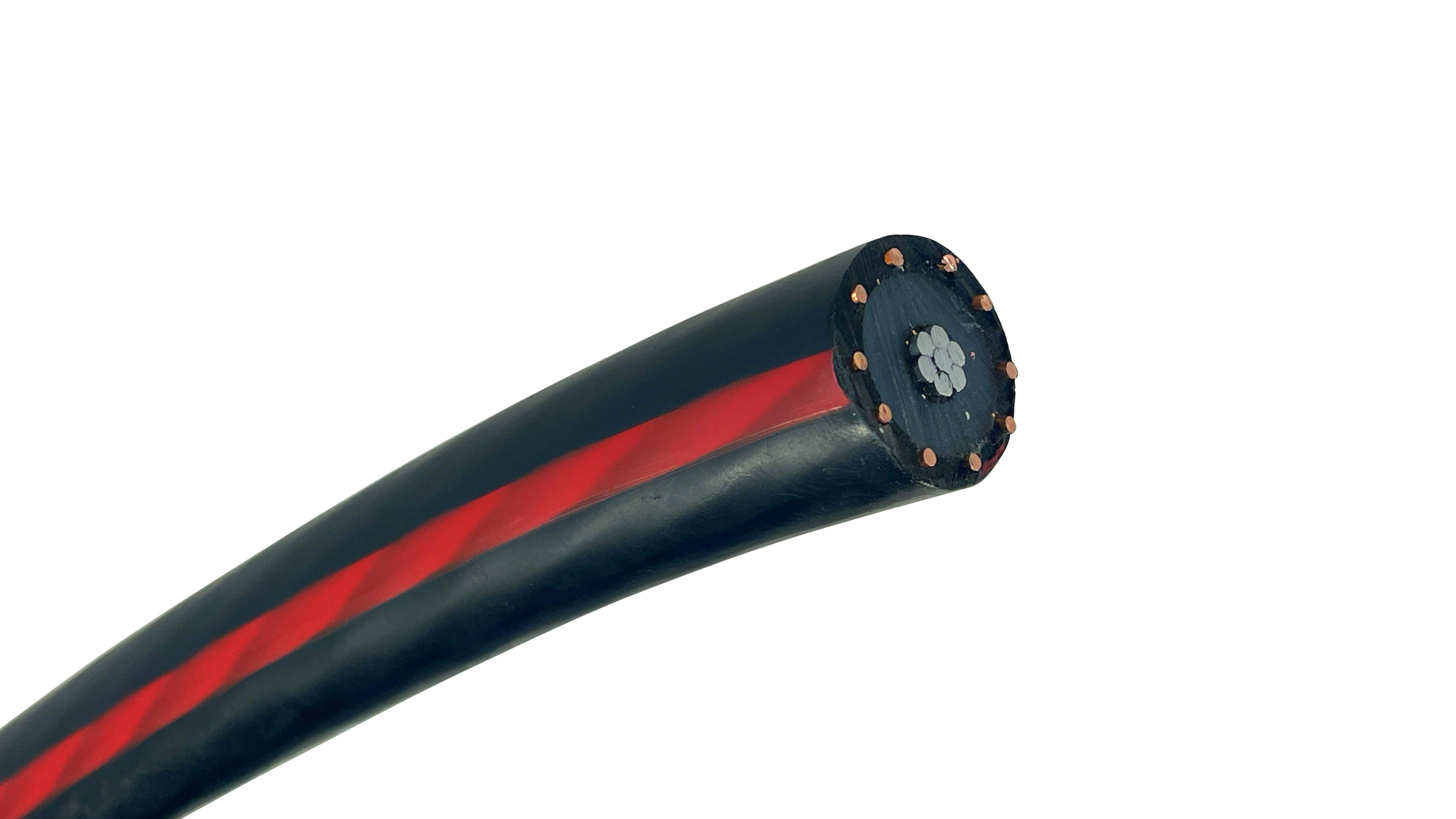

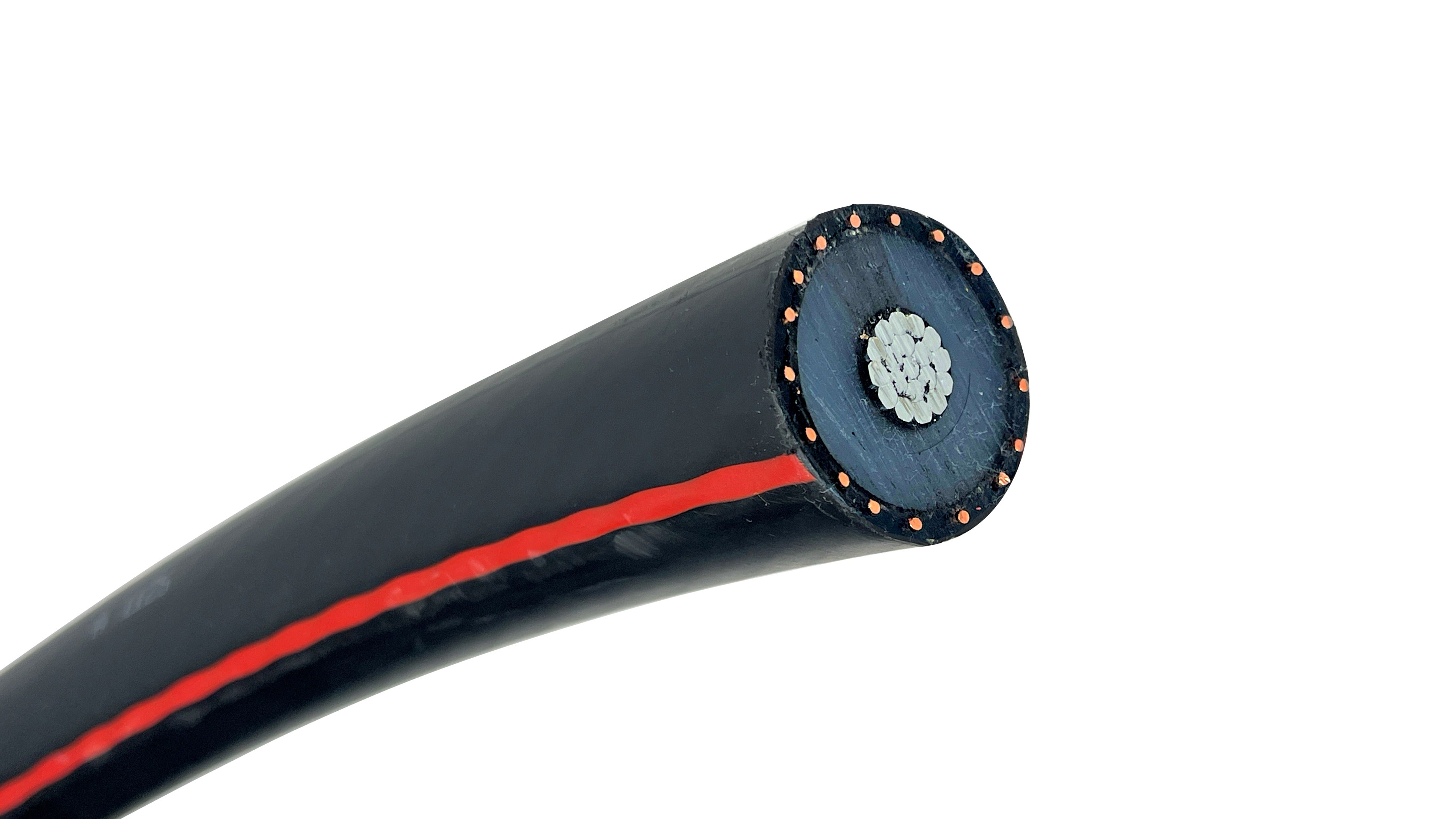

We supply a varierty of TR-XLPE Aluminum URD 15kv-25kV Cables designed to withstand the harshest underground conditions. We understand the high stakes of primary power distribution, which is why we only source cables that meet or exceed AEIC and ICEA standards. From custom cuts to technical support, we help you build a power grid that lasts.
