What is a Copper Tape Shield? A Technical Deep Dive into MV-105 Cable

Understanding Copper Tape Shield

A Copper Tape Shield consists of a thin ribbon of annealed copper—typically 5 mils thick—applied helically (wrapped in a continuous spiral) over the semi-conductive insulation shield of an MV-105 cable. It acts as a grounded "Faraday Cage," containing the electrical field within the cable and providing a safe path for charging and fault currents.

The Deep Dive: The Faraday Cage

In Medium-Voltage power systems (5kV to 35kV), the copper tape shield is the "invisible bodyguard" of the cable. While the center conductor carries the heavy load, the tape shield manages the intense electrical stress that high voltage creates.

1. Stress Control & Uniformity

At high voltages, electricity exerts massive pressure on the insulation. Without a shield, this stress would concentrate at specific points, causing Partial Discharge—an internal sparking that slowly eats the insulation from the inside out. By wrapping the tape with a precise overlap, we ensure the electrical field is perfectly uniform, preventing "hot spots" and catastrophic blowouts.

2. The Return Path for Charging Current

Medium-voltage cables naturally act like a giant capacitor, holding a static-like charge on the surface of the insulation. The copper tape shield provides a constant, low-resistance path to "drain" this charge to the ground. Without it, the outside of the cable could become energized, posing a lethal shock risk to anyone nearby.

3. Interference Protection (EMI)

In industrial settings, high-voltage lines can create electrical "noise" that messes with nearby control systems or communication lines. The solid copper wrap acts as a barrier, shielding sensitive electronic equipment from electromagnetic interference (EMI) generated by the power load.

4. 5-Mil vs. 10-Mil Tape

• 5-Mil (Standard): The industry standard for most MV-105 applications. It offers maximum flexibility for pulling through complex conduit runs while providing 100% optical coverage.

• 10-Mil (Heavy Duty): Used in specific industrial environments where a higher "fault current" rating is required, though it makes the cable stiffer and harder to bend.

Wire America Pro-Tip: When terminating MV-105, the copper tape is the most delicate part of the process. Always use a professional Termination Kit and ensure the tape is cut cleanly with no "burrs" or sharp edges. A single jagged piece of copper tape can create a point of electrical stress that leads to a failure at the lug within months of installation.

Wire America: Your Industrial Power Partner

We supply MV-105 with precision-wrapped Copper Tape Shields designed for 5kV, 15kV, and 35kV applications. From data centers to heavy manufacturing, we offer the technical expertise and cut-to-length service to ensure you get exactly the protection your grid requires.

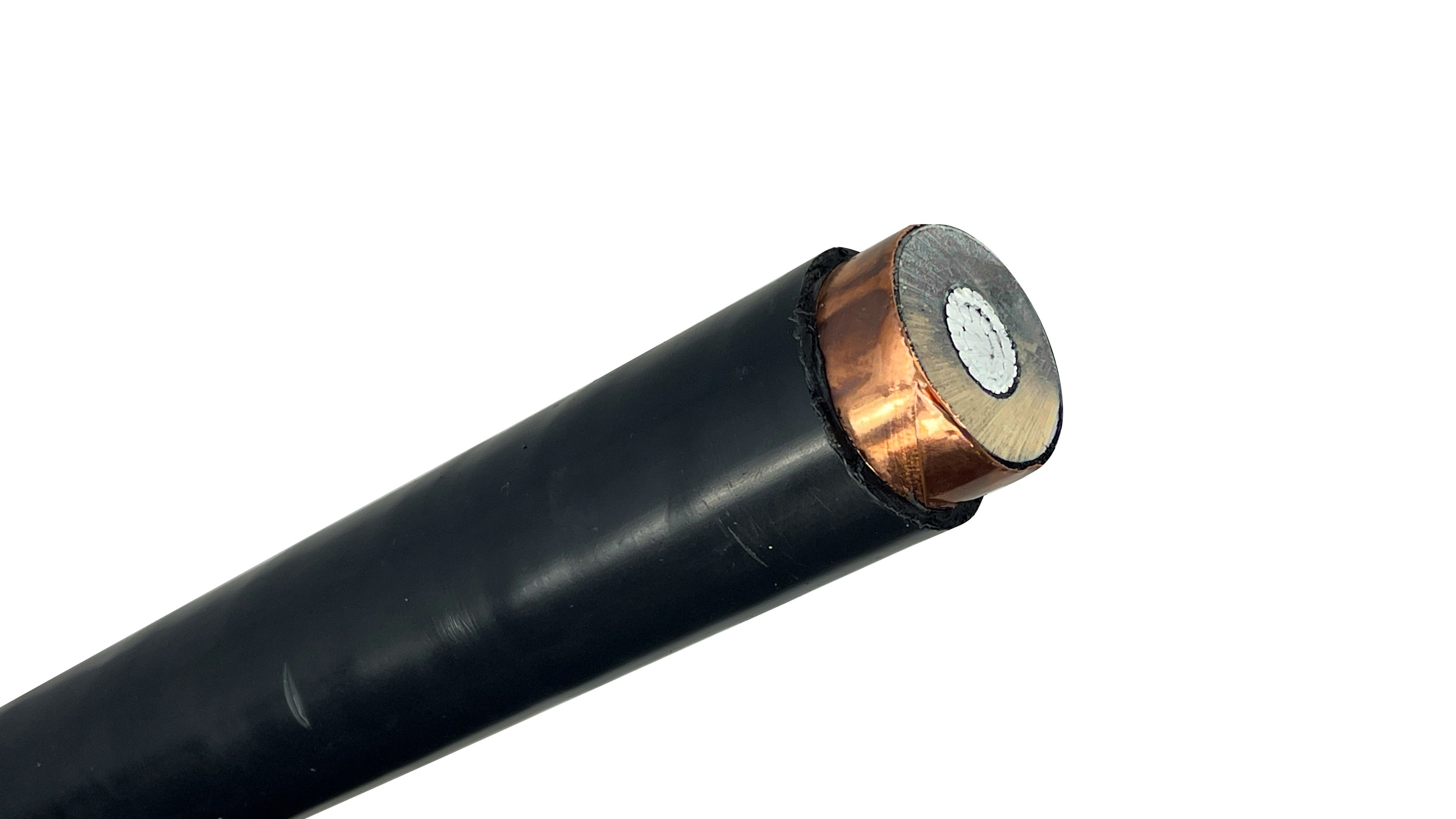

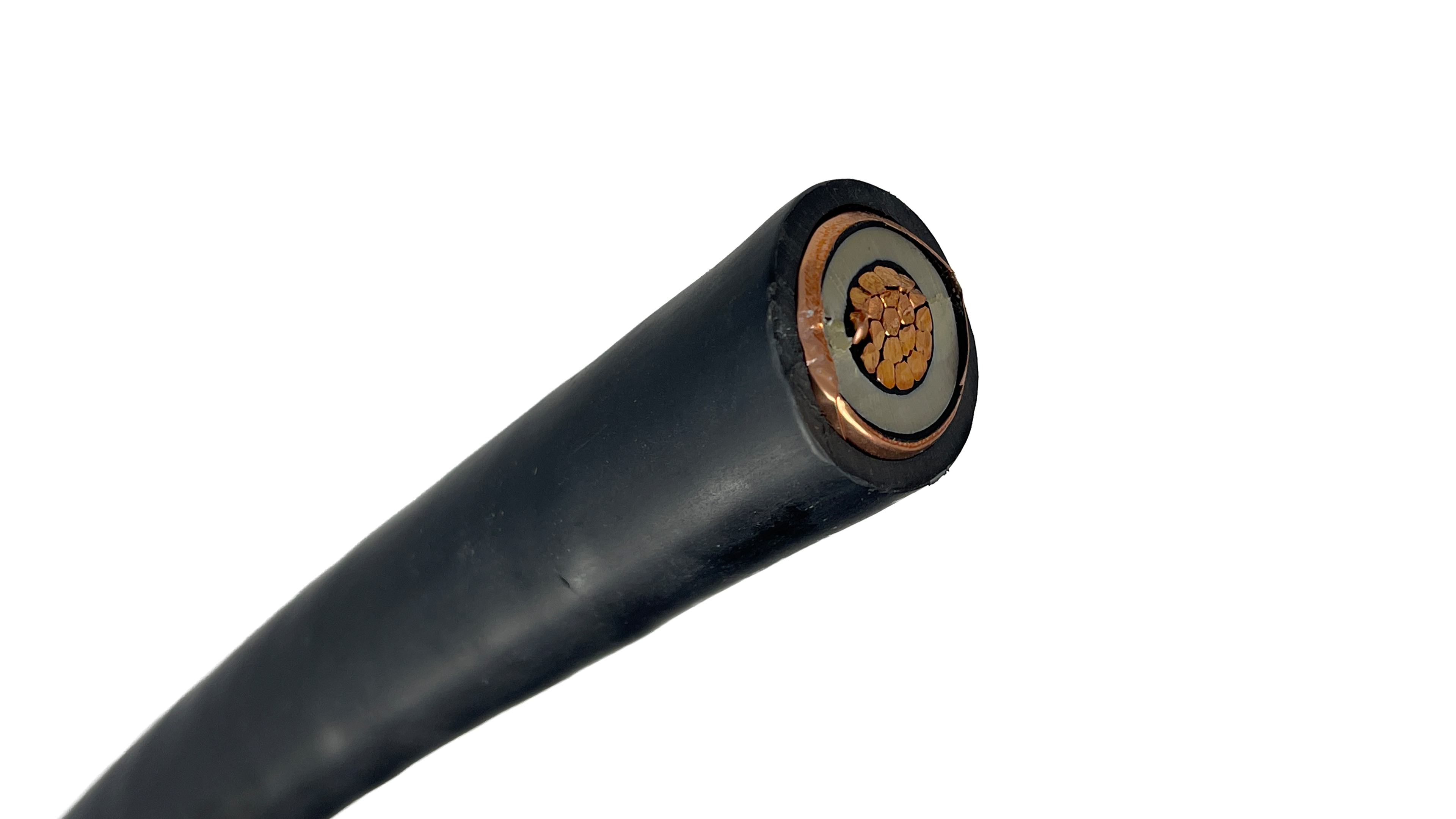

We offer Medium Voltage MV-105 Cable in both aluminum and copper.
