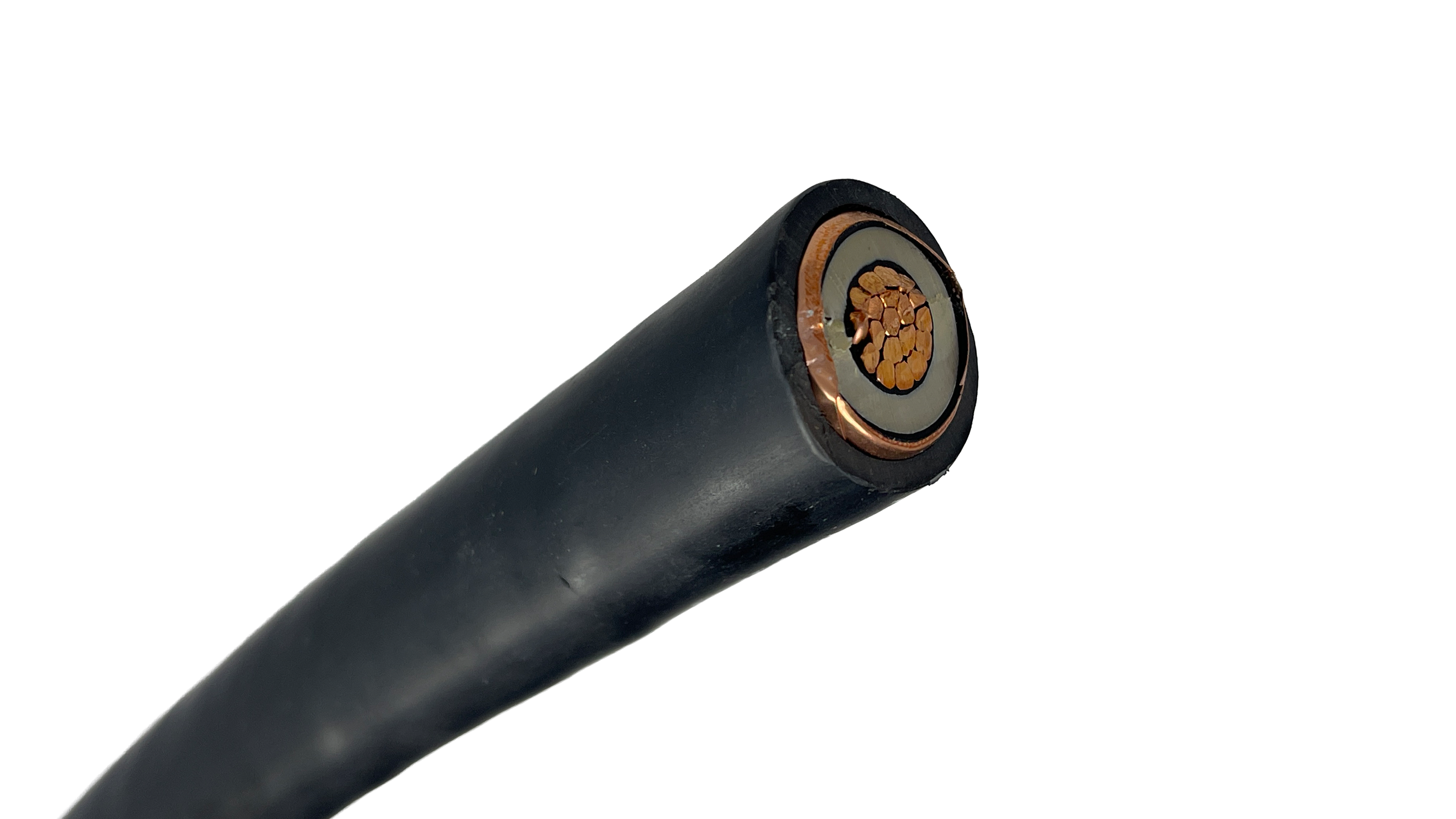

What is a Concentric Neutral in Power Cables?

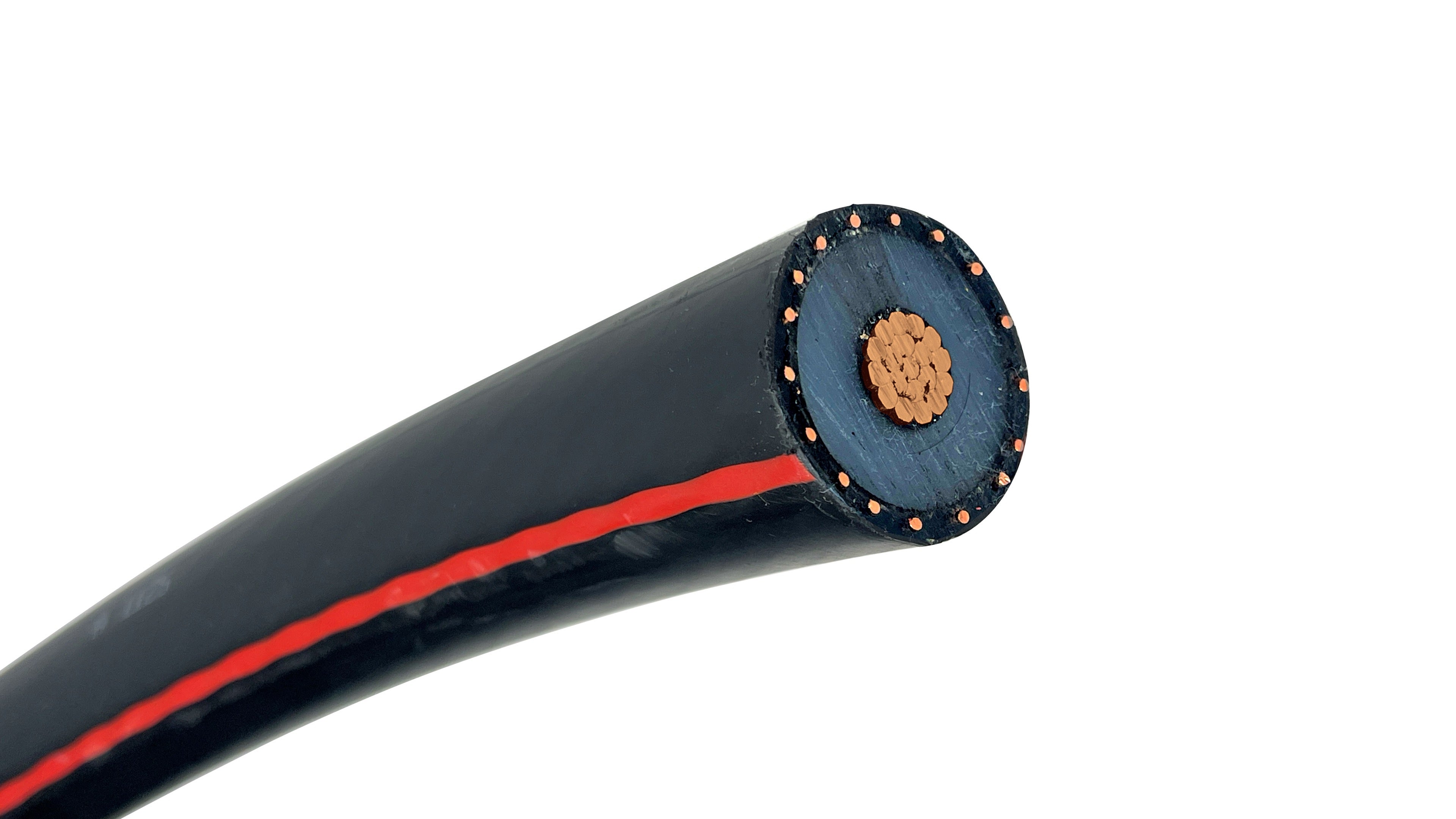

A Concentric Neutral consists of a series of bare copper wires applied helically (wrapped in a spiral) over the insulation shield of a medium-voltage primary underground cable. It serves a dual purpose: acting as the return path for the electrical current and providing a grounded safety layer for the cable.

The Safey Cage

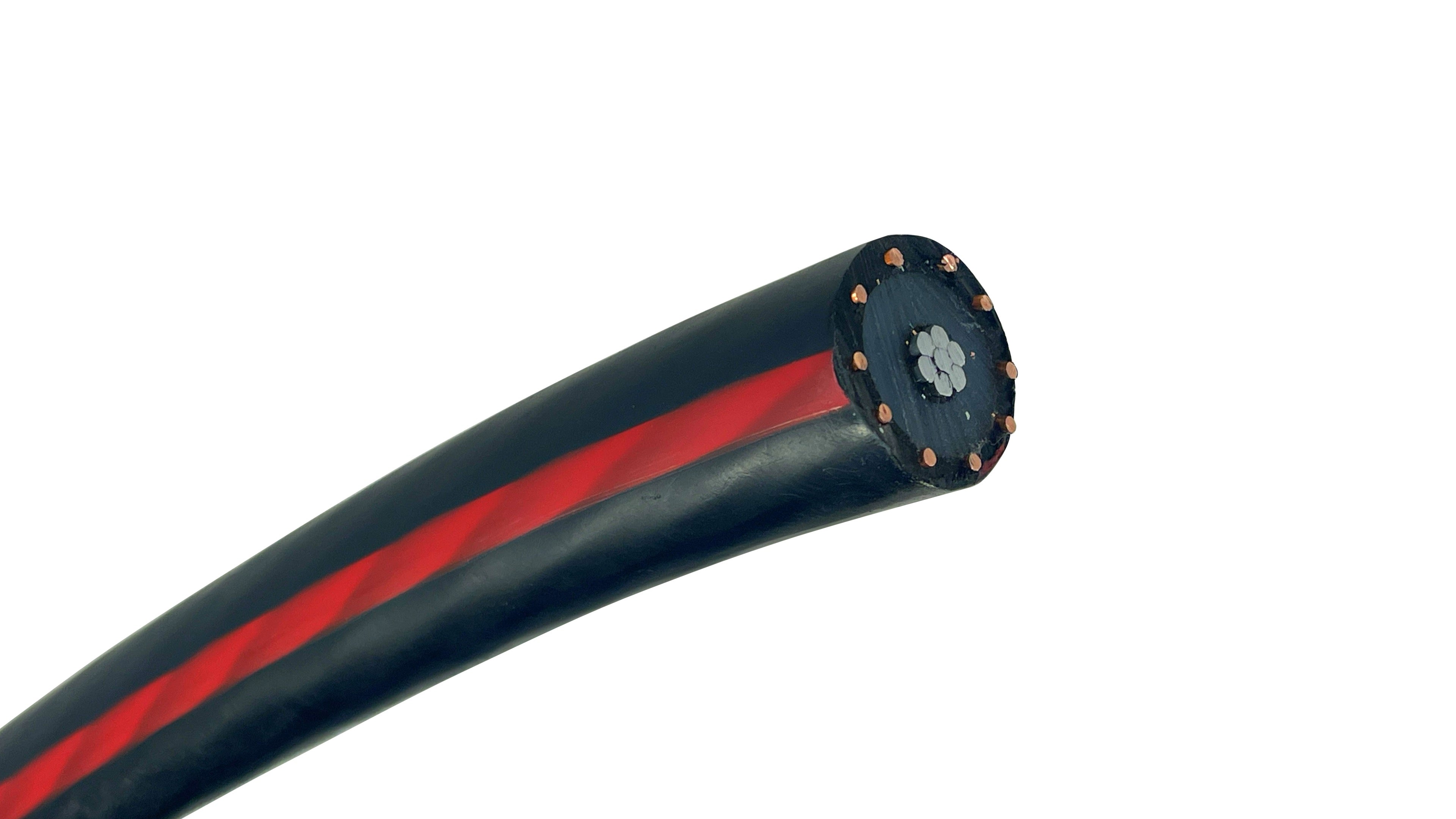

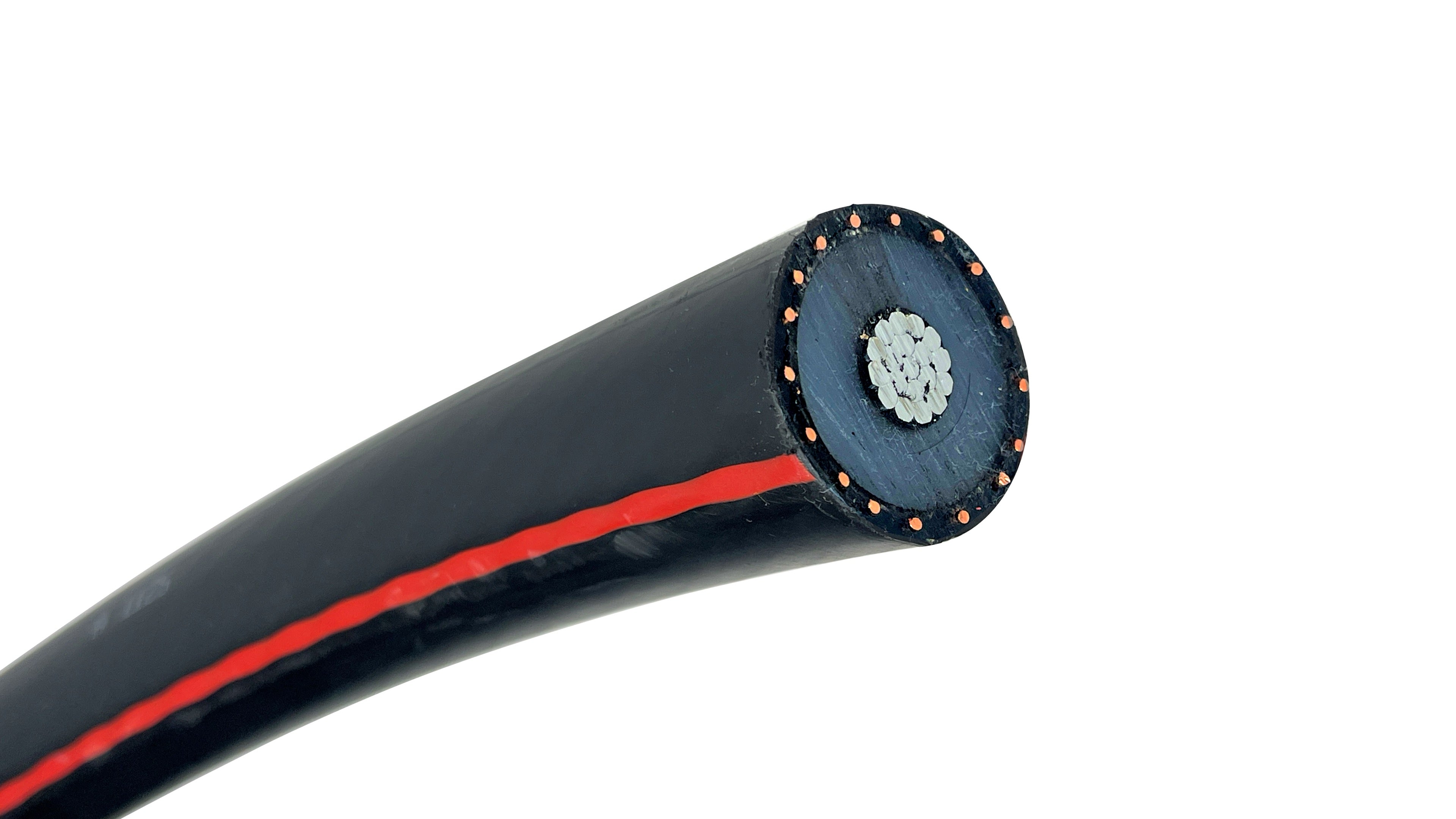

In Aluminum URD Primary Cable, the concentric neutral is one of the most visible and important features. Unlike a standard "ground wire" inside a jacket, these wires are on the outside of the core, but usually underneath an outer "jacket" (or left bare in some utility configurations).

1. The Return Path

In a single-phase underground system, the electricity goes out through the center aluminum conductor. The Concentric Neutral provides the path for that electricity to return to the transformer. Without it, the circuit wouldn't be complete.

2. Uniform Stress Distribution

By wrapping the wires evenly around the entire circumference of the insulation, the concentric neutral helps maintain a uniform electrical field. This prevents "hot spots" in the insulation, which significantly extends the life of the cable.

3. The Safety Factor

The concentric neutral acts as a "grounded shield." If a backhoe or a shovel accidentally strikes the cable, the tool will hit the grounded neutral wires first. This triggers the circuit breaker immediately, protecting the operator from the high-voltage conductor in the center.

4. Full Neutral vs. 1/3 Neutral

• Full Neutral: The total "circular mil area" (the amount of copper) in the neutral wires is equal to the size of the center conductor. This is common in single-phase residential runs.

• 1/3 Neutral: The neutral wires only have about one-third the capacity of the center conductor. This is used in three-phase systems where the load is balanced and less return capacity is needed.

Wire America Pro-Tip: When ordering URD, always check the neutral count. A cable might have the right gauge for the power, but if the concentric neutral is undersized for your specific utility's requirements, the inspector will fail the job before it's even buried.

How Wire America Can Help

We provide Aluminum URD 15kV-35kV with Concentric Neutrals that meet the rigorous demands of modern power grids. Whether you need a full neutral for a single-phase extension or a 1/3 neutral for a large-scale primary loop, we offer the technical expertise and cut-to-length service to keep your project moving safely.
