What's the Difference Between 100% vs. 133% Insulation?

Optimizing Medium-Voltage Systems: 100% vs 133% Insulation Levels

Choosing between 100% and 133% insulation levels is a critical decision in the design of any medium-voltage power system. While these two options may appear identical on a reel, they represent two distinct approaches to system reliability and voltage stress management.

Matching your cable’s insulation to your system’s "Clearing Time" is the most effective way to ensure a precision-engineered installation. Understanding how these levels support different grounding configurations and installation footprints allows for a more strategic choice that balances performance and durability. In this guide, we explore the technical logic behind these standards and how to select the ideal safety factor for your specific high-voltage requirements.

Engineering for Reliabilty

1. Aligning with Your Protection Scheme

The primary difference between these levels is how long the cable is expected to handle voltage stress during a ground fault:

• 100% Level (The Efficient Choice): Designed for grounded systems with rapid-response protection. This level is the ideal match for modern facilities where faults are cleared in under one minute, offering a streamlined, high-performance solution.

• 133% Level (The Enhanced Security Choice): Specifically engineered for ungrounded or low-resistance grounded systems. It provides an added "insulation cushion" for systems designed to remain operational during a fault for up to one hour, allowing maintenance teams the necessary time for an orderly transition.

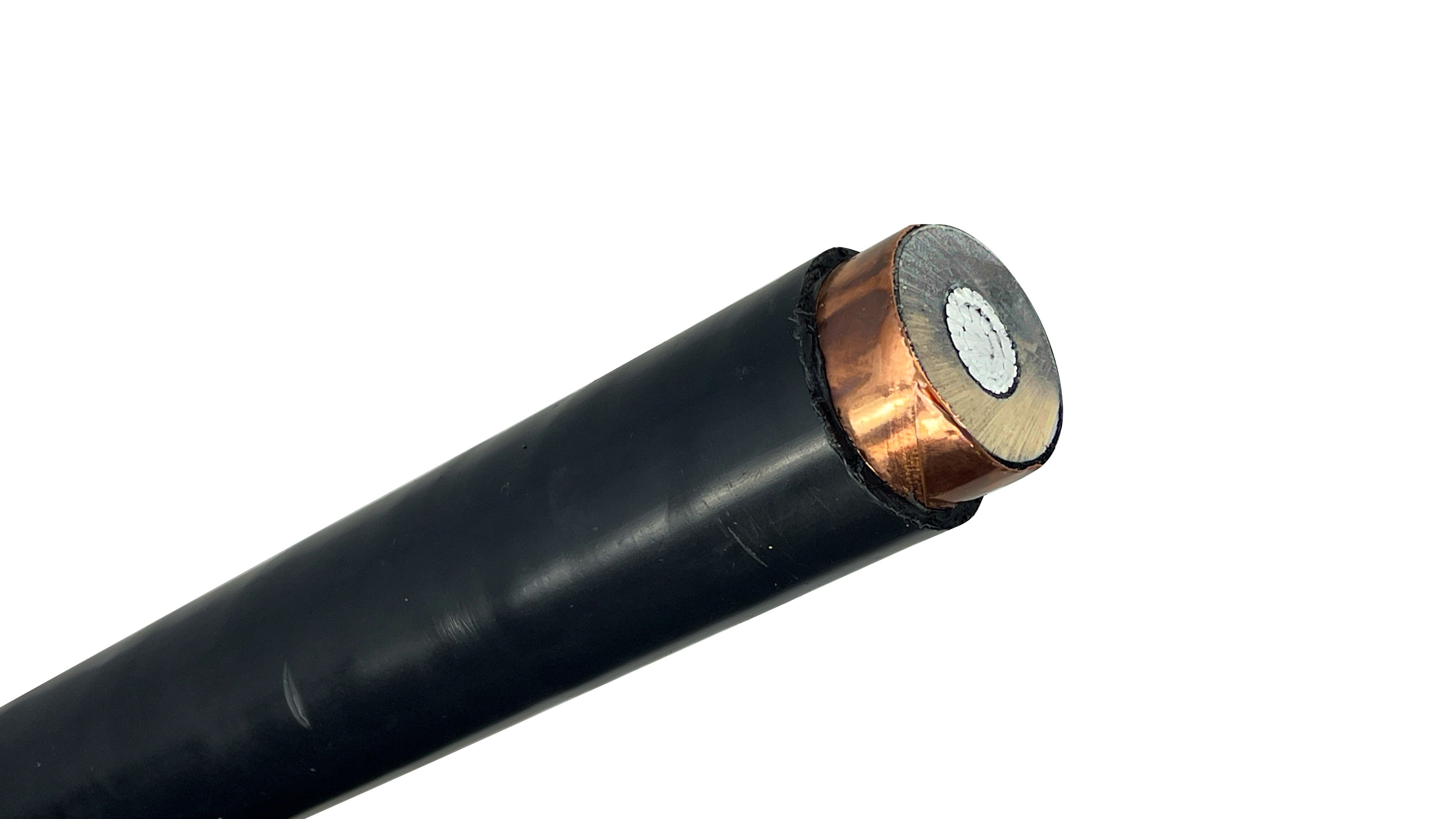

2. Engineering for the Footprint

Because 133% insulation is slightly thicker to provide that extra hour of protection, it impacts the physical profile of the cable:

• Dielectric Strength: The added thickness in 133% cable offers a higher dielectric safety factor, which is often preferred in high-load industrial environments.

• Installation Planning: When selecting 133%, it is important to account for the slightly larger Overall Diameter (O.D.). Verifying your conduit fill ratios ensures a smooth, low-tension pull during the installation phase.

3. Systems Longevity and Selection

• Standard Grounded Systems: 100% insulation is the industry workhorse for the majority of commercial and grounded industrial projects.

• Mission-Critical Infrastructure: For facilities where power continuity is paramount—such as data centers, hospitals, or continuous-process manufacturing—133% is often specified as "infrastructure insurance" to ensure the cable remains stable even under extended stress.

Expert Pro-Tip: To ensure a seamless inspection and a successful field test, always verify your system's relay timing before ordering. Aligning the insulation level with the engineer’s protection scheme ensures your infrastructure will perform as designed for decades to come.

How Wire America Can Help

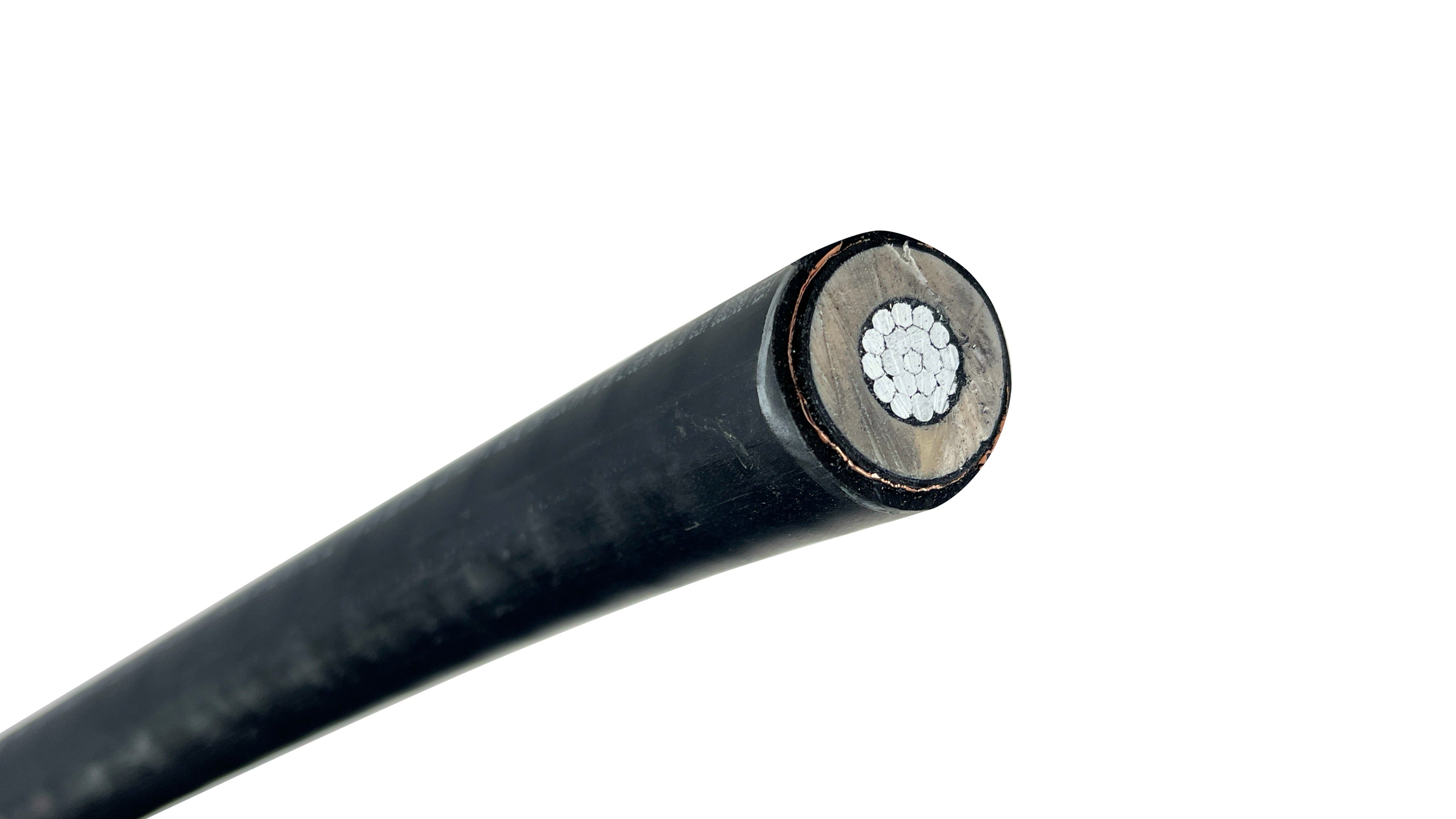

We provide a comprehensive selection of MV-105 and Aluminum URD cable in both 100% and 133% insulation levels. Our medium-voltage products are available in a wide variety of sizes—from standard commercial gauges (2 AWG) to large-scale industrial MCM sizes (750MCM).

All of our cables are available cut-to-length to meet your exact project specifications, helping you reduce waste and simplify on-site handling. With our commitment to technical expertise and fast shipping nationwide, we ensure you have the precise materials you need to keep your project moving forward.

Need a quote or the specific technical data sheet for your inspector or engineer? Contact our specialists at 833-268-8644
