Bonding Conductors: NEC Code, Safety, and Materials

What are Bonding Conductors?

While the terms "grounding" and "bonding" are often used interchangeably in the field, they serve two very different masters. Understanding the difference isn't just about passing inspection—it’s about ensuring the safety of every person who touches a metal enclosure or faucet in the building.

Bonding vs. Grounding: What's the Difference?

• Grounding (The Earth Path): This is the intentional connection of a circuit to the earth. It provides a path for lightning or high-voltage surges to dissipate safely into the ground.

• Bonding (The Safety Path): This is the act of connecting all non-current-carrying metal parts (conduits, enclosures, pipes) together to ensure they are at the same electrical potential.

The "Moat" of Safety: In the event of a fault, the bonding conductor ensures the fault current has a low-impedance path back to the source to trip the breaker immediately. Without a bond, a metal pipe could stay "live" indefinitely, waiting for someone to touch it.

NEC Requirements for a Reliable Bond

To meet National Electrical Code (NEC) standards, a bonding conductor must be:

1. Low Impedance: It must be sized correctly to carry a massive fault current for a short time. Sizing isn't a guess—refer to NEC Table 250.122 for equipment grounding or Table 250.102(C)(1) for bonding jumpers.

2. Permanent & Continuous: Connections must be mechanically secure. This is why we recommend high-quality Bare Copper or Green Insulated THHN.

3. Intersystem Bonding: Per NEC 250.94, you must provide a means for connecting "intersystem" bonding conductors for satellite dishes, telephone lines, and cable TV to the main electrical grounding system.

Comon Application for Bonding Conductors

• Service Equipment: Connecting the neutral bar to the ground bar in your main panel (The Main Bonding Jumper).

• Water & Gas Pipes: Ensuring metal plumbing systems don't become accidentally "live" due to a wiring fault.

• Structural Steel: Bonding the metal skeleton of a building to the electrical grounding system to prevent "stray voltage."

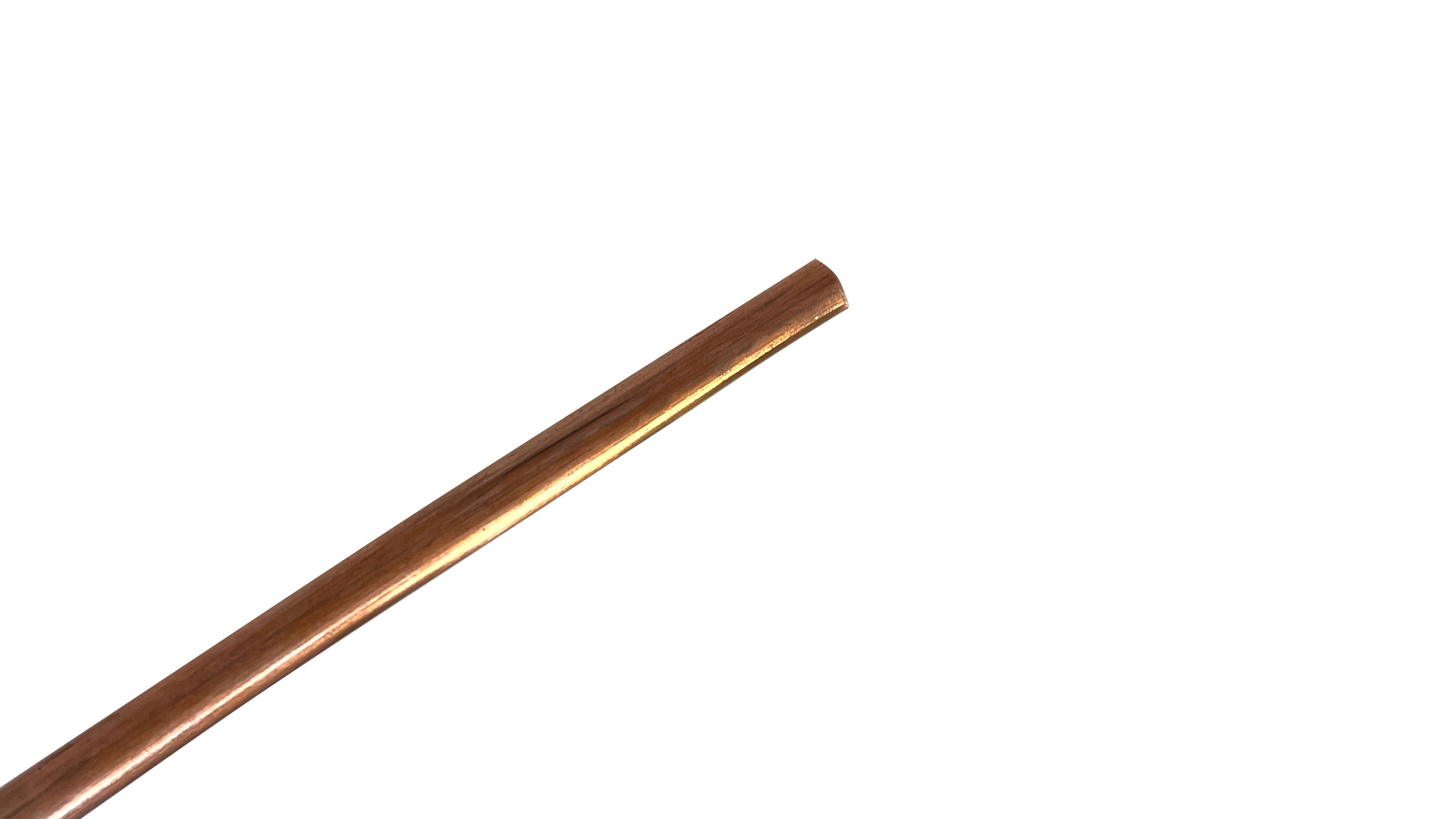

• Pool & Spa (Equipotential Bonding): One of the most critical uses. We recommend #8 Solid Bare Copper to create a safety grid that ensures swimmers never become the path to ground.

Recommended Materials for Bonding

Because bonding is about safety, you shouldn't cut corners. We offer the three most common bonding wires by the foot with no minimums:

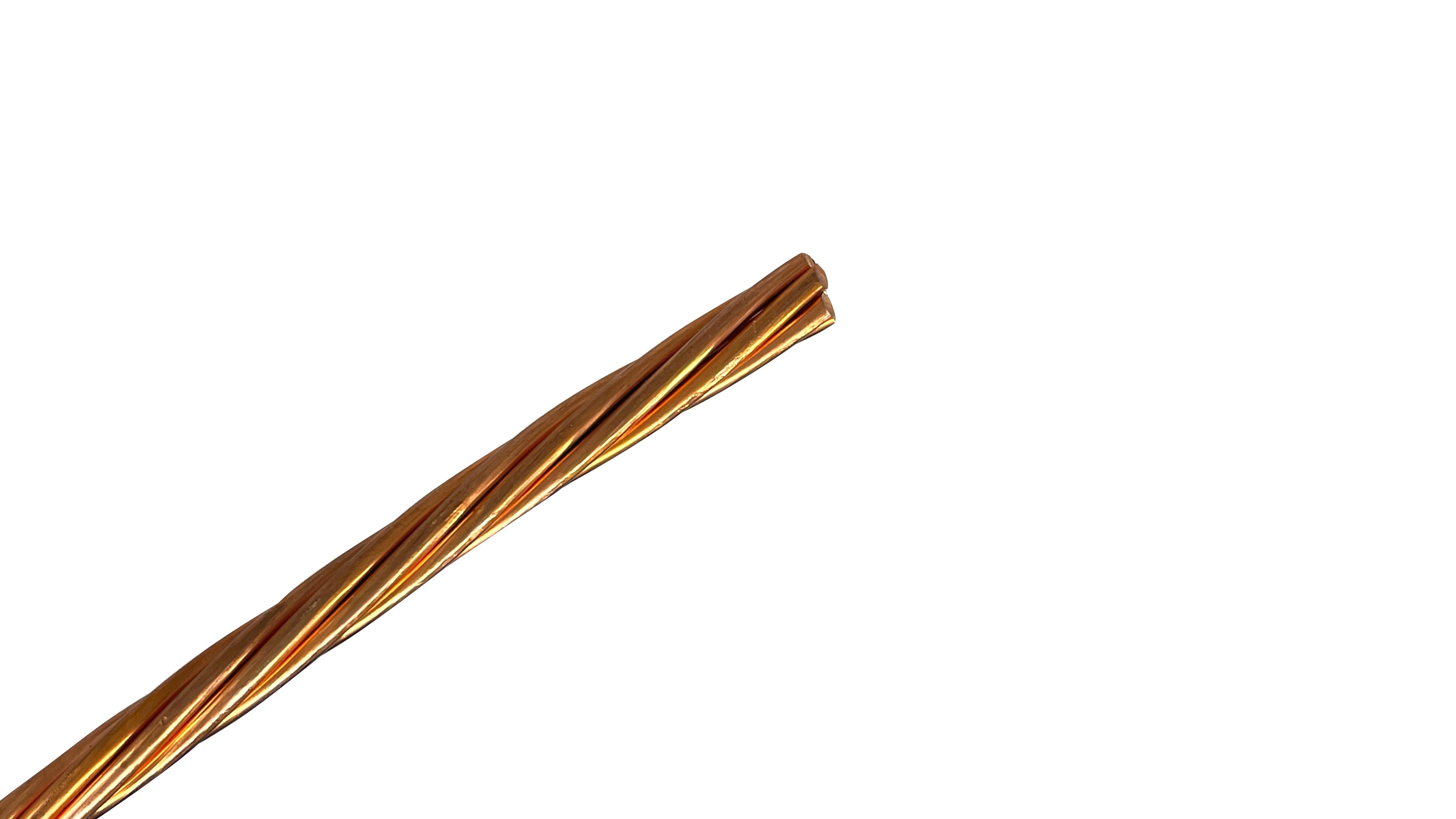

• Bare Copper Wire: The industry standard for residential and commercial grounding and bonding.

• Green Insulated THHN: Used when the bonding conductor needs protection in conduit or must be easily identified.

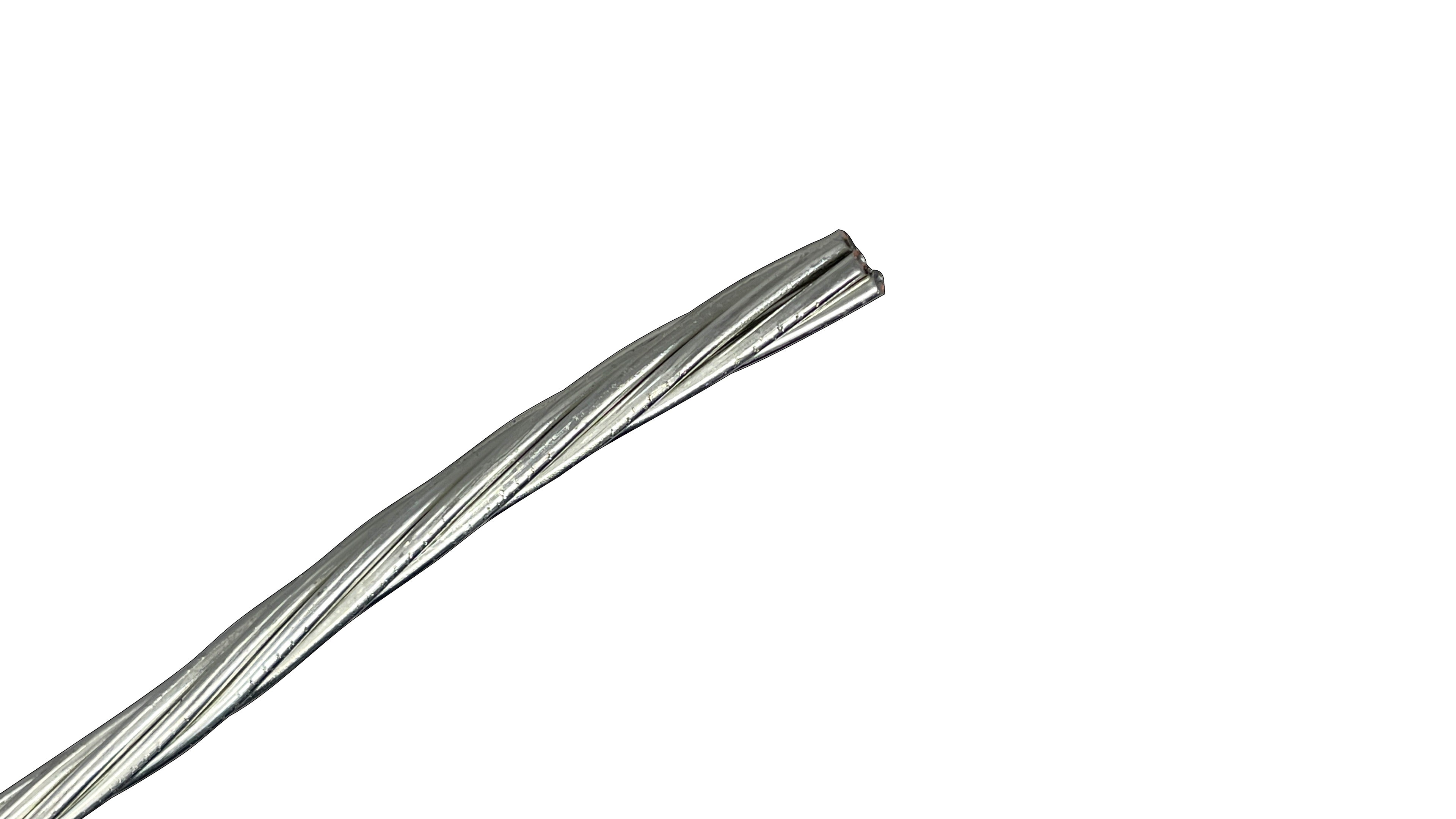

• Tinned Copper: The premium choice for industrial or marine bonding where moisture and corrosion are constant threats.

The Wire America Advantage

At Wire America, we believe in providing more than just material—we provide the technical confidence to get the job done right.

• Precision Cuts: We cut most bonding wire to the exact foot, saving you money on scrap.

• Fast Fulfillment: We offer expedited shipping to keep your project on schedule.

• Expert Support: Not sure if you need #6 or #4 for your water pipe bond? Talk to a Real Person at 833-268-8644.


Official Standards & Technical Resources

• NFPA 70: National Electrical Code (NEC) Article 250

• IEEE Standard 142: Recommended Practice for Grounding of Industrial and Commercial Power Systems

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
