What is a Foil Shield?

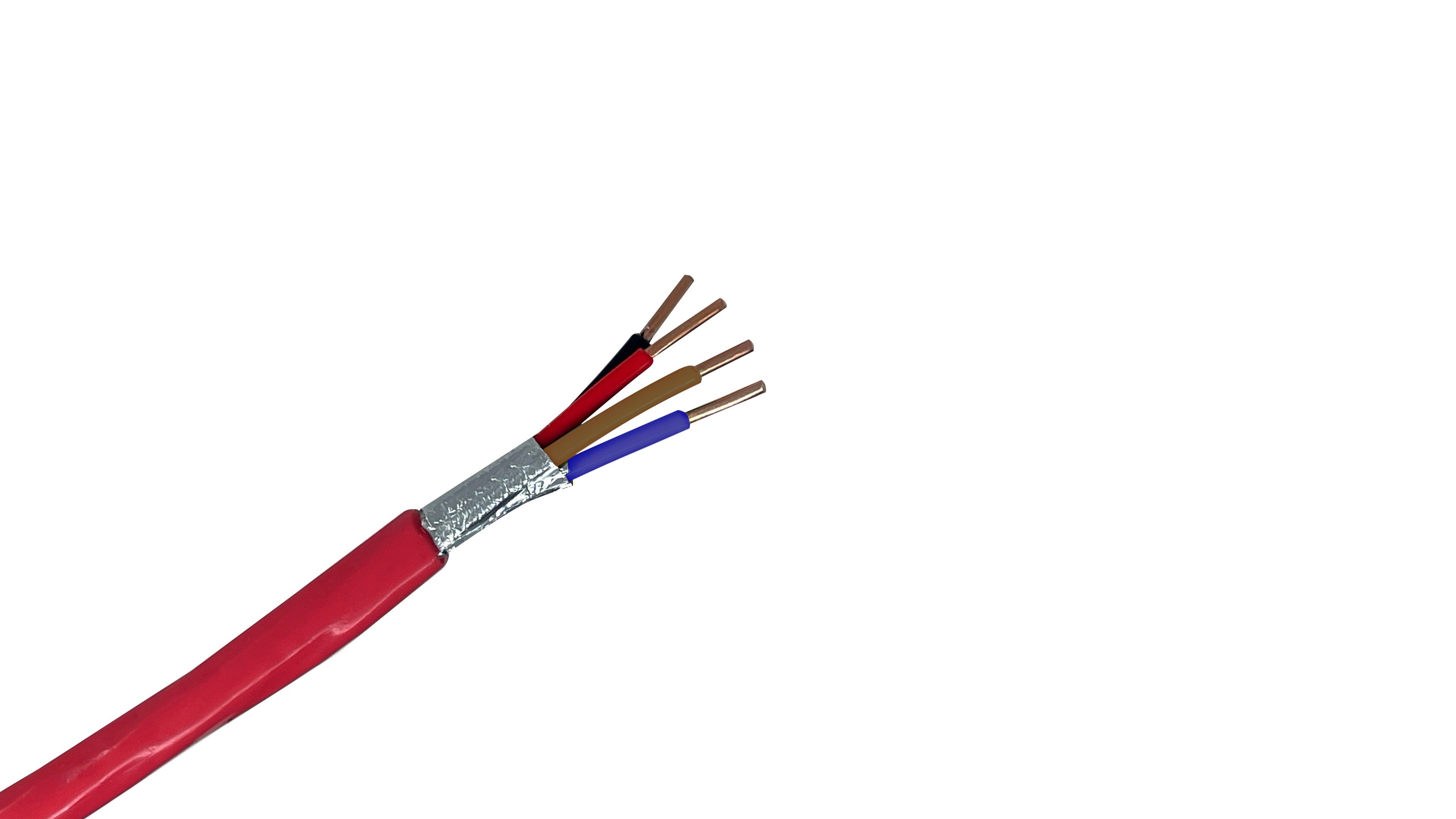

A Foil Shield is a thin layer of aluminum or copper foil, typically laminated to a polyester backing (like Mylar®), wrapped around the conductors of a cable. Its primary purpose is to provide 100% electromagnetic interference (EMI) coverage, protecting sensitive signals from high-frequency "noise" and crosstalk.

The Deep Dive: Precision Protection

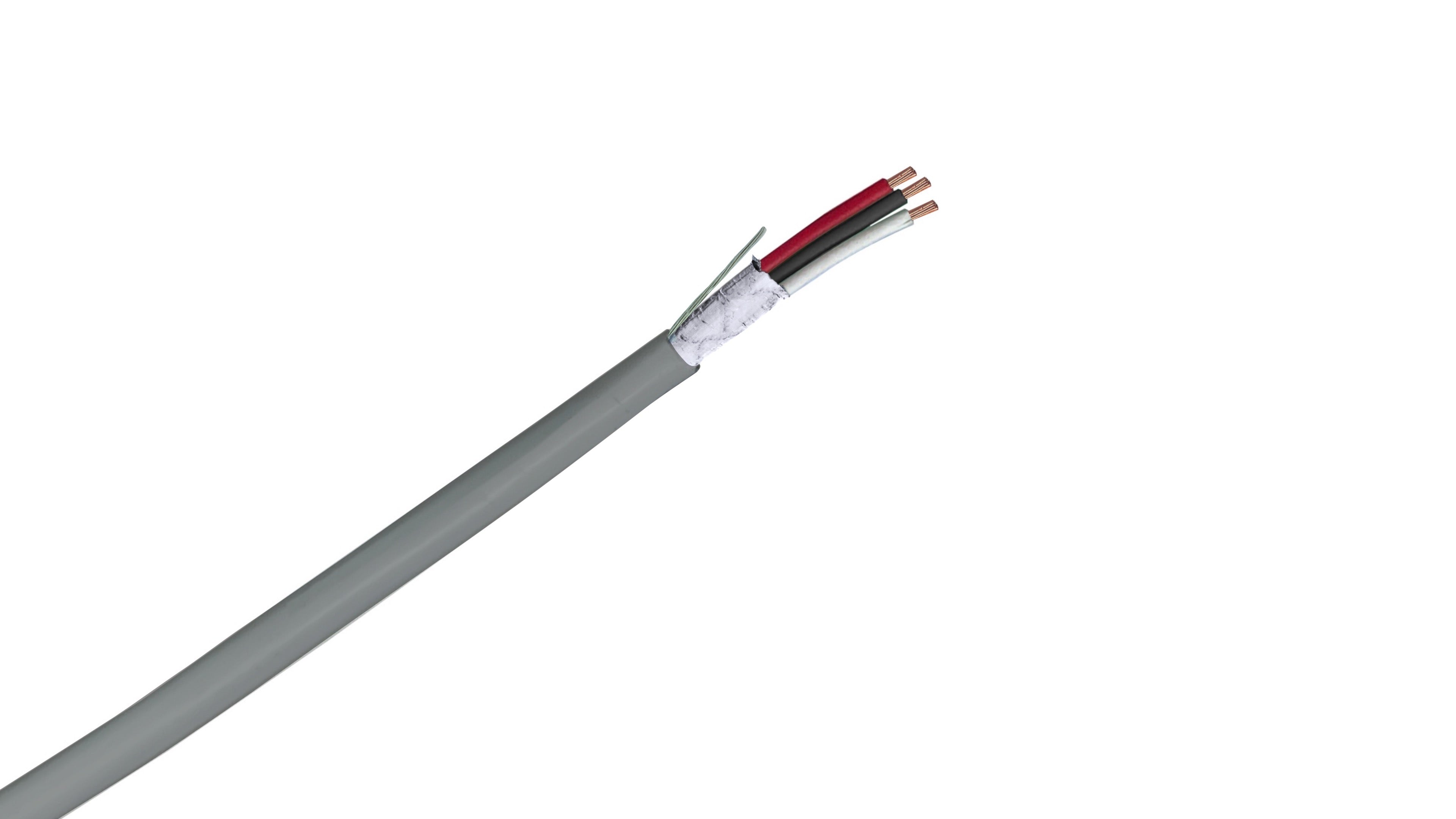

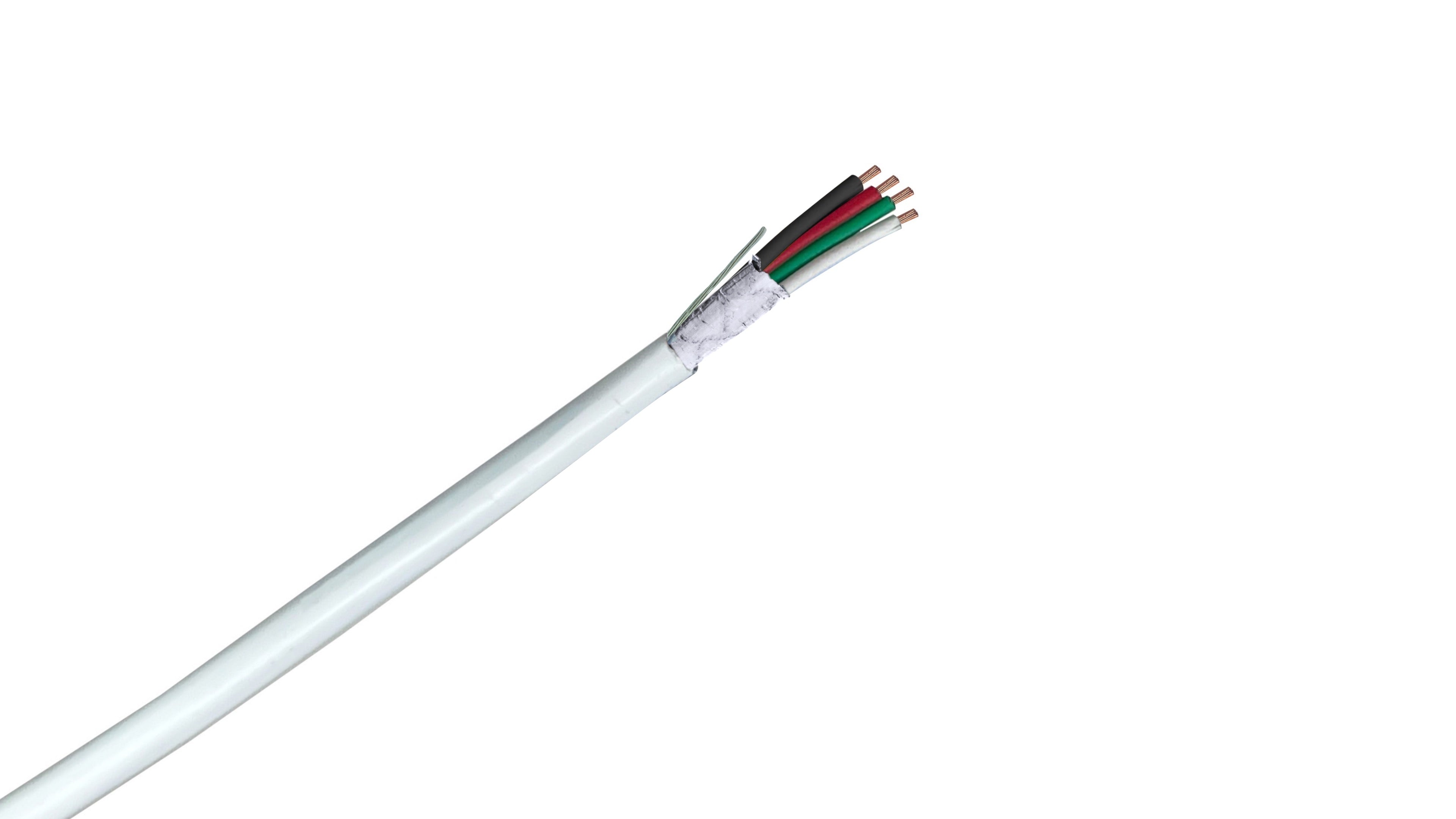

In the modern industrial environment—filled with Wi-Fi signals, motors, and radio frequencies—the Foil Shield acts as a barrier that keeps "good signals in and bad noise out." It is the standard shielding method for Instrumentation Cable, Security Cable, Fire Alarm Cable and much more...

1. 100% Physical Coverage

Unlike a "Braid Shield" (which is a mesh of woven wires that can have tiny gaps), a Foil Shield is a solid wrap. This provides 100% coverage, ensuring that high-frequency electromagnetic waves cannot "leak" through to the copper conductors.

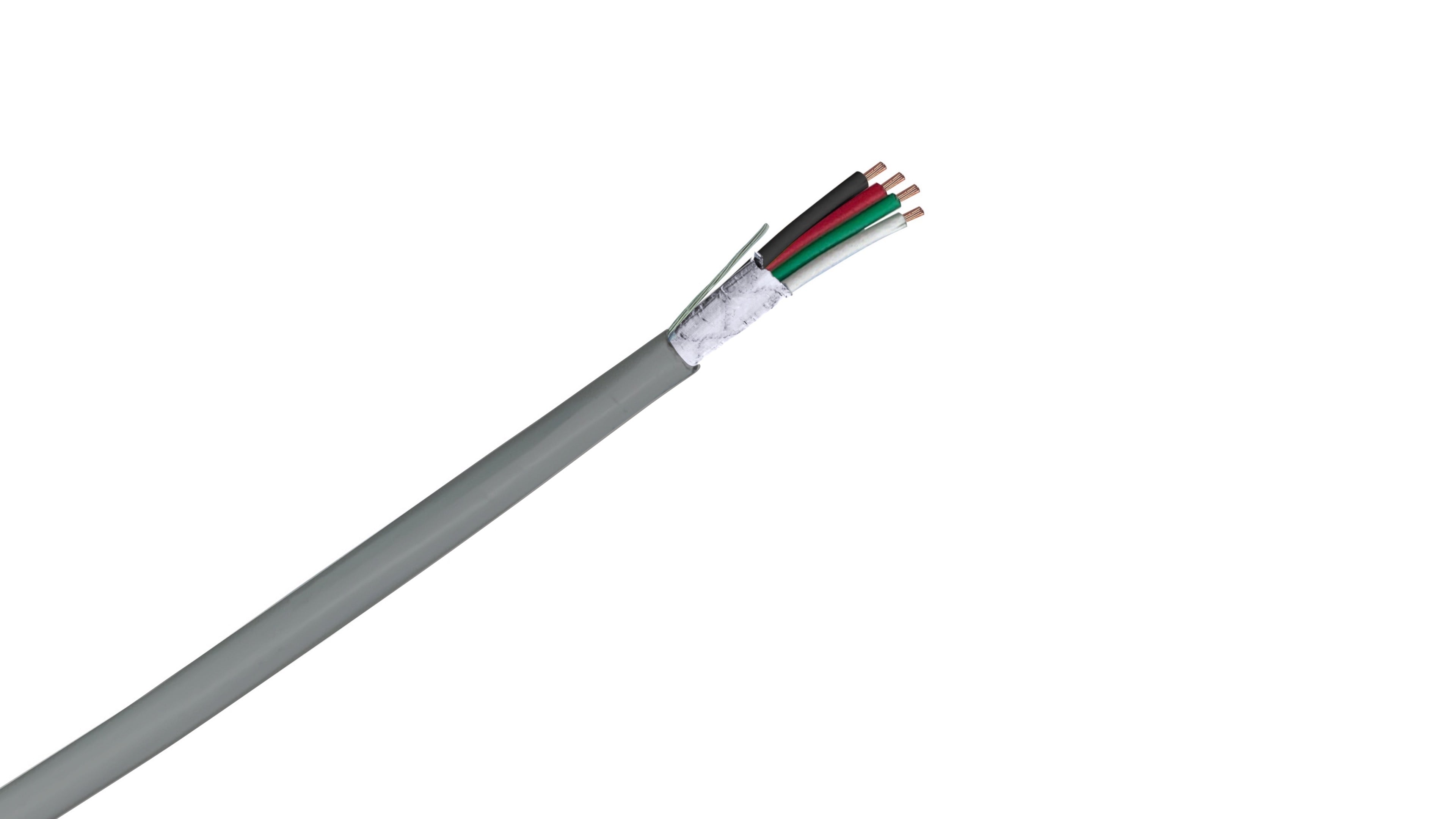

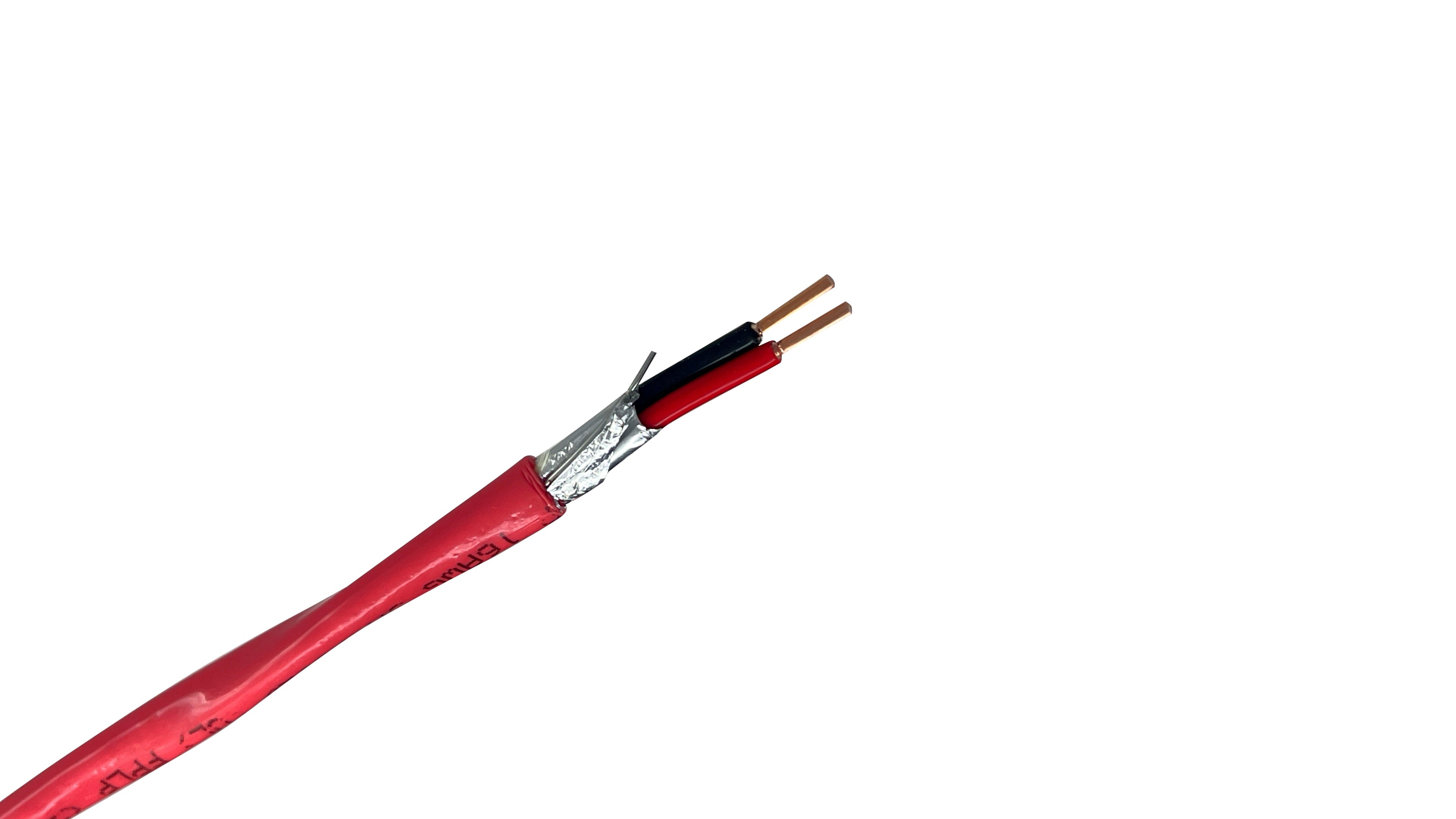

2. The Role of the "Drain Wire"

Because the foil itself is very thin and fragile, it is almost always paired with a tinned copper drain wire. The drain wire stays in constant contact with the foil throughout the cable's length, making it easy to ground the shield at the termination point.

3. Lightweight and Low Profile

Foil shields are significantly thinner and lighter than braided or tape shields. This makes foil-shielded cables much easier to pull through tight conduits and allows for a smaller overall cable diameter—ideal for dense control panels.

4. High-Frequency Specialist

Foil is most effective against high-frequency interference (like RFI from radio towers or electronics). For low-frequency interference (like the heavy hum from a large power transformer), a Foil Shield is often paired with a Braid Shield to create "Supershielding."

Wire America Pro-Tip: If your project involves long runs of data or signal wire near power lines, a foil shield is a non-negotiable requirement. Without it, "Signal-to-Noise" ratios drop, which leads to data errors or equipment "ghost" tripping.
