What is IEEE 1580?

What is IEEE 1580?

The primary industry standard from the IEEE SA (Standards Association) for the construction and testing of marine cables (Type P) used on shipboards and offshore facilities. It establishes requirements for cable performance in harsh environments, covering power, control, and signal cables rated from 300V to 35kV.

IEEE 1580: The Standard for Offshore Reliability

When operating miles from shore, your electrical system is only as strong as its weakest link. IEEE 1580 is the essential standard that ensures marine cables are built to survive the extreme mechanical, thermal, and chemical stresses of the open sea. Whether it’s an inland drilling rig or a floating offshore platform, this standard is the baseline for safety and performance.

Beyond Standard Wire: What IEEE 1580 Requires

A cable that meets the IEEE 1580 standard is engineered for resilience. To earn this rating, Type P Cables must prove their performance in several critical areas:

• Massive Voltage Range: The standard provides construction guidelines for cables rated from 300V for sensitive signals up to 2000V and beyond for heavy power distribution.

• Extreme Heat Management: While standard insulation may fail in high-heat areas, IEEE 1580 supports high-performance systems with a continuous operating temperature of 110°C or 125°C. This allows for higher ampacity levels in engine rooms and machinery spaces.

• Superior Flame Retardancy: Safety is the top priority at sea; these cables must pass rigorous flame tests, such as IEC 60332-3, CAT A, to ensure they do not spread fire between ship compartments.

• Chemical & Mud Resistance: The standard ensures that the cable jacket and insulation can withstand constant exposure to oil, moisture, sunlight, and aggressive ester-based muds.

Project Managers Choose IEEE 1580

Choosing a compliant cable is about more than just checking a box—it’s about protecting your crew and your equipment:

1. Hazardous Area Approval: Armored and sheathed versions are suitable for the most dangerous locations, including Class 1, Division 1 and Zone 1 applications.

2. Mechanical Protection: IEEE 1580 cables meet strict Crush and Impact Resistance (C&IR) requirements, providing a safeguard against the heavy vibrations and physical impacts common on drilling rigs.

3. Global Regulatory Compliance: This standard is recognized by major maritime authorities, including the American Bureau of Shipping (ABS), Lloyd’s Registry, DNV, and Transport Canada.

Standard IEEE 1580 (Type P) Configurations

Offshore environments demand specific gauges and constructions to handle varied power and signal loads. Below are standard sizes of IEEE 1580 compliant cables, available for immediate project fulfillment:

• 6 AWG 1C Type P Unarmored (600V/1kV): A high-flexibility single-conductor solution designed for engine room power feeds and machinery.

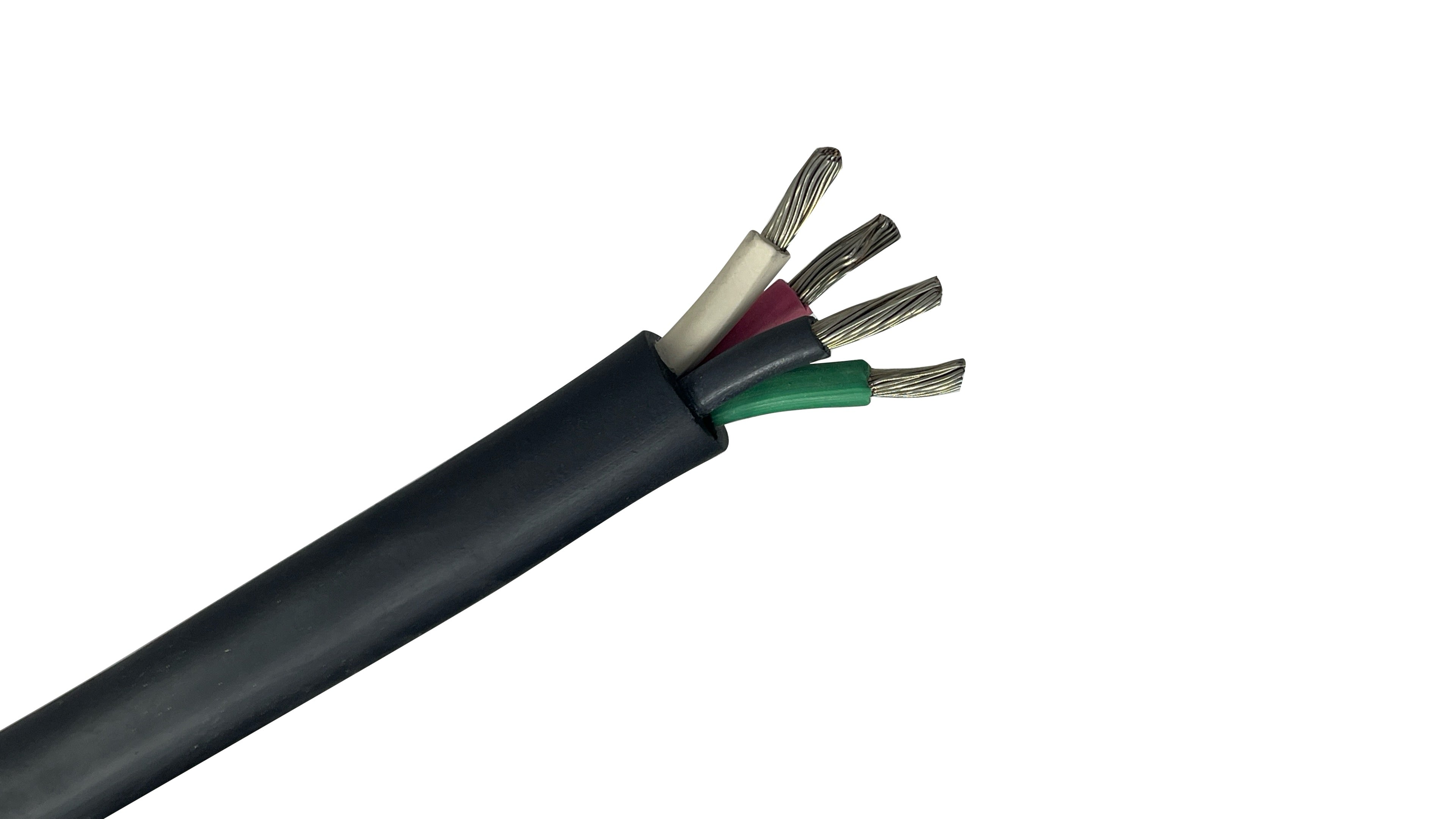

• 10 AWG 4C Type P Unarmored (600V/1kV): Featuring four #10 conductors, this multi-conductor cable is a standard for offshore pump and motor control.

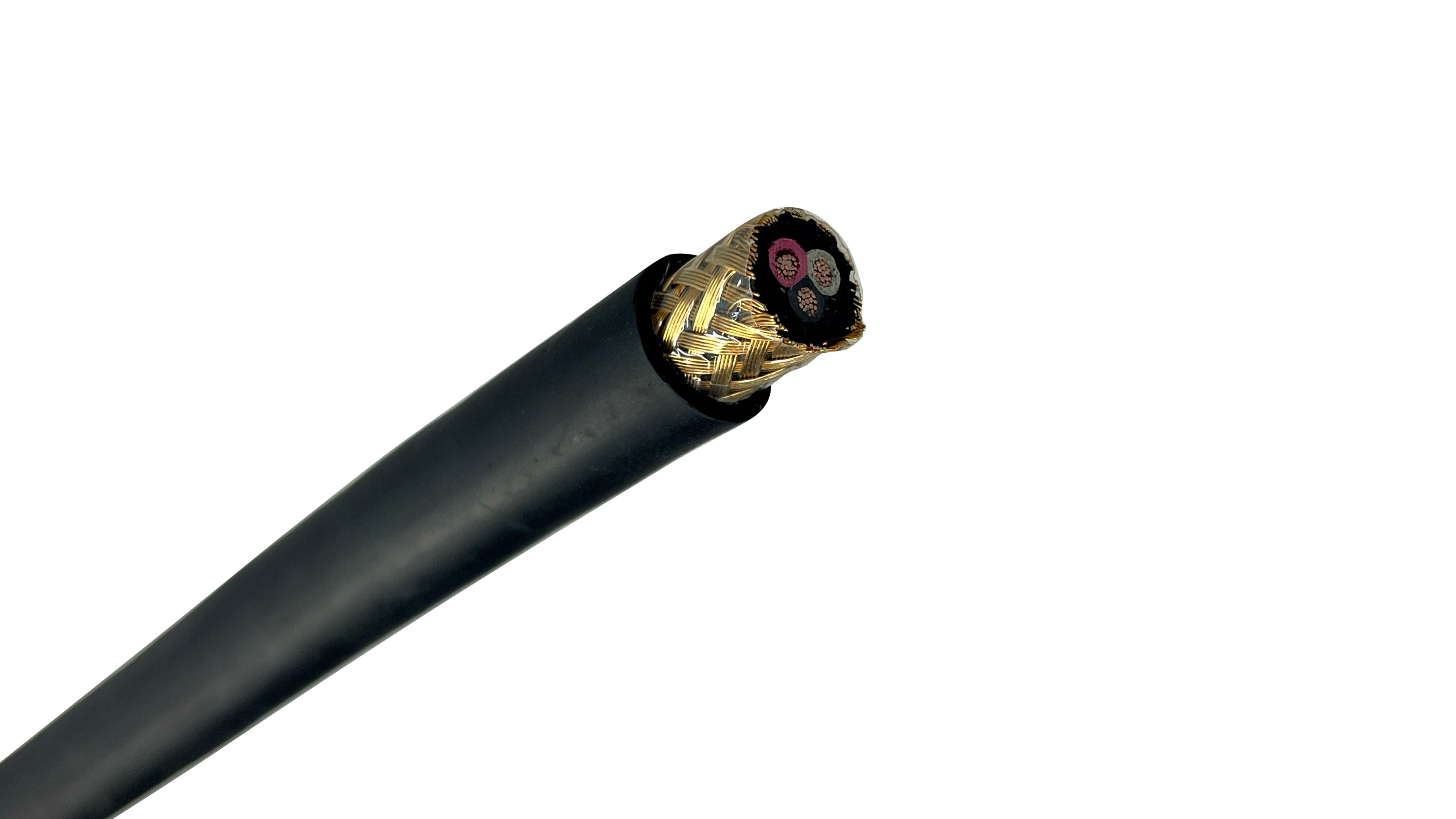

• 12 AWG 3C Type P Armored & Sheathed (600V/1kV): Built for maximum physical protection in hazardous zones, with a temp rating up to 110°C.

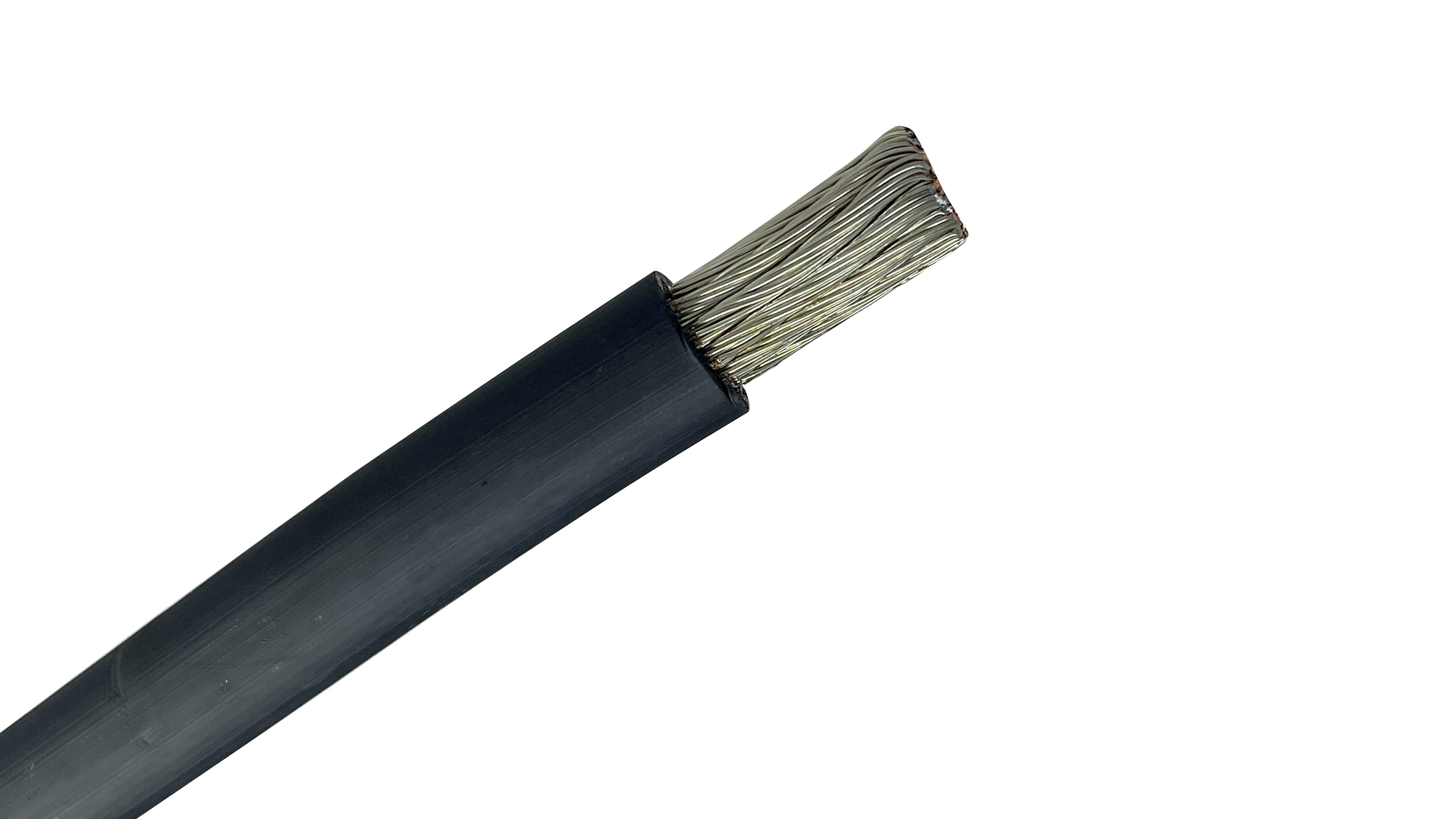

• 777 MCM 1C Type P Unarmored (2kV): Our heavy-duty solution for primary power distribution, drilling systems, and propulsion units.

How Wire America Can Help

At Wire America, we specialize in providing IEEE 1580 compliant cables you need to stay on schedule and under budget. We offer a wide range of Type P Power, Control, and Signal cables in sizes ranging from 18 AWG up to 777 MCM and we can ship directly to your job-site.

Because we offer these high-performance cables by the foot you can get the exact length you need for a quick repair or a major offshore overhaul without unnecessary waste. You can visit our Type P Cable Collection here.

If you would like more technical information on IEEE 1580 you can visit the official website of IEEE Standards Association here.
