The Basics of A Braid Shield

What is a Braid Shield?

A braid shield is a woven metallic or fibrous envelope that surrounds the internal conductors of a cable. Unlike a solid tube or a thin foil wrap, the braid is constructed by interweaving groups of fine strands. This unique "chainmail" design allows the cable to remain highly flexible while providing a robust layer of defense against both physical damage and electrical interference.

Photo of a VFD Cable with a Tinned Copper Braid Shield

Mechanical Strength: Built for High-Flex & High-Tension Environments

Unlike a foil shield, which can tear easily during a rough pull, a braid is interwoven.

• Flex Life: Braid shields are ideal for high-flex applications, such as robotic arms or portable generator cords, because the woven structure slides with the wire as it bends.

• Tensile Strength: The metallic weave adds significant pull-strength to the cable, preventing the inner conductors from stretching or snapping under tension.

• Abrasion Resistance: The physical mass of the braid provides a tough barrier against cuts, crushing, and friction.

Electrical Shielding (EMI Protections)

In environments crowded with electrical "noise"—like server rooms or factory floors—the braid shield acts as a Faraday cage.

• Low-Frequency Defense: Braid is exceptionally good at blocking low-frequency electromagnetic interference (EMI).

• The "Drain" Path: Because it is often made of conductive metal (like tinned copper), the braid provides a low-resistance path to ground, "draining" away unwanted electrical noise before it can distort your signal.

Common Materials & Applications

• Tinned Copper Braid: The industry standard for grounding and EMI shielding. The tin coating prevents corrosion, making it perfect for marine or industrial use.

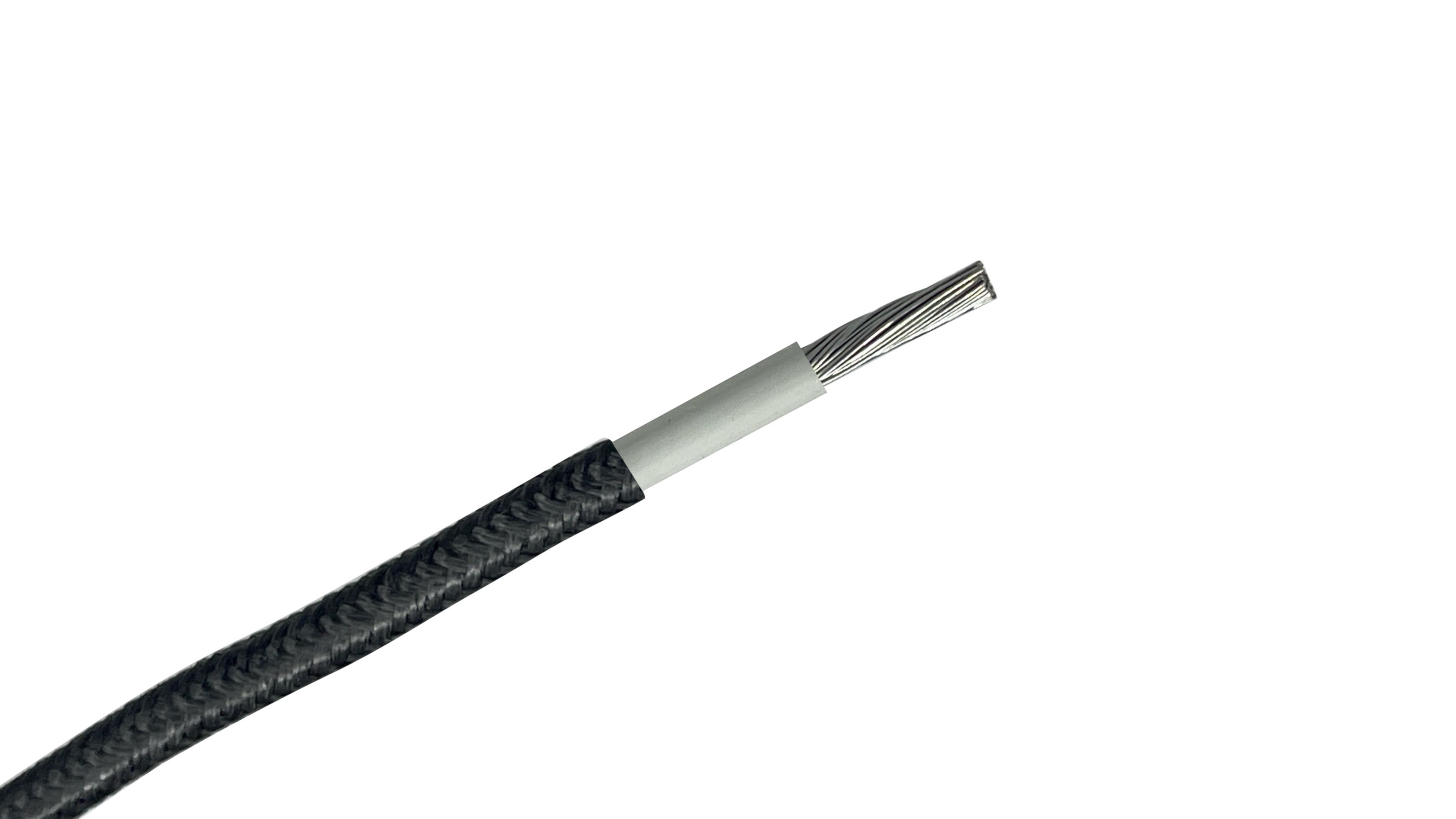

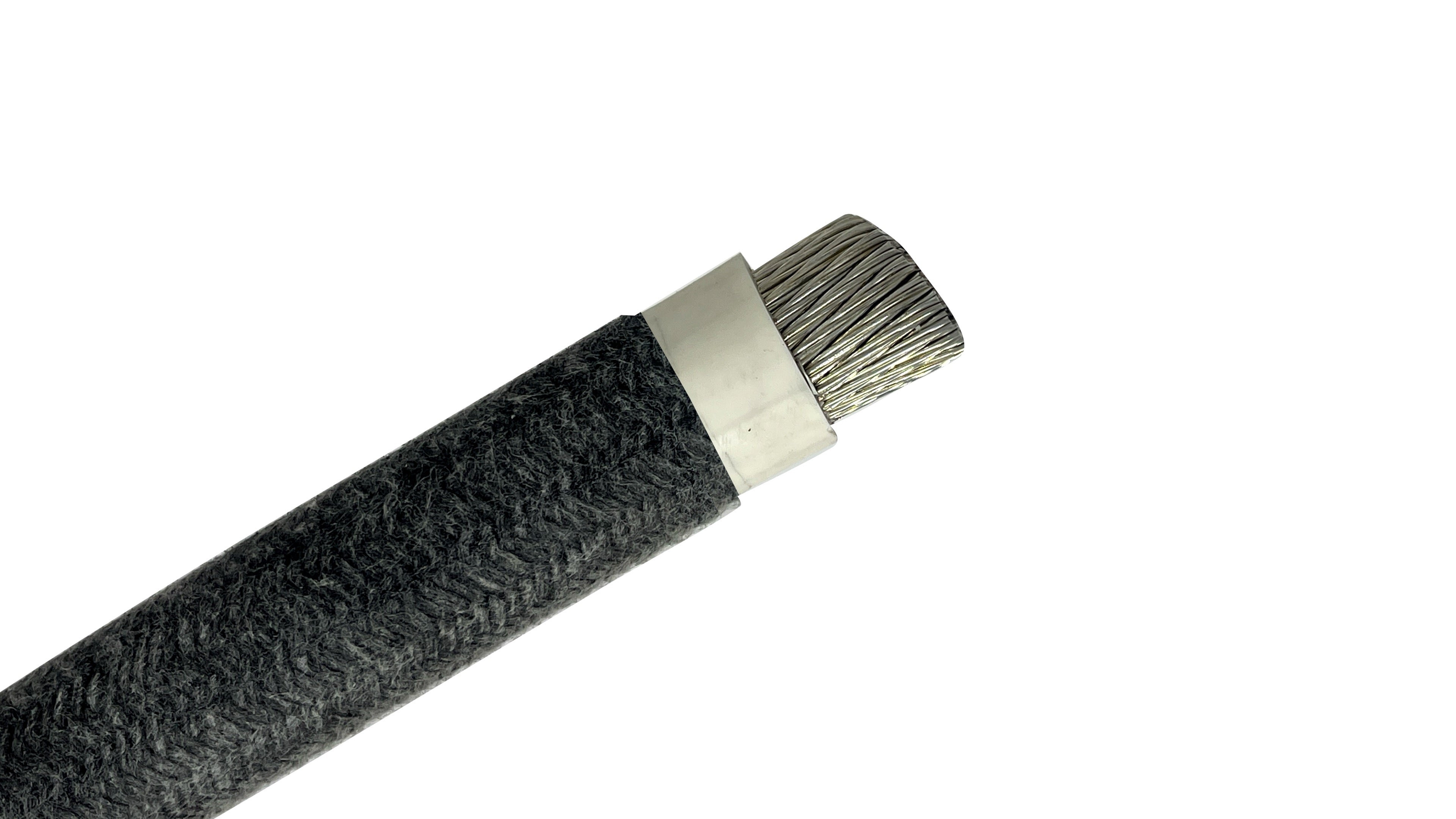

• Fiberglass Braid: Often found on high-temp wires like SRML or MG, providing heat resistance and abrasion protection rather than electrical shielding.

• Stainless Steel Braid: Used in the most extreme environments for maximum crush and cut resistance.

At Wire America, we carry a wide variety of braided shield products designed to meet your exact specifications. Whether you are looking for high-temperature resistance like SRML or TGGT or industrial-grade EMI protection like VFD, we have the solutions to keep your systems running smoothly.

We understand that navigating shielding types and coverage percentages can be complex. If you have any questions about which shielding is right for your environment, or if you need a custom length for a specific project, give us a call today. Our team is ready to help you find the professional-grade solution you need.

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
