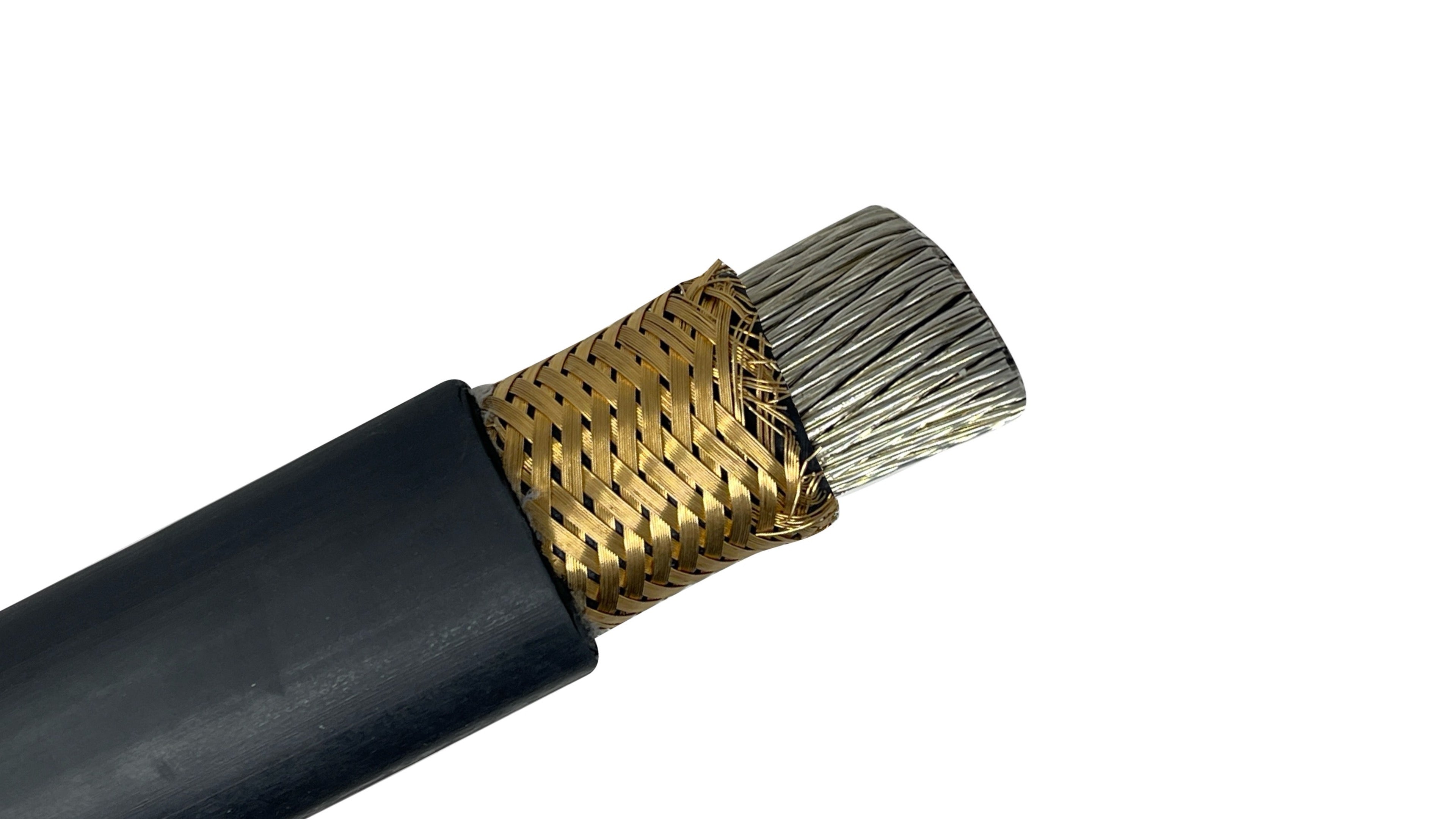

777-1C Type P Marine Shipboard Power Cable, Armored & Sheathed, 2kV

APPLICATION:
Armored and Sheathed Type P Power Cable is designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.

CONDUCTORS:
Soft annealed flexible stranded tinned copper per IEEE 1580 Table 11.

INSULATION / JACKET COLOR:
Black

INSULATION / JACKET:
Flame Retardant Cross-linked Polyolefin, meeting the requirements for IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110. 2000V/IEC 1000V

ARMOR:
Basket weave wire armor per IEEE 1580 and UL 1309/CSA C22.2 No. 245. Bronze standard. Tinned copper available by request.

SHEATH:
A black, arctic grade, flame retardant, oil abrasion, chemical and sunlight resistant thermosetting compound meeting UL 1309/CSA C22.2 No. 245 and IEEE 1580.

AMP RATING:
Free Air @ 110°C - 1048 Amps
110°C - 881 Amps
100°C - 822 Amps
95°C - 753 Amps



FEATURES:
• High strand count conductors make this product extremely flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
• Lower dielectric constant and higher insulation resistance reduces electrical losses.
• Excellent resistance to moisture produces stable electrical properties
throughout the life of the cable.
• In fire conditions, non chlorinated flame retardant system produces less toxic and less corrosive gasses.
• Dual certified IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245 Type X110.
• Highest ampacity ratings: ABS 100°C, DNV 95°C, LRS 95°C, Transport Canada 95°C
• Severe cold durability: exceeds CSA cold bend/cold impact (-40/-35° C)
• Flame retardant: 60332-3 Category A and IEEE 1202
• Suitable for use in Class I, Division 1 and Zone 1 environments
• Braided armor of bronze. Tinned Copper available by request.
