Thermostat Wire Buying Guide: Choosing the Right Gauge and Conductor Count

Thermostat Wire is the essential, low-voltage cable used to connect a heating, ventilation, and air conditioning (HVAC) control system (thermostat) to the furnace, air handler, or zone control panel. Unlike high-voltage power cables, this wire carries only control signals (typically 24 Volts AC) and minimal current.

Selecting the correct thermostat wire (gauge and number of conductors) is critical for a functioning and reliable HVAC system, especially with the rise of smart thermostats.

Here is some information HVAC technicians, electricians, DIY installers, and builders should know about choosing the right thermostat cable.

1. Conductor Count: The Key to System Compatibility

The number of conductors inside the cable is the single most important factor. You must match the conductor count to the requirements of the control system.

• The Basic Rule: Always choose a wire with more conductors than you currently need. This provides "future proofing" for later upgrades (e.g., adding a heat pump, humidifier, or a smart thermostat that requires a dedicated common wire).

• The Common Wire (C-Wire): Modern smart thermostats require a dedicated C-wire to draw constant power. If the existing wire lacks a C-wire (often the blue or brown conductor), you must install a new cable to support the device reliably.

2. Sizing (Gauge): Matching the Load and Distance

Thermostat wire typically comes in two common gauges: 18 AWG and 20 AWG. The choice depends on the electrical load (current) and the length of the run.

• 18 AWG (The Standard): This is the most common and highly recommended gauge. It handles the minimal current draw of most HVAC control boards and is suitable for most residential and light commercial runs (up to approximately 100 feet).

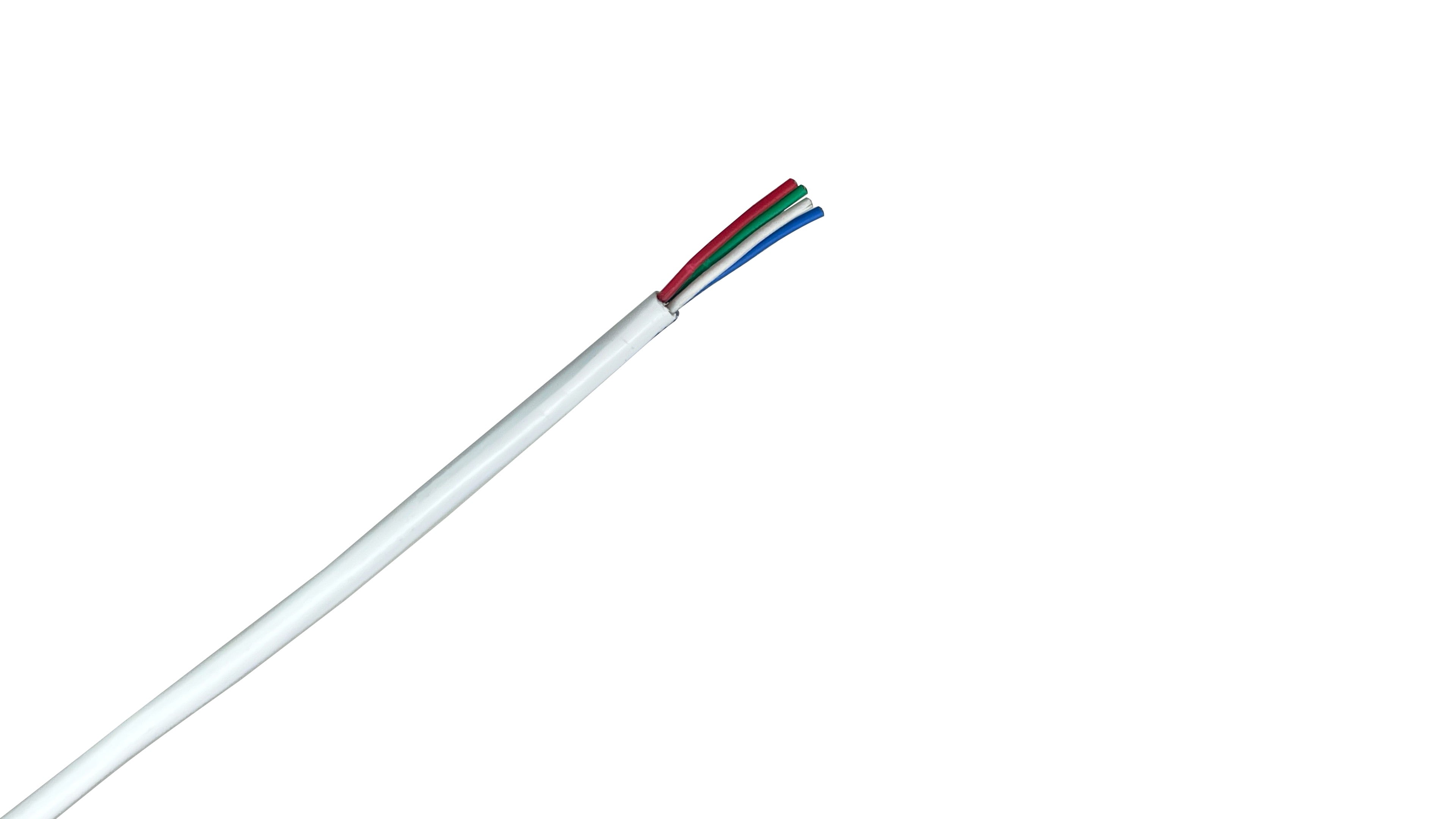

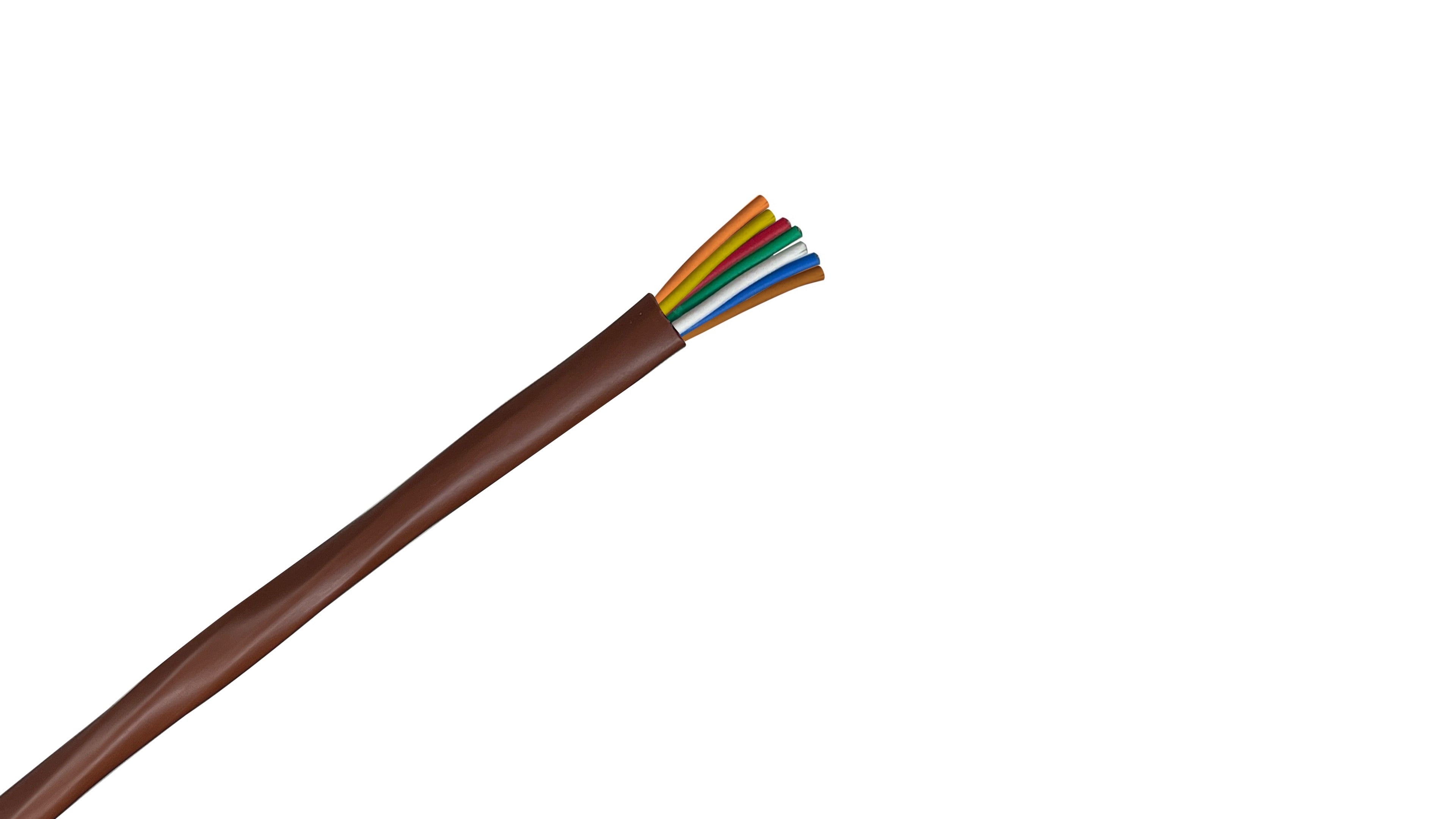

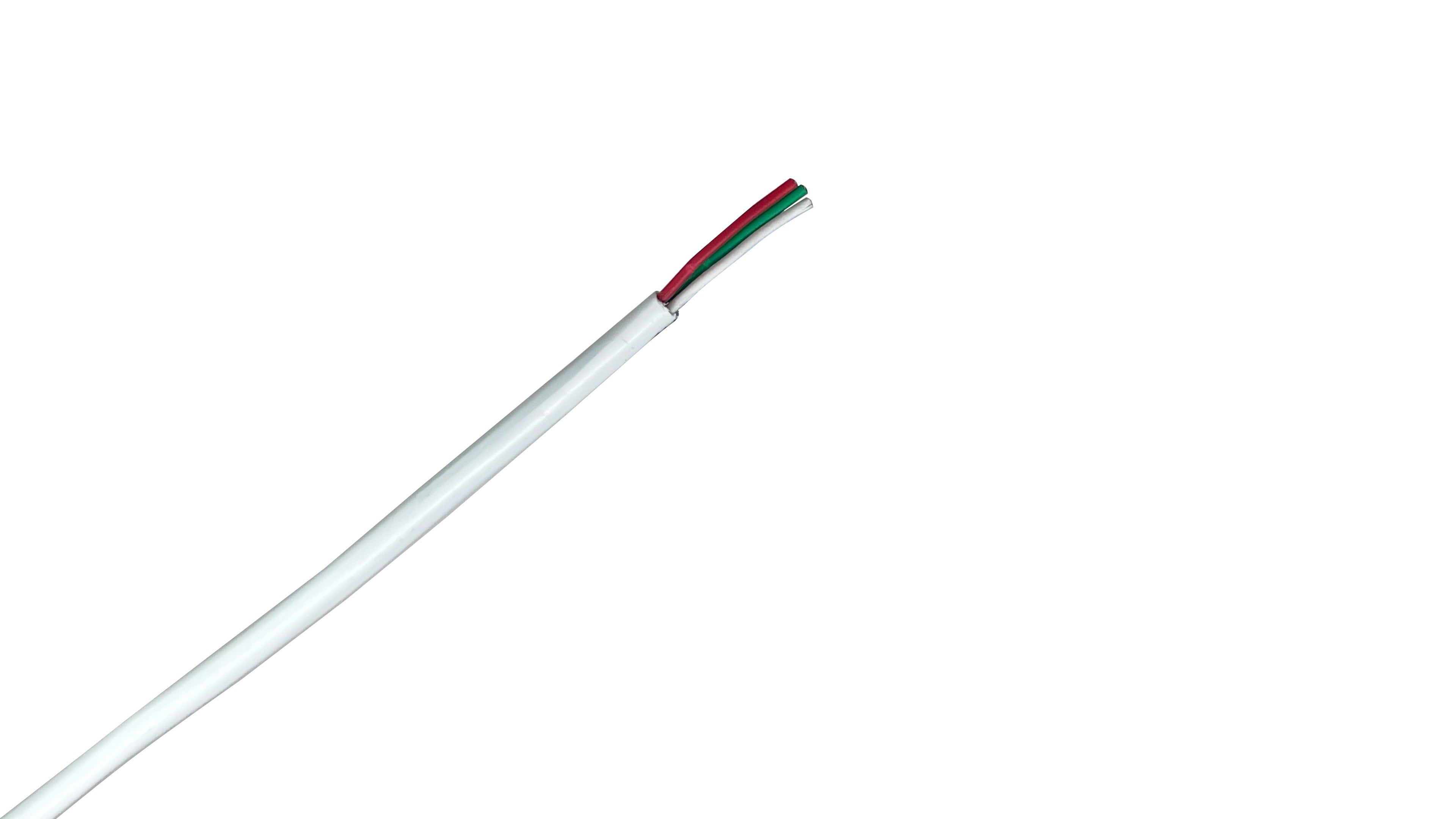

• 20 AWG: This smaller gauge is generally reserved for very short runs where space is highly restricted. It has higher resistance and should never be used for long runs or systems with multiple relays, as it can cause excessive voltage drop.

• Voltage Drop Check: For runs exceeding 150 feet, technicians should consider stepping up to a larger gauge, like 16 AWG, to ensure the full 24 Volts reaches the equipment, preventing relays from chattering or failing to engage.

3. Construction and Installation

Thermostat wire is designed for indoor, low-voltage installation and must meet specific safety ratings.

• Plenum vs. Non-Plenum:

  • Non-Plenum (Type CL2 or CM): Used for runs inside walls, ceilings, and other non-air handling areas. This is the standard residential and commercial choice.

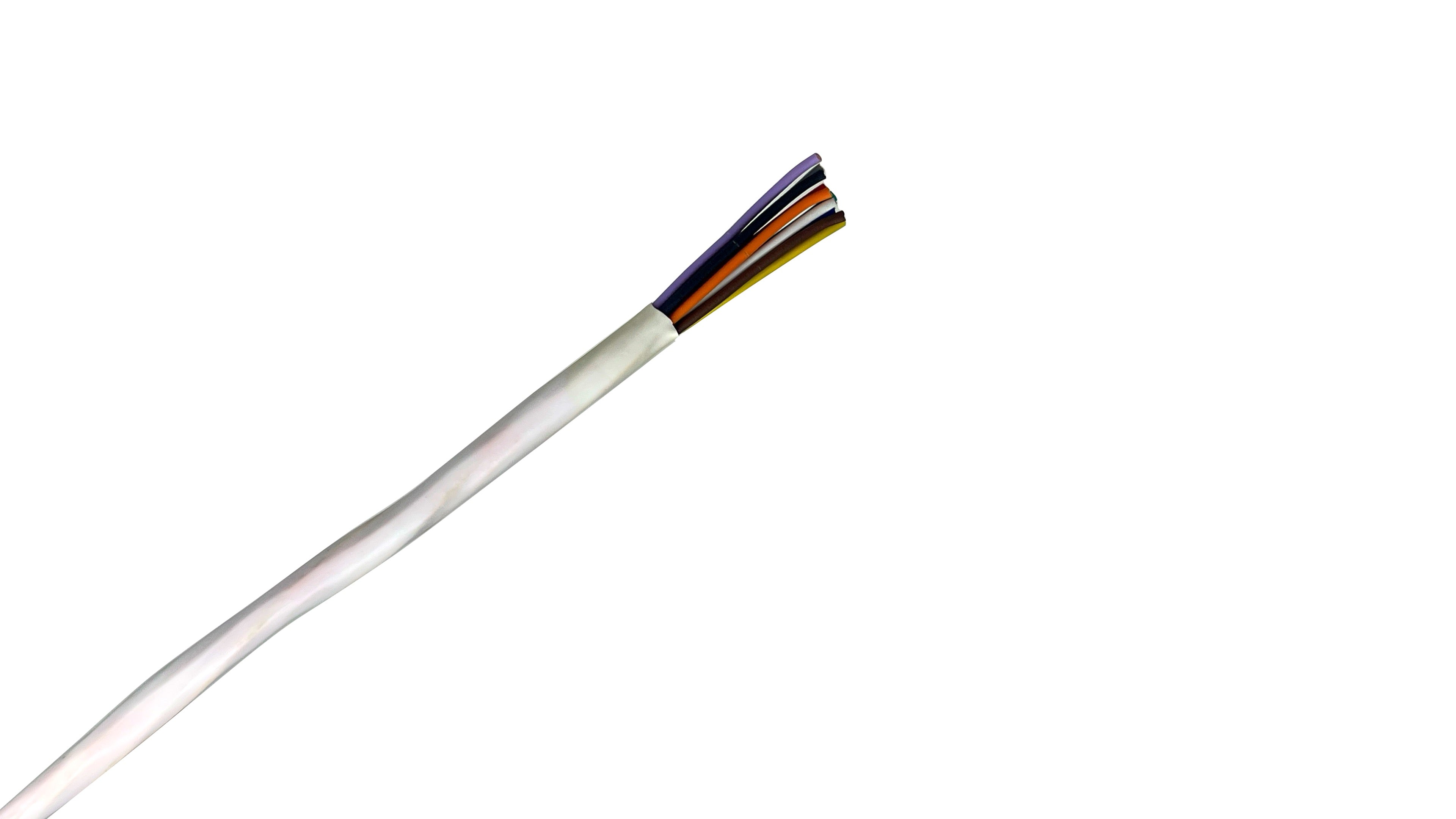

  • Plenum (Type CL2P or CMP): Mandatory when the cable runs inside an air handling space (like a drop-ceiling plenum or ventilation duct). Plenum cable features a special jacket designed to emit low smoke and be fire-resistant, as required by the National Electrical Code (NEC).

• Solid vs. Stranded: Thermostat wire uses solid conductors. This is preferred because terminations (screws/push-in terminals) on HVAC control boards are designed for the stiffness and stability of solid wire.

• Jacket Material: The cable jacket is typically a simple PVC compound, prioritizing flexibility and cost-effectiveness. The individual conductors inside are always color-coded (Red, White, Yellow, Green, Blue, etc.) to match standard HVAC terminal designations.

4. Key Applications for Thermostat Wire

• Residential HVAC: Connecting thermostats to furnaces, central air conditioners, and heat pump units.

• Commercial Building Management: Wiring zone dampers, solenoid valves, and remote temperature sensors.

• Low-Voltage Controls: General use in other 24V AC control circuits, such as doorbell systems or alarm contacts.

5. Why Buy Thermostat Wire

Thermostat wire selection should prioritize the number of conductors—always choosing one with extras for future needs. The 18 AWG gauge is the industry standard for reliable operation, but always check the NEC for plenum requirements if the wire will run through air handling spaces.

Wire America is proud to offer this product by the foot or by the spool with fast shipping to your location.

Click Here to Shop Our Thermostat Wire Selection

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644
