What is All-in-One Generator Cable?

The Contractor's Choice for Standby Power

When installing a permanent standby generator system, the most time-consuming and costly part of the job is often running the cable from the generator to the transfer switch. Traditional methods require conduit, adding significant labor and material expense.

The code-compliant solution that maximizes efficiency and minimizes cost is Multi-Conductor All-in-One Generator Cable (Type TC-ER-JP).

This single assembly contains all the necessary power conductors and ground, engineered to bypass the conduit requirement in many common installations. Here is everything you need to know about why this cable is the industry standard for safe, fast, permanent generator hookups.

1. Copper vs. Aluminum: The Conductor Decision

For generator applications, the choice between copper and aluminum conductors is a trade-off between cost, weight, and ease of termination.

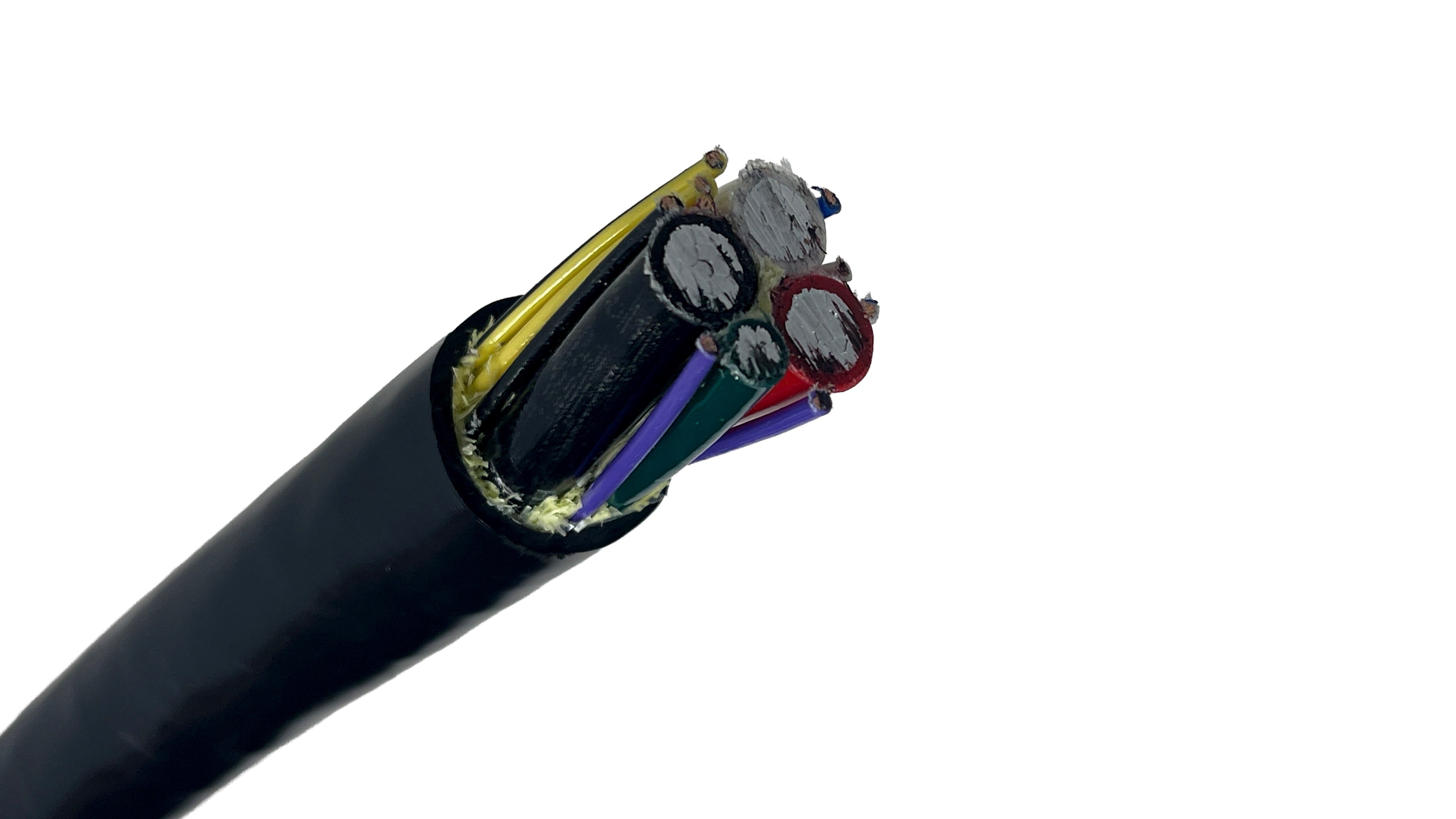

• Aluminum Conductors:

  • Cost Advantage: Aluminum is significantly less expensive than copper, providing substantial savings on material costs, especially for longer runs and larger gauge sizes (4 AWG and up).

  • Weight Advantage: Aluminum is much lighter than copper, which eases handling, pulling, and installation labor.

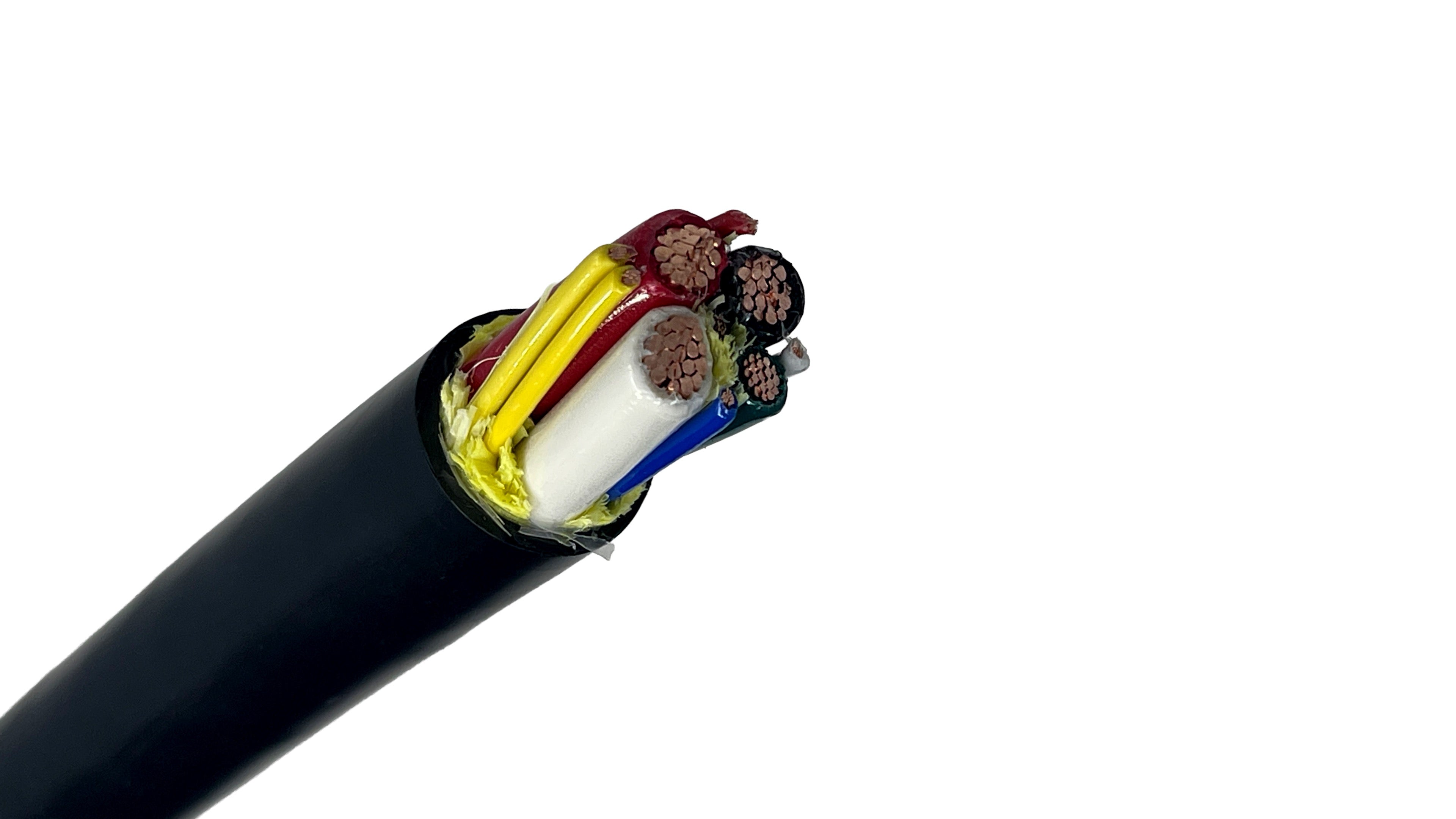

• Copper Conductors:

  • Conductivity: Copper is a superior conductor, requiring a smaller gauge size to carry the same amperage as aluminum.

  • Termination: It is generally easier to terminate, less prone to creep, and requires no special anti-oxidant compound.

  • Use Case: Ideal when space is highly restricted, or when the cost difference is acceptable for the project's budget.

2. The Installation Advantage: Saving Time and Material

This cable's design and specialized ratings translate directly into substantial cost savings on the job site.

• Labor Saver: This is a fantastic labor-saver because it is an all-in-one cable that replaces two or more separate cables (individual conductors, feeder, and ground).

• One Pull vs. Many: Instead of pulling three or four individual conductors through a conduit, you make a single, fast pull with one cable.

• Complete Assembly: The cable contains all necessary power conductors within one jacket. This ensures the correct, matched size and insulation for the entire run.

• No Conduit Needed: The TC-ER (Tray Cable – Exposed Run) and JP (Joist Pull) ratings are critical. TC-ER allows for exposed runs, and JP means the cable can be pulled through framing members like ceiling joists. This eliminates the cost and labor associated with installing full runs of rigid or flexible conduit in many applications, per NEC 336.10(7).

3. Sizing & Spec: Compliance and Conductivity

Safety and code compliance hinge on correct sizing and insulation ratings for permanent use.

• Code Compliance: The Type TC-ER-JP rating ensures the cable meets the National Electrical Code (NEC) requirements for use in trays, exposed runs, and within the building structure (in concealed spaces like joist cavities). It is a 600V rated cable.

• Conductor Identification: The conductors are color-coded (typically Black, Red, White/Neutral, and Green/Ground) to simplify connections to transfer switches and generators (including Generac®) that require the same gauge wire.

• Direct Burial: This cable is also Direct Burial rated, meaning it can be placed directly in the trench without additional conduit when running power underground from the generator to the building, simplifying the outdoor portion of the job.

4. Key Features for Long-Term Durability

This cable is built to last, rated for the harsh conditions a standby generator system faces.

• Sunlight Resistance: The outer jacket is Sunlight Resistant, ensuring the cable will not degrade when exposed to UV light where it transitions from the ground or enters the transfer switch.

• Durable Insulation and Jacket: Element 1, 2 & 3: PVC & Nylon insulation and Black flame resistant and direct burial approved PVC jacket with ripcord.

• Installation Note: Always size the cable (AWG) based on the generator's maximum continuous load and the distance of the run to prevent voltage drop and ensure proper overcurrent protection.

5. Why Buy All-in-One Generator Cable

For permanent standby generator installations, the Multi-Conductor All-in-One TC-ER-JP cable is the single best choice, delivering unmatched compliance, installation speed, and long-term durability while eliminating the need for expensive conduit. The choice between copper and aluminum should be driven by budget and weight considerations.

Wire America is proud to offer this product by the foot or by the spool with fast shipping to your location.

Click Here to Shop Our Generator Cable Selection

At Wire America, we believe in genuine conversation. You'll always talk with real people who understand that every project requires careful product selection. We're here to ensure you feel educated, confident, and great about your final purchase. Feel free to give us a call to discuss your project! You can reach us at: 833-268-8644

⚠️ Important Disclaimer: Safety and Compliance

Wire America provides this information as a guide only. Electrical installations must strictly adhere to the National Electrical Code (NEC) and all state, local, and jurisdictional requirements, which vary widely. Always consult a licensed electrician, electrical engineer, or the local inspecting authority before purchasing material or starting any electrical project. Wire America assumes no liability for the installation, use, or interpretation of these guides.
