Parent SKU : 6WELD-M
SKU : 6WELD-M-1K

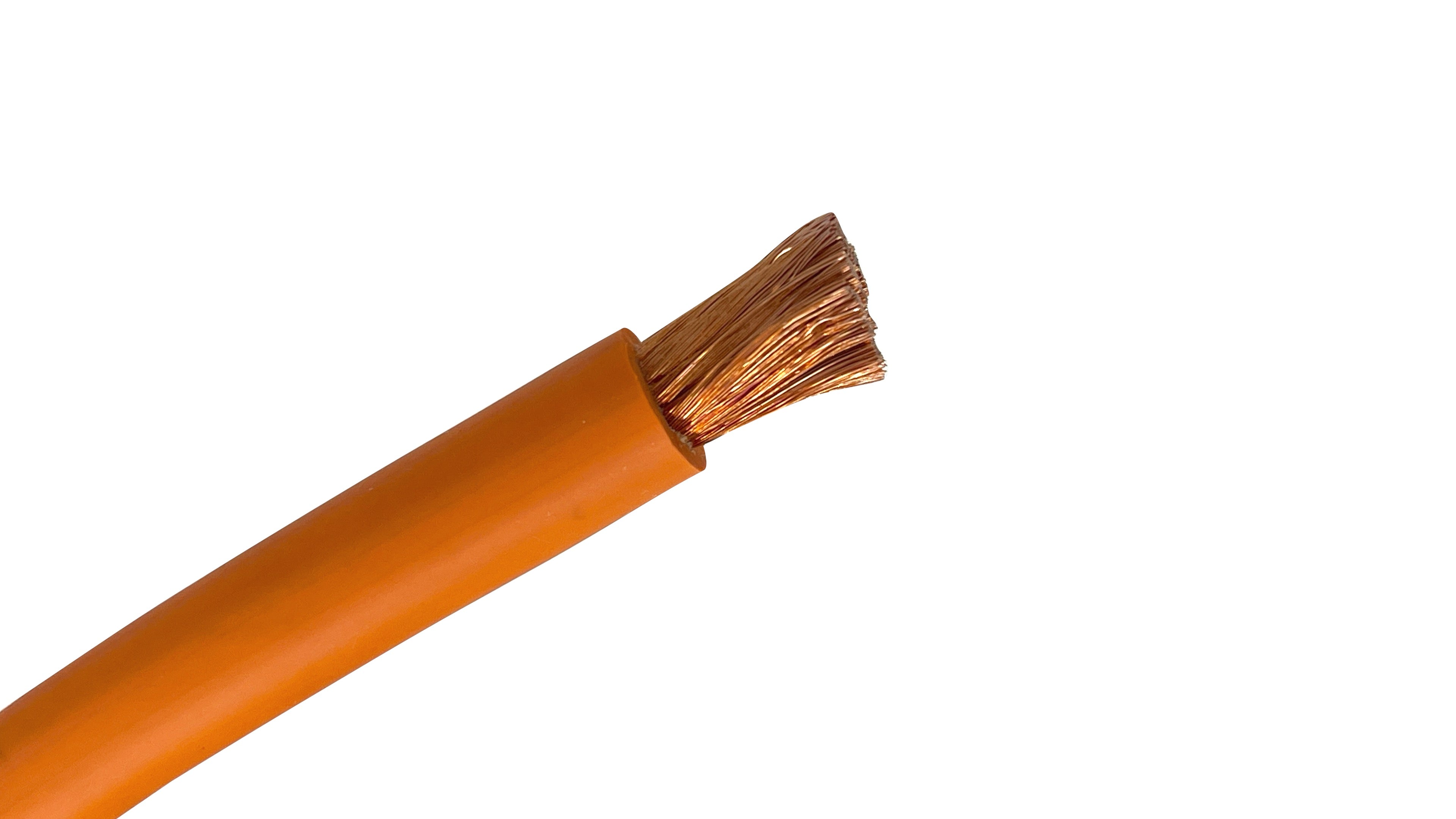

| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Stranded Copper |
| Conductor Type | Stranded |
| Strand Count | 660/34 |
| Outer Diameter (OD) (in/mm) | 0.370 in. / 9.398 mm |
| Jacket Type | Super Vu-Tron |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | Ethylene Propylene Rubber (EPR) |
| UL Listing Numbers | UL/CSA |
| Voltage Rating | 600 |
| Ampacity Rating | 105 |
| Submersible | No |
| Flexibility Rating | Extremely High |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | c(UL) Listed CSA Certified for black only (not colors) MSHA Approved Meets UL Vertical Flame Test per UL 854 RoHS Compliant |
| Miscellaneous Information | The total circuit length includes both welding and ground leads (based on 4-volt drop) 60% duty cycle. These values for current-carrying capcity are based on a copper temperature of 60ºC (140ºF), and ambiant temperature of 40ºC (104ºF) and yield load factors of from approximately 32% for the 2 AWG cable to approximately 23% for the 3/0 AWG cable, and higher for the smaller sizes. The sizes of cables generally used range from 2 AWG to 3/0 AWG. In actual service, the load factor may be much higher than indicated without overheating the cable as the ambient temperature will generally be substantially lower than 40ºC. |
| RoHS Compliance | Yes |
| Primary Applications | Welding and Ground Leads |
| Common Uses |
|
| Weight per Foot | 0.125 lb |
