Parent SKU : APLC-5K-6
SKU : APLC-5K-6-250

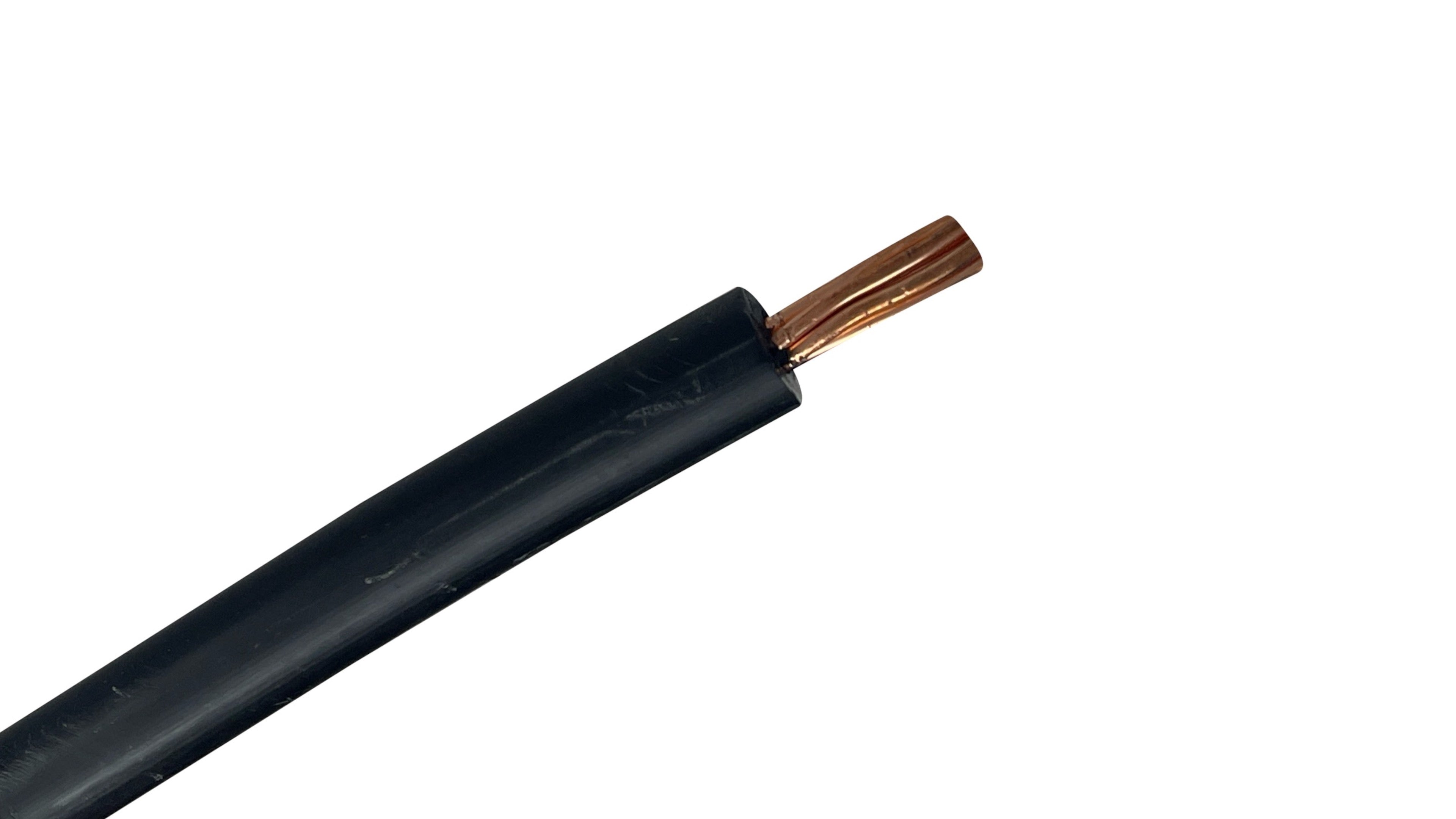

"The aviation industry standard for critical airfield series lighting circuits. Specially engineered to meet rigid FAA L-824 Type C specifications, this single-conductor, 5000V-rated cable delivers unwavering power loops to runway edge lights, taxiway markers, and navigational aids under the most severe environmental and chemical stresses."
Civil engineering and airfield infrastructure projects demand absolute operational reliability. This 6 AWG Airport Lighting Cable is designed to function seamlessly within high-voltage primary series circuits powered by Constant Current Regulators (CCRs). Built with high-purity, soft-drawn stranded copper and a thick layer of premium Cross-Linked Polyethylene (XLPE) insulation, it resists the aggressive conditions unique to airport environments—including heavy sub-surface moisture, intense mechanical compaction, and corrosive fuel exposure.
FAA Certified Performance: Fully meets the performance requirements of FAA Advisory Circular 150/5345-7F, ensuring compliance with strict civil aviation construction inspections.
Direct Burial Ready: Engineered with robust structural stability for installation in deep trenches, concrete encasements, or underground duct banks. Also suitable for conduit and aerial installations.Â
Rugged 5,000V XLPE Barrier: A 110-mil thick layer of non-shielded Type C insulation handles continuous high-voltage series circuit demands without a risk of dielectric puncture.
Defense Against Airfield Fluids: Formulated to fully resist insulation breakdown caused by leaked aviation jet fuel, aggressive de-icing salts, hydraulic fluids, and corrosive subsurface soils.
ENGINEERING OVERVIEW
Conductor Size: 6 AWG
Conductor Material: Stranded soft-drawn bare copper (per ASTM B-3 & B-8)
Strand Count: 7 Strands
Insulation Type: Cross-linked polyethylene (XLPE) insulation in accordance with ICEA S-96-659.
Voltage Rating: 5,000 Volts (5KV)
Direct Burial Rating: Yes
Sunlight/UV Resistance: Yes
Temperature Rating: 90°C (Wet or Dry Locations)
Outer Diameter (OD): 0.401 inches (10.19 mm)
Weight per Foot: 0.125 lbs (125 lbs per 1,000 ft)
DC Resistance (@ 20°C): 0.4112 ohms/kft
Max Pulling Tension: 202 lbs (Single conductor, unobstructed straight pull)
Compliance Standards: FAA AC 150/5345-7F Specification L-824; ICEA S-96-659 / NEMA WC71
Long-Distance Runway Loops: Powering high-voltage series loops for extended commercial and military runways where maintaining voltage stability over distance is paramount.
Airfield Guidance Signage: Delivering high-amperage current loops to illuminated taxiway signs and flashing directional guidance markers.
Heavy Navigational Arrays: Supplying steady 5KV power to intensive runway visual assistance systems like PAPI (Precision Approach Path Indicators) and sequence flashers.
Underground Duct Banks & Trenches: Ideal for pulling through subsurface duct networks or embedding in sand-padded trenches running the length of taxiway fields.Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.401 in. / 10.19 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | XLPE Cross-Linked Polyethylene |
| Voltage Rating | 5kV |
| Direct Burial Rating | Yes |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | FAA Advisory Circular 150/5345-7F ICEA S-96-659 NEMA WC71 |
| Miscellaneous Information | All values are nominal and subject to correction |
| RoHS Compliance | Yes |
| Weight per Foot | 0.125 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : APLC-5K-6
SKU : APLC-5K-6-250
Parent SKU : APLC-5K-6
SKU : APLC-5K-6-250
"The aviation industry standard for critical airfield series lighting circuits. Specially engineered to meet rigid FAA L-824 Type C specifications, this single-conductor, 5000V-rated cable delivers unwavering power loops to runway edge lights, taxiway markers, and navigational aids under the most severe environmental and chemical stresses."
Civil engineering and airfield infrastructure projects demand absolute operational reliability. This 6 AWG Airport Lighting Cable is designed to function seamlessly within high-voltage primary series circuits powered by Constant Current Regulators (CCRs). Built with high-purity, soft-drawn stranded copper and a thick layer of premium Cross-Linked Polyethylene (XLPE) insulation, it resists the aggressive conditions unique to airport environments—including heavy sub-surface moisture, intense mechanical compaction, and corrosive fuel exposure.
FAA Certified Performance: Fully meets the performance requirements of FAA Advisory Circular 150/5345-7F, ensuring compliance with strict civil aviation construction inspections.
Direct Burial Ready: Engineered with robust structural stability for installation in deep trenches, concrete encasements, or underground duct banks. Also suitable for conduit and aerial installations.Â
Rugged 5,000V XLPE Barrier: A 110-mil thick layer of non-shielded Type C insulation handles continuous high-voltage series circuit demands without a risk of dielectric puncture.
Defense Against Airfield Fluids: Formulated to fully resist insulation breakdown caused by leaked aviation jet fuel, aggressive de-icing salts, hydraulic fluids, and corrosive subsurface soils.
ENGINEERING OVERVIEW
Conductor Size: 6 AWG
Conductor Material: Stranded soft-drawn bare copper (per ASTM B-3 & B-8)
Strand Count: 7 Strands
Insulation Type: Cross-linked polyethylene (XLPE) insulation in accordance with ICEA S-96-659.
Voltage Rating: 5,000 Volts (5KV)
Direct Burial Rating: Yes
Sunlight/UV Resistance: Yes
Temperature Rating: 90°C (Wet or Dry Locations)
Outer Diameter (OD): 0.401 inches (10.19 mm)
Weight per Foot: 0.125 lbs (125 lbs per 1,000 ft)
DC Resistance (@ 20°C): 0.4112 ohms/kft
Max Pulling Tension: 202 lbs (Single conductor, unobstructed straight pull)
Compliance Standards: FAA AC 150/5345-7F Specification L-824; ICEA S-96-659 / NEMA WC71
Long-Distance Runway Loops: Powering high-voltage series loops for extended commercial and military runways where maintaining voltage stability over distance is paramount.
Airfield Guidance Signage: Delivering high-amperage current loops to illuminated taxiway signs and flashing directional guidance markers.
Heavy Navigational Arrays: Supplying steady 5KV power to intensive runway visual assistance systems like PAPI (Precision Approach Path Indicators) and sequence flashers.
Underground Duct Banks & Trenches: Ideal for pulling through subsurface duct networks or embedding in sand-padded trenches running the length of taxiway fields.Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Â
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.401 in. / 10.19 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | XLPE Cross-Linked Polyethylene |
| Voltage Rating | 5kV |
| Direct Burial Rating | Yes |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | FAA Advisory Circular 150/5345-7F ICEA S-96-659 NEMA WC71 |
| Miscellaneous Information | All values are nominal and subject to correction |
| RoHS Compliance | Yes |
| Weight per Foot | 0.125 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||
Airport Lighting Cable, officially designated as FAA L-824, is a specialized 5kV-rated single-conductor cable. Unlike standard wire, it is engineered for series lighting circuits where a Constant Current Regulator (CCR) pushes power through a continuous loop that guide aircraft on runways and taxiways. It features rugged insulation (typically Type B EPR or Type C XLPE) designed to withstand direct burial and constant exposure to jet fuel, de-icing fluids, and hydraulic oils common in airfield environments.
#6 AWG is the industry-standard size for FAA L-824 primary series circuits. Its primary applications include:
Runway Edge Lighting: Powering the white and yellow lights that define runway boundaries.
Taxiway Edge & Centerline: Illuminating blue taxiway edge lights and green centerline navigation paths.
Navigational Aids (NAVAIDs): Providing high-voltage power to critical landing systems such as PAPI (Precision Approach Path Indicators) and VASI (Visual Approach Slope Indicators).
Approach Lighting Systems (ALS): Supplying the sequence flashers and steady-burn lights that guide aircraft during their final descent.
While L-824 cable is frequently installed in underground conduit or duct banks, it is officially rated for direct burial. However, for direct burial applications, it is critical to use a sand-padded trench and ensure there are no sharp rocks that could compromise the insulation during backfilling.
Yes. Our L-824 cables are specifically engineered for the "airside" environment. The rugged outer jacket is designed to resist degradation from hydraulic fluids, jet fuel, and the aggressive chemicals found in aircraft de-icing agents that often leach into the soil and conduit systems.
FAA AC 150/5345-7 (the circular governing L-824) ensures that the cable meets strict performance standards for dielectric strength, heat resistance, and chemical stability. Using non-certified wire in an airport lighting system is a major safety violation and can lead to system-wide failures during low-visibility landings.
Type B: Typically insulated with EPDM (Ethylene Propylene Diene Monomer) or similar rubber-like compounds. It is known for its extreme flexibility and ease of handling in cold weather.
Type C: Features XLPE (Cross-Linked Polyethylene) insulation. Type C is generally more rigid but offers superior resistance to heat and chemical degradation, making it a favorite for long-term durability in underground conduits.
Yes, all L-824 cables stocked by Wire America are sunlight (UV) resistant. While they are primarily used underground, they are often exposed at connection points or in surface-mounted taxiway sign housings, and the insulation is designed not to crack or degrade under UV exposure.
