Parent SKU : THN500AL
SKU : THN500AL-250-BK
APPLICATION:
THHN / THWN-2 / T90 Aluminum Building Wire is a versatile general-purpose cable suitable for both new construction and rewiring projects in 600-volt applications. Its conductors are rated for continuous use in either wet or dry locations, with temperatures not exceeding 90°C. For optimal installation, this cable should be installed without the application of pulling lubricant.
CONDUCTOR:
Compact bare AA-8000 series aluminum, with Class B stranded per ASTM.
INSULATION:

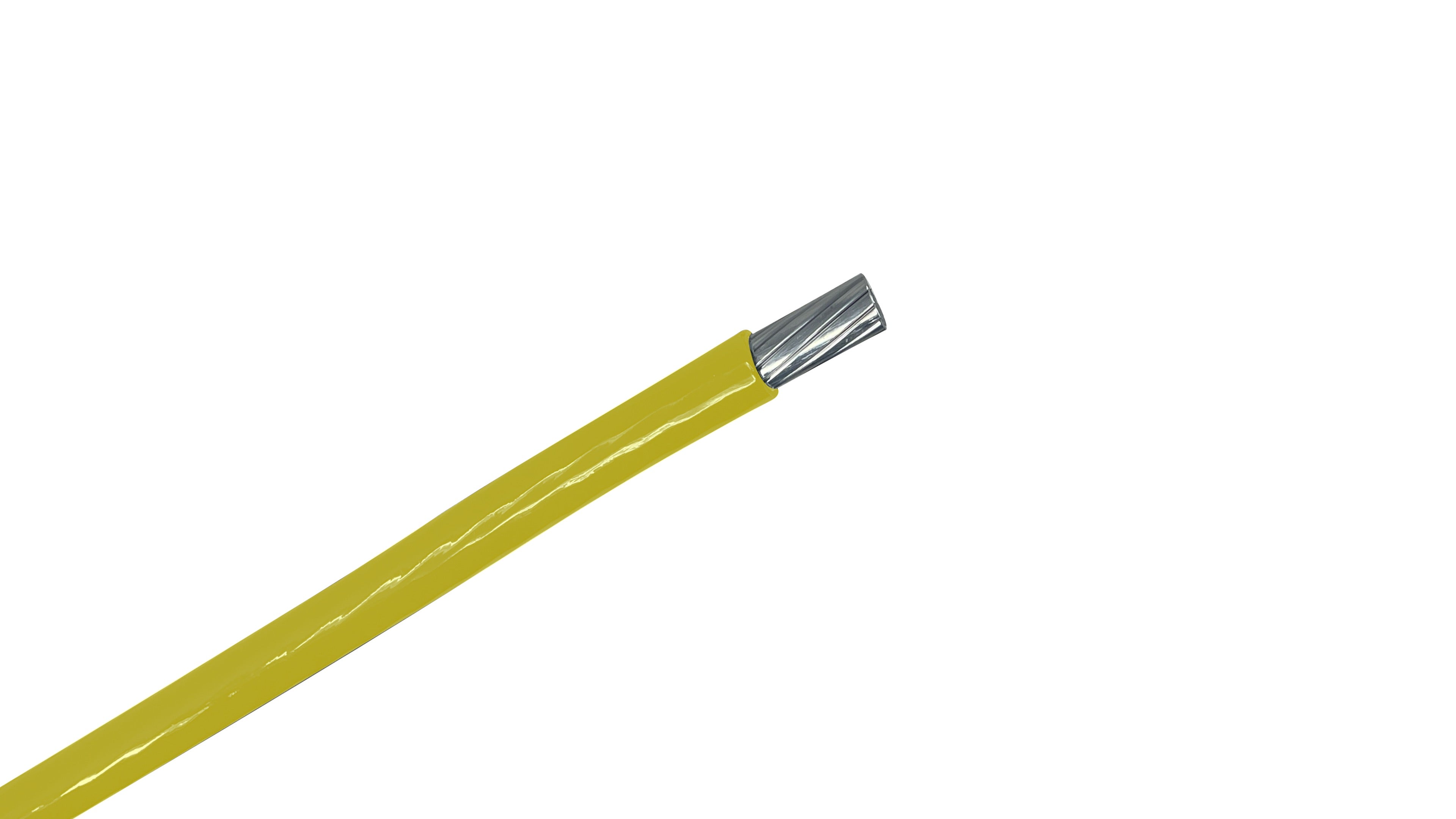

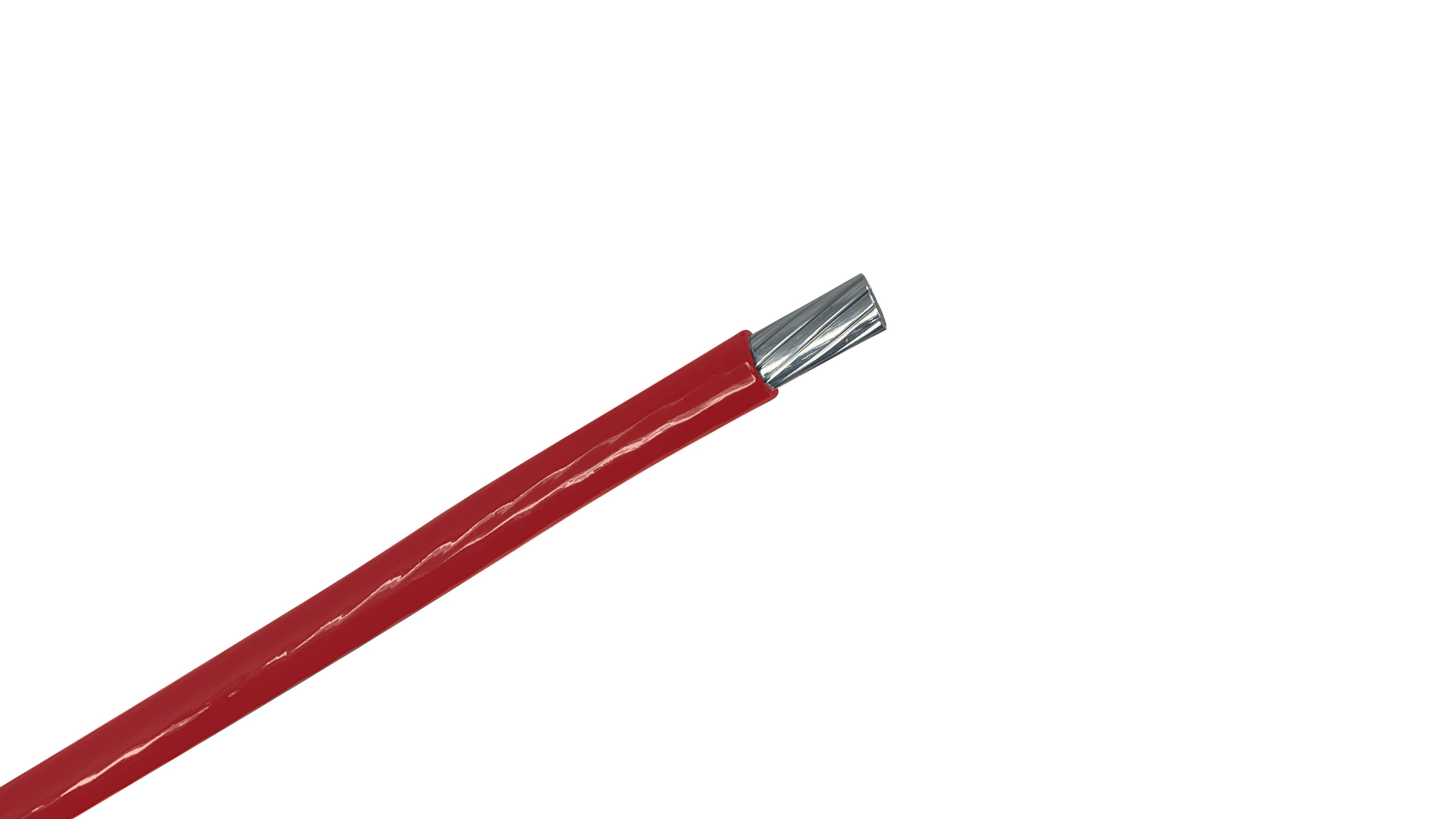

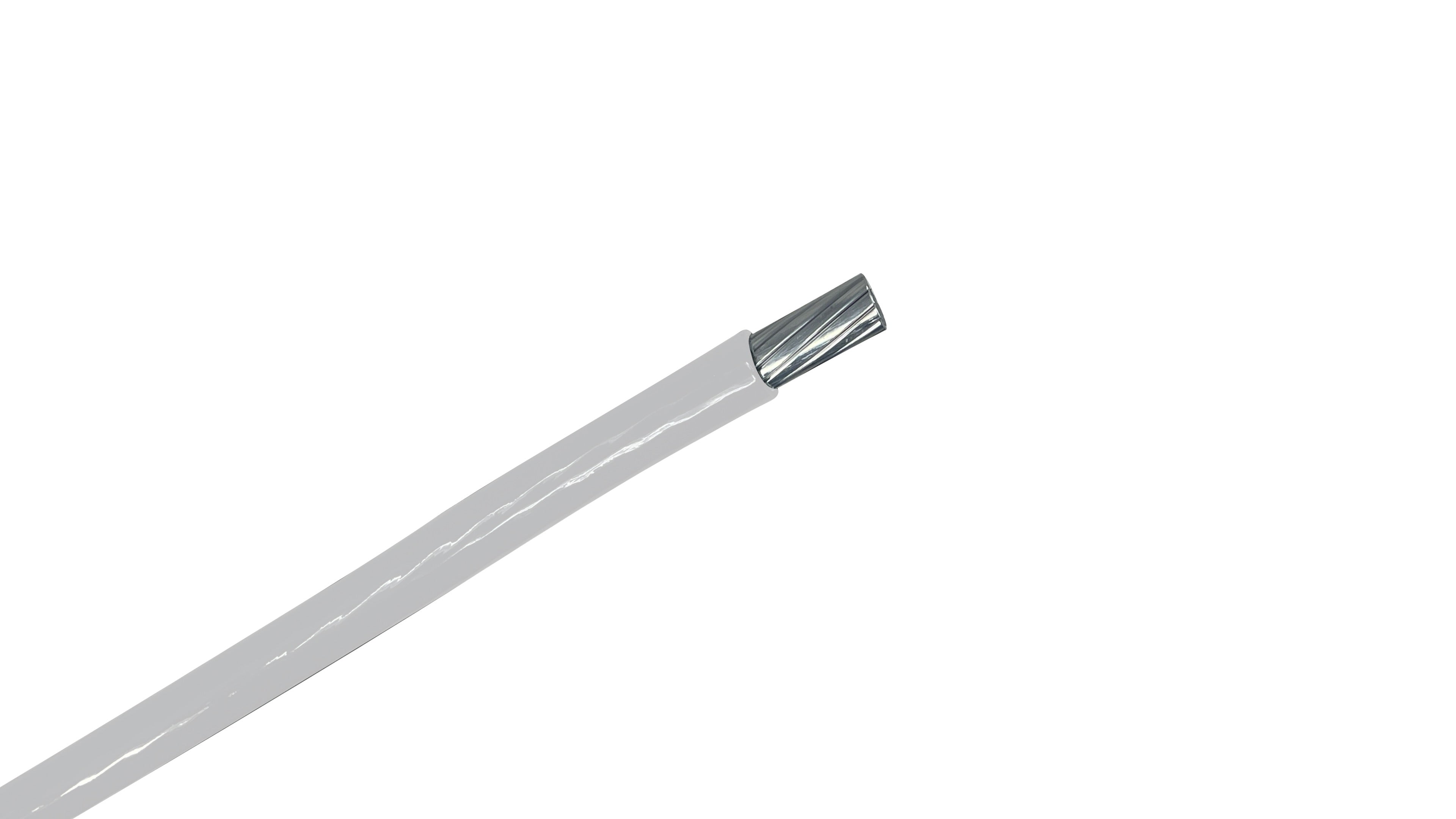

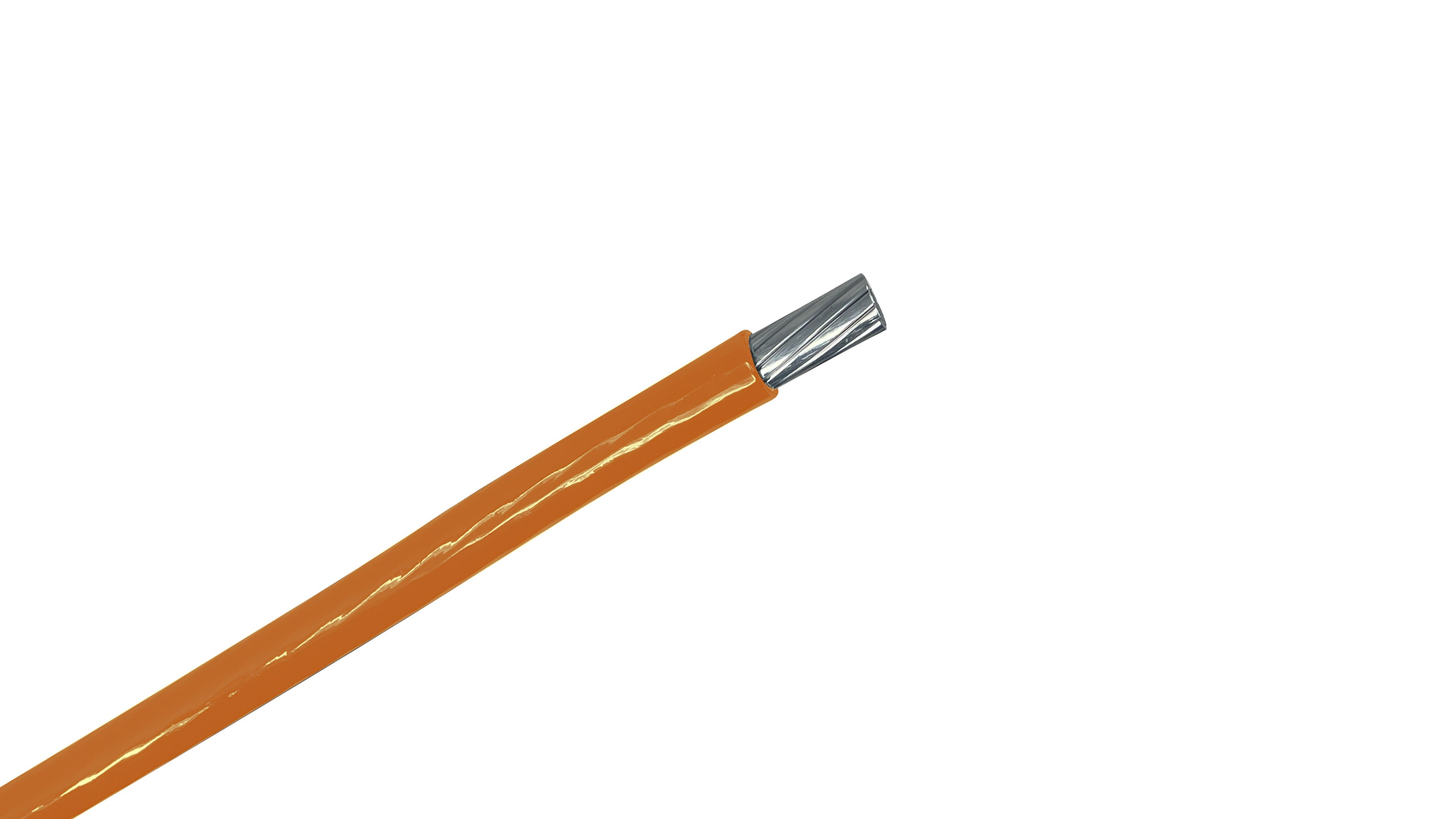

Low coefficient of friction (“slick”), abrasion, heat and moisture resistant Polyvinyl Chloride (PVC). It is available in ten solid colors.
AMP RATING:
@ 60°C - 260 Amps
@ 75°C - 310 Amps
@ 90°C - 350 Amps
All values are nominal and subject to correction. **Ampacities shown are for general use as specified by the National Electrical Code 2017 Edition, Section 310.15 and 240.4(D). Unless the equipment is marked for use at higher temperatures, the conductor ampacities shall be limited to the follwing per NEC 110.14(C): 60°C - When terminated to equipment for circuits rated 100 amperes or less marked for 14 through 1 AWG conductors. 75°C - When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG. 90°C - THHN dry locations and THWN wet or dry locations for ampacity adjustment purposes using NEC section 310.15.
| Wire Size (AWG/MCM) | 500 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 0.872 in. / 22.148 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (PVC) Polyvinyl Chloride |
| UL Listing Numbers | UL 83, UL 1685, cUL, CSA |
| Voltage Rating | 600V |
| Ampacity Rating | 350 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 83, UL 1685, cUL CSA C22.2 No. 75 1/0 & larger are rated for CT use NEC & CEC NEMA WC-70 / ICEA S-95-658 ASTM B800, B801, B836 Federal Specification AA-59544 VW-1/FT1 Flame Test Sunlight resistant / Gas and Oil Resistant II |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacities shown are for general use as specified by the National Electrical Code 2017 Edition, Section 310.15 and 240.4(D). Unless the equipment is marked for use at higher temperatures, the conductor ampacities shall be limited to the follwing per NEC 110.14(C): 60°C - When terminated to equipment for circuits rated 100 amperes or less marked for 14 through 1 AWG conductors. 75°C - When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG. 90°C - THHN dry locations and THWN wet or dry locations for ampacity adjustment purposes using NEC section 310.15. |
| RoHS Compliance | Yes |
| Primary Applications | Residential, commercial, and industrial wiring, outlets, switches, and lighting circuits. Internal wiring of machine tools, industrial equipment, and various appliances, control panels and circuits for automation and HVAC systems. |
| Weight per Foot | 0.576 lb |
