Parent SKU : PVAL4
SKU : PVAL4-250-BK
APPLICATION:
Aluminum 2kV Photovoltaic Cable is primarily used to interconnect grounded and ungrounded photovoltaic (PV) power systems. In accordance with NEC Article 690.31(C)(2), this single-conductor cable of all sizes can be installed in outdoor cable trays for PV source and output circuits. The cable is rated for applications up to 2000 volts and is suitable for both wet and dry locations with temperatures ranging from -40°C to +90°C.
CONDUCTORS:

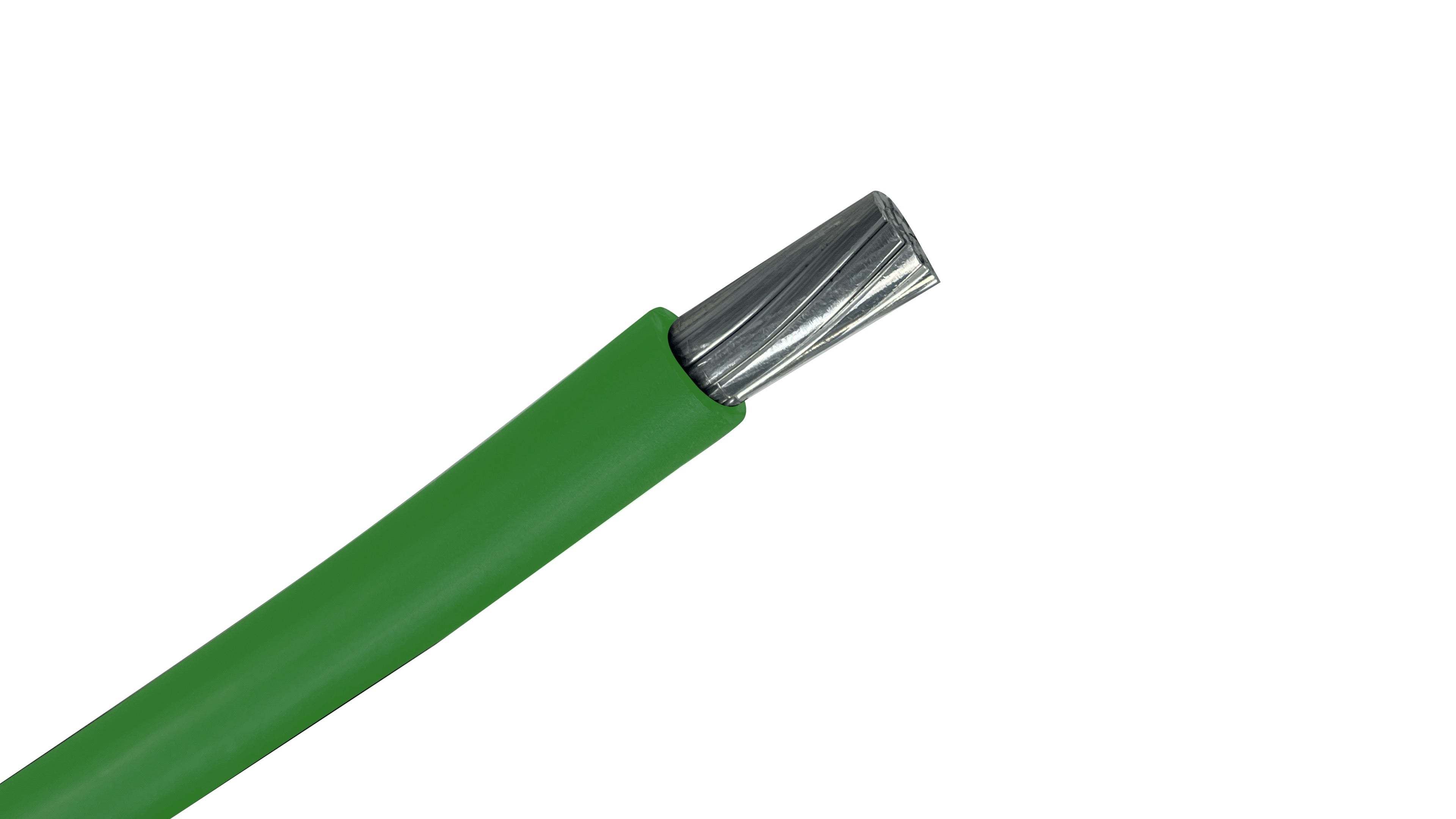

Compact stranded 8000 Series Aluminum Alloy conductor.
COLORS:
Black, Red and Green
INSULATION:
Shrinkback resistant cross-linked polyethylene (XLPE), gas/ oil and sunlight resistant, direct burial rated.
AMP RATING:
@ 90°C - 75 Amps
All values are nominal and subject to correction *Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC.
| Wire Size (AWG/MCM) | 4 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.38 in. / 9.65 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854, UL 4703 |
| Voltage Rating | 2000V |
| Ampacity Rating | 75 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B800, B801, B836, B901 UL 44 RHH RHW-2, UL 854 USE-2, UL 4703 PV Wire CSA listed RPVU90 per CSA C22.2 No. 271 ANSI/ICEA S-95-658/NEMA WC 70 VW-1 flame test, Sunlight Resistant, Direct Burial |
| Miscellaneous Information | All values are nominal and subject to correction *Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC. |
| RoHS Compliance | Yes |
| Primary Applications | Interconnection Wiring for Solar Arrays, Large-Scale Solar Farms, Commercial and Industrial Solar Projects, Feeder Cables (AC and DC Sides) |
| Common Uses |
|
| Weight per Foot | 0.076 lb |
