Parent SKU : 2246MHF
SKU : 2246MHF-100

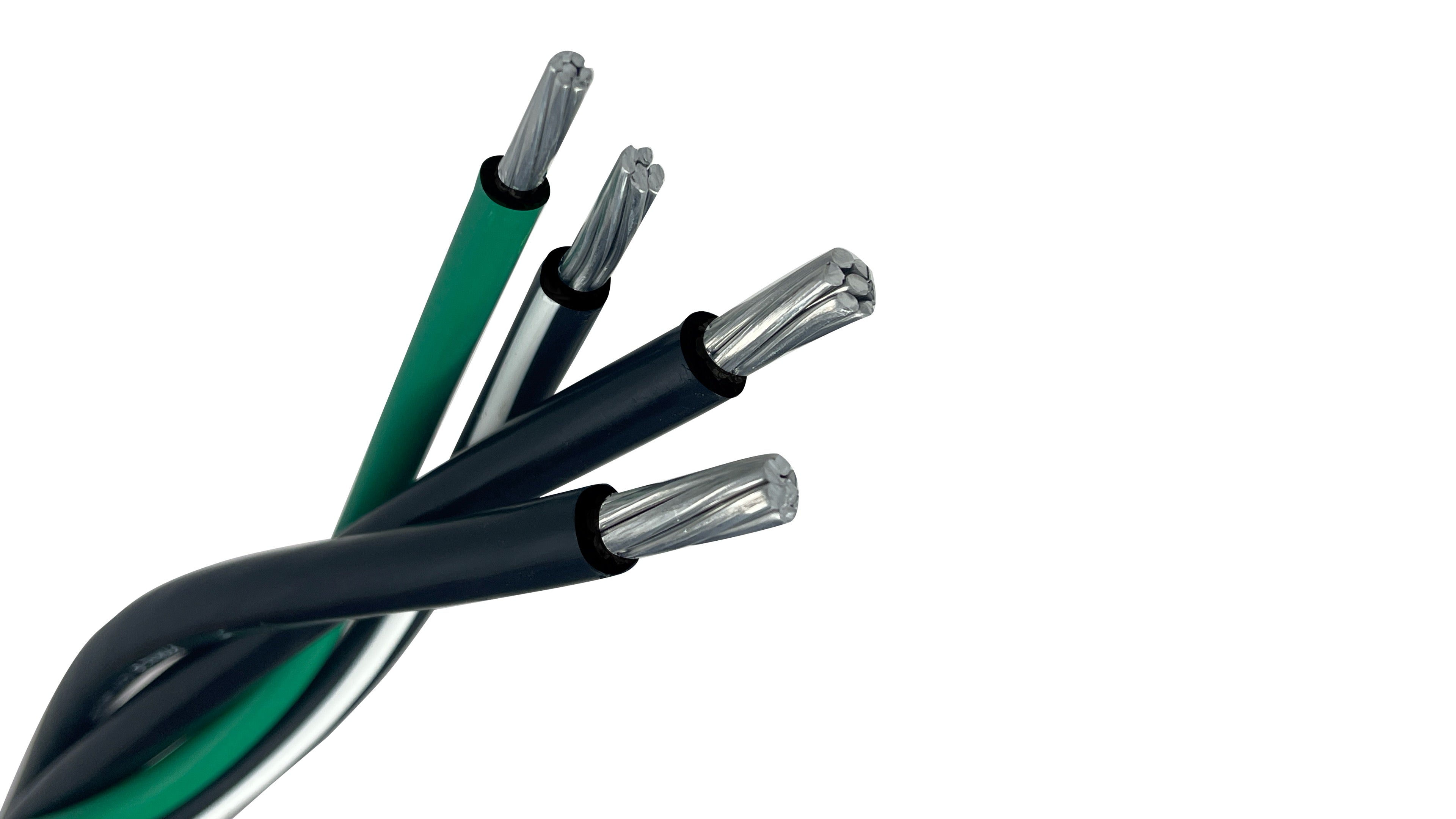

"Engineered for safe, cost-effective, and long-term underground power delivery, this 2-2-4-6 Aluminum Mobile Home Feeder (MHF) cable is the industry standard for hooking up secondary electrical services. Designed with four dedicated conductors to support modern electrical code requirements, it features a highly resilient cross-linked polyethylene (XLPE) insulation that allows for direct burial without the need for expensive conduit runs."
When running underground power to a mobile or manufactured home, managing material and labor costs is everything. This 2-2-4-6 Aluminum MHF Cable delivers a code-compliant, 100-Amp capacity at a fraction of the cost of copper. Built with rugged AA-8000 aluminum alloy, it features four pre-bundled wires: two #2 hots, one #4 neutral, and one #6 ground. Because each wire is wrapped in sunlight-resistant XLPE insulation, you can drop this cable directly into a trench without running expensive conduit, saving you serious time and money on the job site.
100-Amp Direct Burial Rating: Engineered explicitly for subsurface trenching, removing the expense and time of running a continuous protective conduit system.
Premium AA-8000 Aluminum: Built with compact stranded 8000-series aluminum alloy for excellent conductivity, reduced cable weight, and high resistance to kinking during field layout.
Triple-Rated Protection: Insulated and listed under USE-2 / RHH / RHW-2, allowing it to seamlessly transition from deep underground trenches right up into outdoor breaker enclosures.
Sunlight & Weather Resistant: The heavy-duty black XLPE jacket completely blocks out damage from intense UV rays and aggressive, highly alkaline subsurface soil chemicals.
ENGINEERING OVERVIEW
Conductor Setup: 4-Conductor (Two #2 AWG Lines, One #4 AWG Neutral, One #6 AWG Ground)
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy per ASTM B-800 & B-801
Insulation Type: Cross-Linked Polyethylene (XLPE - USE-2 / RHH / RHW-2 Rated)
Voltage Rating: 600 Volts
Ampacity Rating: 100 Amps (Direct Burial / 90°C Wet or Dry Locations)
Overall Diameter: 0.944 inches (23.97 mm)
Approx. Weight: 0.295 lbs per foot (295 lbs per 1,000 ft)
UL Listing Numbers: UL 44, UL 854
Compliance Standards:Â ICEA S-95-658 / NEMA WC-70
Mobile & Manufactured Homes: Serving as the dedicated, sub-surface 100A service lateral running from the outdoor service equipment pedestal directly to the home’s interior breaker panel.
Campground & RV Park Grids: Extensively utilized to distribute high-capacity, reliable underground power loops to individual hookup stations.
Detached Garages & Workshops: An exceptionally cost-effective alternative for residential homeowners running sub-panel feeds to detached backyard sheds, barns, or secondary structures.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. Always cross-reference local codes and NEC Article 310.15(B)(7) for dwelling ampacity requirements to ensure your final feeder length matches your local electrical authority guidelines.
Â
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.944 in. / 23.978 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | USE-2/RHH/RHW-2 XLPE |
| UL Listing Numbers | UL 44, UL 854 |
| Voltage Rating | 600V |
| Ampacity Rating | 100 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 for Type RHH or RHW-2 UL 854 for Type USE-2 Insulated Wire National Electric Code NFPA 70 (NEC) ICEA S-95-658/NEMA WC-70 |
| Miscellaneous Information | All values are nominal and subject to correction For dwelling ampacity, see NEC article 310.15(B)(7) |
| RoHS Compliance | Yes |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.295 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : 2246MHF
SKU : 2246MHF-100
Parent SKU : 2246MHF
SKU : 2246MHF-100
"Engineered for safe, cost-effective, and long-term underground power delivery, this 2-2-4-6 Aluminum Mobile Home Feeder (MHF) cable is the industry standard for hooking up secondary electrical services. Designed with four dedicated conductors to support modern electrical code requirements, it features a highly resilient cross-linked polyethylene (XLPE) insulation that allows for direct burial without the need for expensive conduit runs."
When running underground power to a mobile or manufactured home, managing material and labor costs is everything. This 2-2-4-6 Aluminum MHF Cable delivers a code-compliant, 100-Amp capacity at a fraction of the cost of copper. Built with rugged AA-8000 aluminum alloy, it features four pre-bundled wires: two #2 hots, one #4 neutral, and one #6 ground. Because each wire is wrapped in sunlight-resistant XLPE insulation, you can drop this cable directly into a trench without running expensive conduit, saving you serious time and money on the job site.
100-Amp Direct Burial Rating: Engineered explicitly for subsurface trenching, removing the expense and time of running a continuous protective conduit system.
Premium AA-8000 Aluminum: Built with compact stranded 8000-series aluminum alloy for excellent conductivity, reduced cable weight, and high resistance to kinking during field layout.
Triple-Rated Protection: Insulated and listed under USE-2 / RHH / RHW-2, allowing it to seamlessly transition from deep underground trenches right up into outdoor breaker enclosures.
Sunlight & Weather Resistant: The heavy-duty black XLPE jacket completely blocks out damage from intense UV rays and aggressive, highly alkaline subsurface soil chemicals.
ENGINEERING OVERVIEW
Conductor Setup: 4-Conductor (Two #2 AWG Lines, One #4 AWG Neutral, One #6 AWG Ground)
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy per ASTM B-800 & B-801
Insulation Type: Cross-Linked Polyethylene (XLPE - USE-2 / RHH / RHW-2 Rated)
Voltage Rating: 600 Volts
Ampacity Rating: 100 Amps (Direct Burial / 90°C Wet or Dry Locations)
Overall Diameter: 0.944 inches (23.97 mm)
Approx. Weight: 0.295 lbs per foot (295 lbs per 1,000 ft)
UL Listing Numbers: UL 44, UL 854
Compliance Standards:Â ICEA S-95-658 / NEMA WC-70
Mobile & Manufactured Homes: Serving as the dedicated, sub-surface 100A service lateral running from the outdoor service equipment pedestal directly to the home’s interior breaker panel.
Campground & RV Park Grids: Extensively utilized to distribute high-capacity, reliable underground power loops to individual hookup stations.
Detached Garages & Workshops: An exceptionally cost-effective alternative for residential homeowners running sub-panel feeds to detached backyard sheds, barns, or secondary structures.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. Always cross-reference local codes and NEC Article 310.15(B)(7) for dwelling ampacity requirements to ensure your final feeder length matches your local electrical authority guidelines.
Â
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.944 in. / 23.978 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | USE-2/RHH/RHW-2 XLPE |
| UL Listing Numbers | UL 44, UL 854 |
| Voltage Rating | 600V |
| Ampacity Rating | 100 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 for Type RHH or RHW-2 UL 854 for Type USE-2 Insulated Wire National Electric Code NFPA 70 (NEC) ICEA S-95-658/NEMA WC-70 |
| Miscellaneous Information | All values are nominal and subject to correction For dwelling ampacity, see NEC article 310.15(B)(7) |
| RoHS Compliance | Yes |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.295 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||
The primary difference is NEC code compliance for residential structures. Standard quadruplex URD cable does not have a code-recognized insulation type (like RHW-2 or USE-2 printed on the individual wires) and usually features a yellow-striped neutral. MHF cable is specifically Type USE-2/RHH/RHW-2 rated, possesses a fully white neutral and a dedicated green ground conductor, and is legally permitted by the National Electrical Code (NEC Article 550) to enter the interior of a home to hook up to the main breaker panel.
Yes, absolutely. MHF is a Type USE-2 (Underground Service Entrance) cable engineered with rugged Cross-Linked Polyethylene (XLPE) insulation. It is explicitly rated for direct burial in the earth without the need for conduit for the main trench run.
Pro Tip: While the horizontal run in the trench can be direct-buried, you must protect the cable with a rigid conduit (like Schedule 80 PVC) where it transitions out of the ground up to the meter pedestal and where it enters the home's foundation
According to NEC Table 300.5, the standard burial depth for direct-buried MHF cable (rated up to 600V) is 24 inches deep in normal soil. If you choose to run the entire length of the MHF cable inside a approved PVC conduit system, in many jurisdictions, the minimum burial depth requirement drops to 18 inches.
Note: Always check with your local electrical inspector, as some municipal jurisdictions have stricter trench depth requirements.
Mobile Home Feeder (MHF) cable is a heavy-duty underground service entrance cable specifically designed to supply electrical power from an outdoor service pedestal or meter main to the distribution panelboard inside a mobile home or manufactured home. It features a quadruplex design consisting of two phase conductors (black), a neutral conductor (marked with a yellow stripe), and a dedicated grounding wire, making it fully code-compliant for safe, direct-burial power delivery. While engineered for manufactured homes, its cost-effectiveness makes this cable highly popular for running 100-Amp sub-panels to detached garages, workshops, and barns.
The amp rating for 2-2-4-6 Aluminum MHF is 100 Amps (Direct Burial / 90°C Wet or Dry Locations)
