2/0 Copper XHHW-2 Building Wire

Parent SKU :  XHW2/0

SKU :  XHW2/0-250-BK

ABRASION & SUNLIGHT-RESISTANT XLP INSULATION FOR EASY PULL & MAXIMUM DURABILTY
Download Spec Sheet
2/0 Copper XHHW-2 Wire, 600V Black XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.

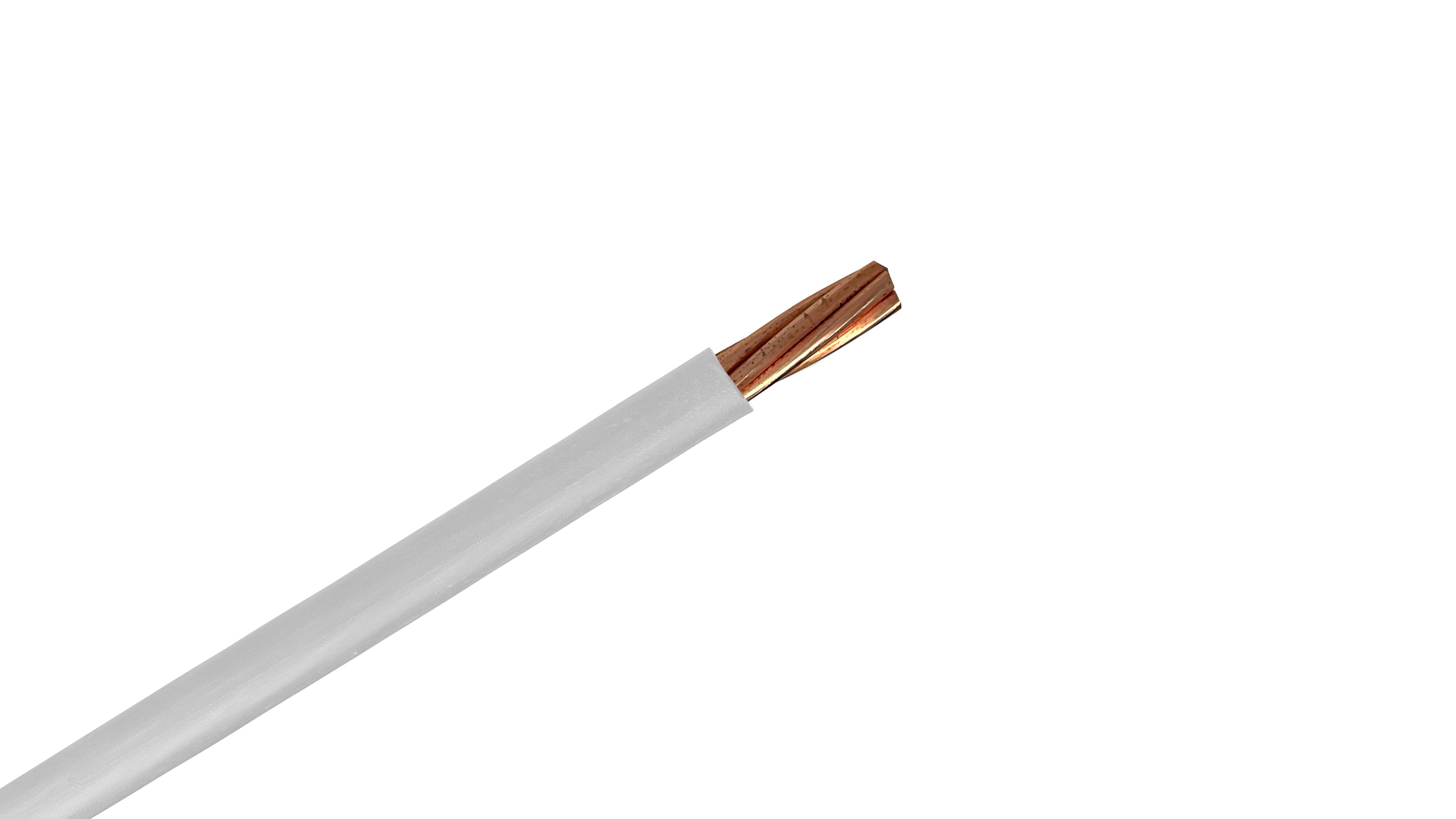

2/0 Copper XHHW-2 Wire, 600V White XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.
2/0 Copper XHHW-2 Wire, 600V Red XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.

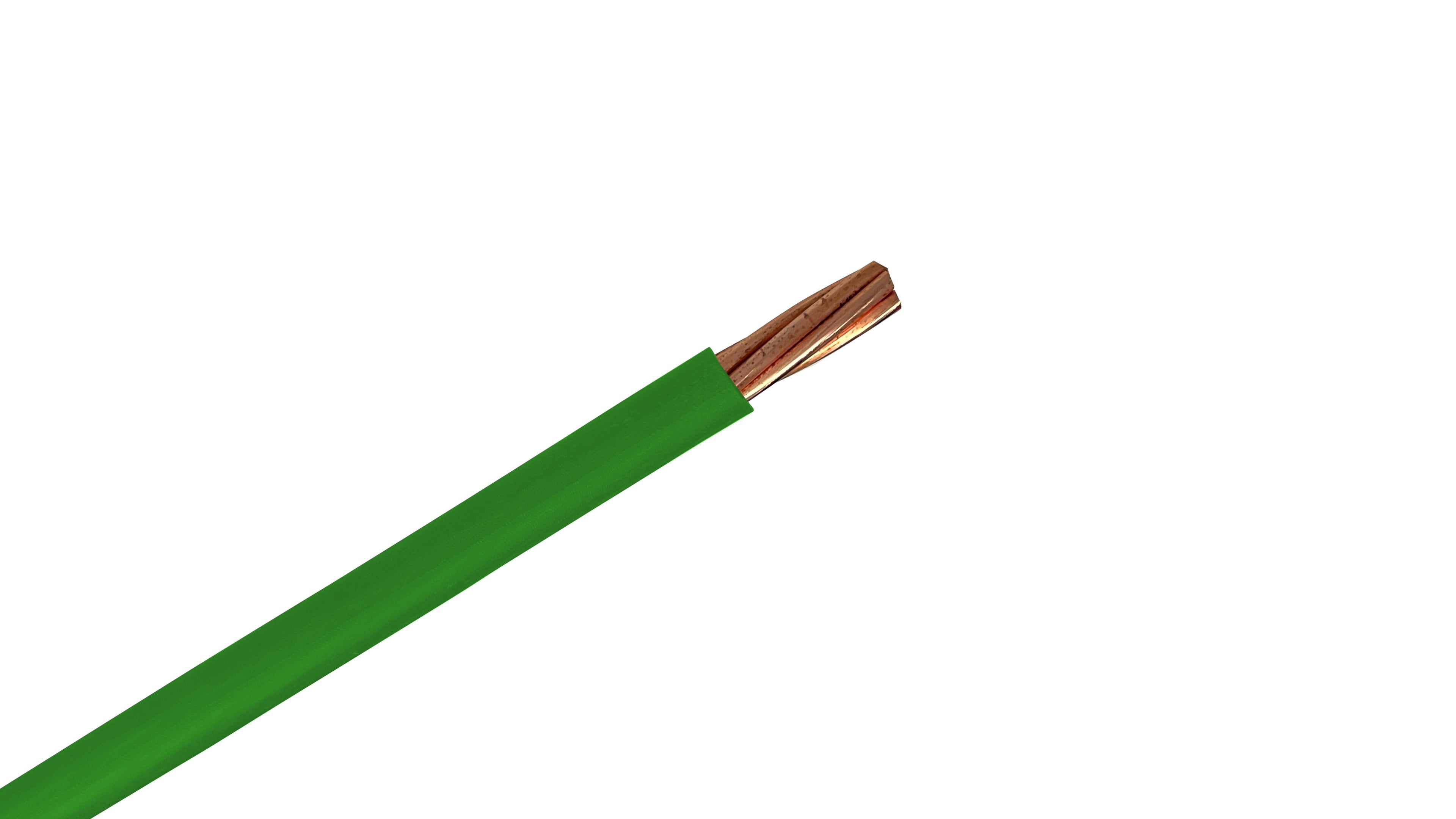

2/0 Copper XHHW-2 Wire, 600V Green XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.
2/0 Copper XHHW-2 Wire, 600V Blue XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.
2/0 Copper XHHW-2 Wire, 600V Orange XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.

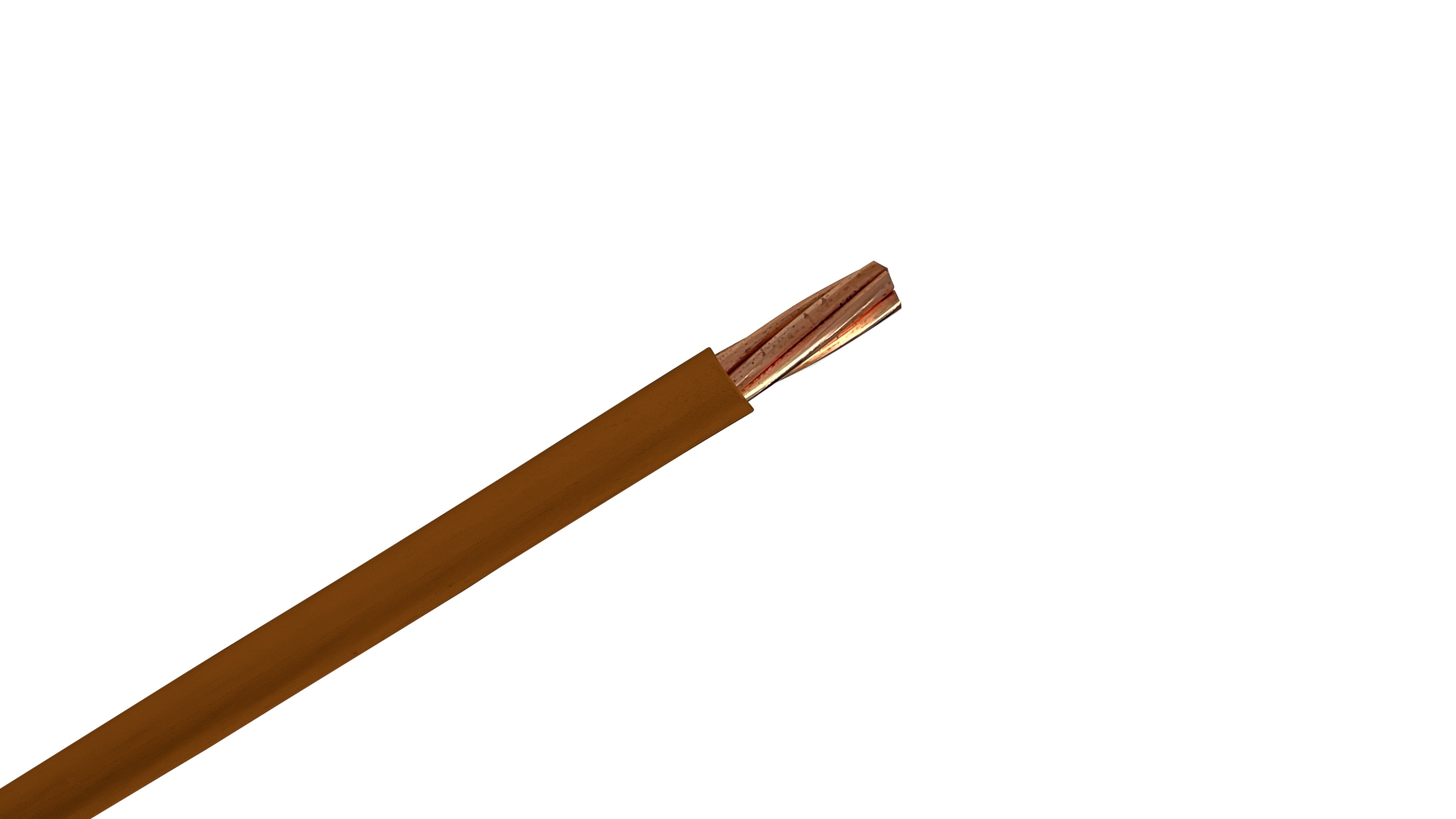

2/0 Copper XHHW-2 Wire, 600V Brown XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.

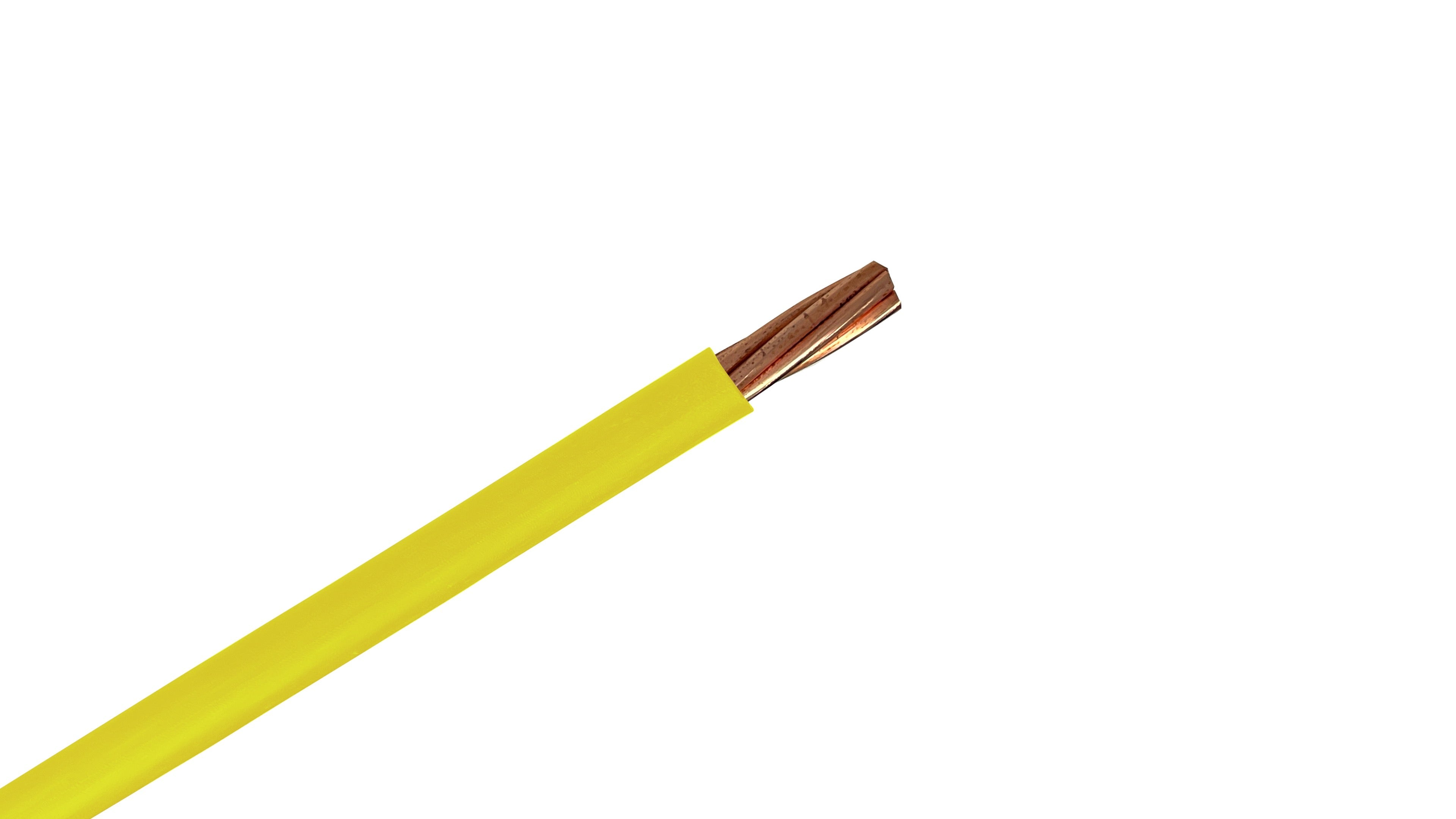

2/0 Copper XHHW-2 Wire, 600V Yellow XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.

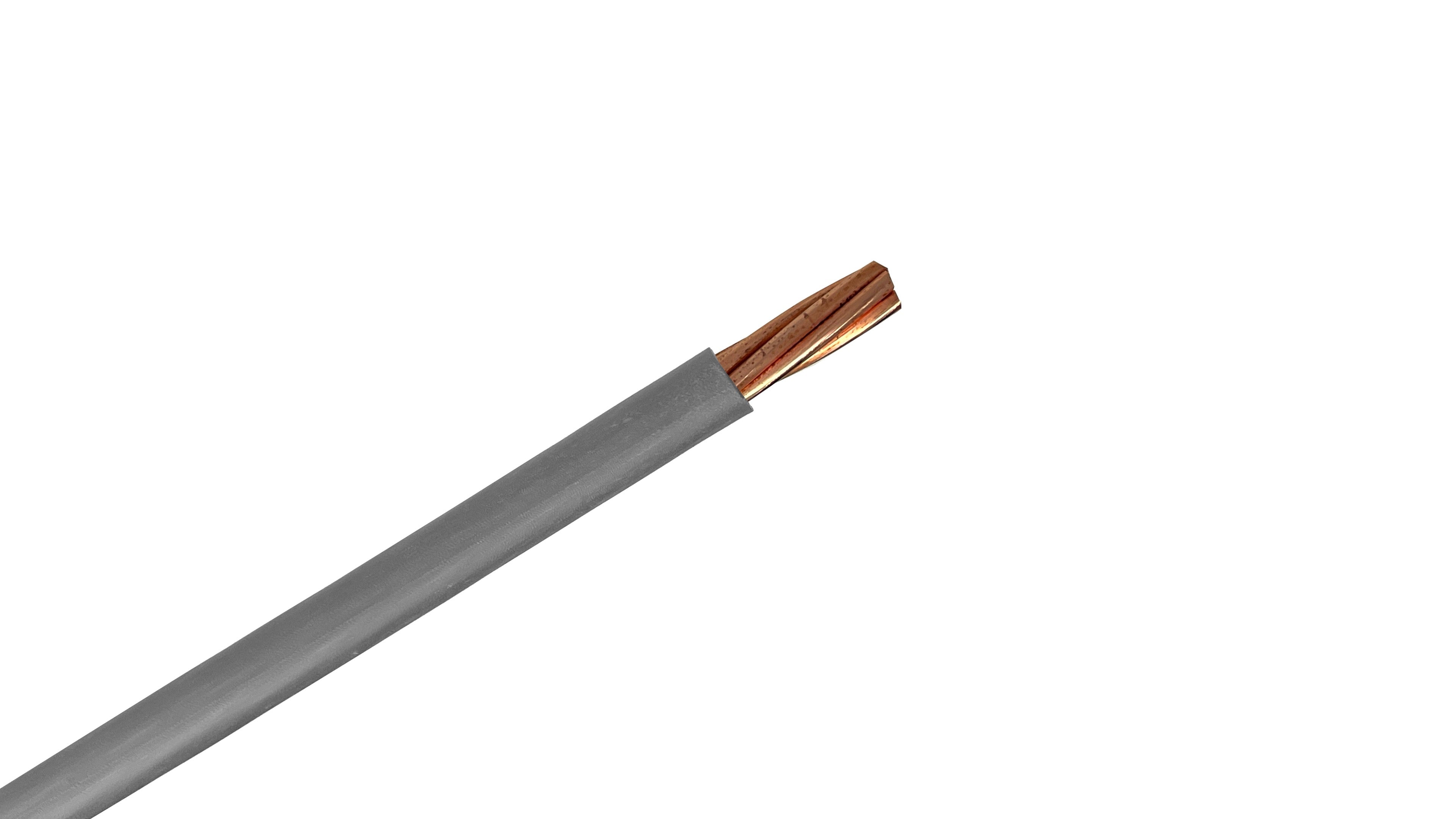

2/0 Copper XHHW-2 Wire, 600V Gray XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.
2/0 Copper XHHW-2 Wire, 600V Purple XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.

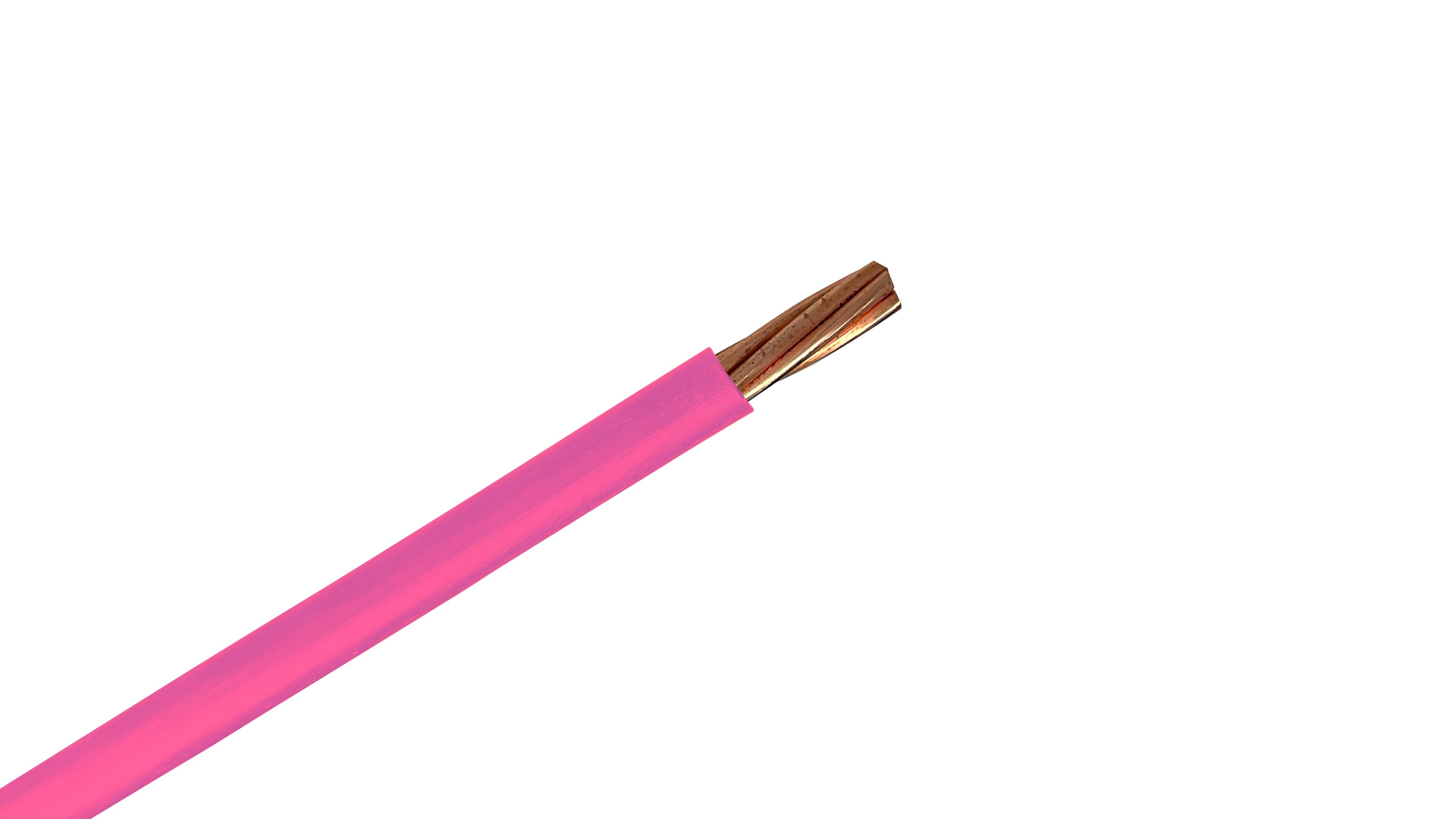

2/0 Copper XHHW-2 Wire, 600V Pink XLPE Insulated Power Cable, 90°C Wet/Dry Rated Industrial Copper Conductor.
1/11
Wire Size 2/0
Conductor Material Stranded Copper
Strand Count 19
Outer Diameter 0.53 in. / 13.462 mm
Ampacity Rating 195
Weight per Foot 0.453 lb
Download Spec Sheet

Product Details

Product Details

APPLICATION:
XHHW-2 Copper Wire is primarily used for power distribution in conduit or other recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code. The wire is suitable for use in wet or dry locations at temperatures not exceeding 90°C and is Dual-Rated for 600V or 1000V. 1/0AWG and larger are approved for cable tray use.

CONDUCTOR:
Soft drawn bare copper in compressed stranding.

INSULATION:
Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP), low coefficient of friction. It is available in ten solid colors.

AMP RATING:
@ 90°C - 195 Amps


All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2/0
Conductor Material Stranded Copper
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 0.53 in. / 13.462 mm
Conductor Count 1
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene
UL Listing Numbers UL 44, UL 1685

Technical Specifications

Voltage Rating 600V
Ampacity Rating 195
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL 44
UL 1685
RoHS Compliant
ASTM B3, B8
ANSI/ICEA S-95-658/NEMA WC-70
NFPA 70 NEC
XLPE -40°C FT1
Federal Spec A-A-59553
Miscellaneous Information All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsMain service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits.
Common Uses
  • Service Entrances
  • Branch Circuitry
  • Underground Conduit
  • Battery Storage
  • Water Treatment Plants
  • Refineries
  • Chemical Plants
  • and Inverter Connections.

Packaging & Dimensions:

Weight per Foot 0.453 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

2/0 Copper XHHW-2 Building Wire

Parent SKU :  XHW2/0

SKU :  XHW2/0-250-BK

ABRASION & SUNLIGHT-RESISTANT XLP INSULATION FOR EASY PULL & MAXIMUM DURABILTY
In Stock
Ships in 1-2 days

Parent SKU :  XHW2/0

SKU :  XHW2/0-250-BK

Please select
Please select an option
$1,675/ea.
$3,332/ea.
$6,630/ea.
$16,490/ea.
$32,810/ea.
$6.80/ft.
Please select an option
Min: 250 ft., Max: 20,000 ft.
Spool (250 ft.)
$1,675.00
Please select an option
Maximum reached, contact us for custom orders
Contact Us
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Product Details

Product Details

APPLICATION:
XHHW-2 Copper Wire is primarily used for power distribution in conduit or other recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code. The wire is suitable for use in wet or dry locations at temperatures not exceeding 90°C and is Dual-Rated for 600V or 1000V. 1/0AWG and larger are approved for cable tray use.

CONDUCTOR:
Soft drawn bare copper in compressed stranding.

INSULATION:
Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP), low coefficient of friction. It is available in ten solid colors.

AMP RATING:
@ 90°C - 195 Amps


All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2/0
Conductor Material Stranded Copper
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 0.53 in. / 13.462 mm
Conductor Count 1
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene
UL Listing Numbers UL 44, UL 1685

Technical Specifications

Voltage Rating 600V
Ampacity Rating 195
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL 44
UL 1685
RoHS Compliant
ASTM B3, B8
ANSI/ICEA S-95-658/NEMA WC-70
NFPA 70 NEC
XLPE -40°C FT1
Federal Spec A-A-59553
Miscellaneous Information All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsMain service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits.
Common Uses
  • Service Entrances
  • Branch Circuitry
  • Underground Conduit
  • Battery Storage
  • Water Treatment Plants
  • Refineries
  • Chemical Plants
  • and Inverter Connections.

Packaging & Dimensions:

Weight per Foot 0.453 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.
2/0 Copper XHHW-2 Building Wire
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 2/0
Conductor Material Stranded Copper
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 0.53 in. / 13.462 mm
Conductor Count 1
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene
UL Listing Numbers UL 44, UL 1685

Technical Specifications

Voltage Rating 600V
Ampacity Rating 195
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL 44
UL 1685
RoHS Compliant
ASTM B3, B8
ANSI/ICEA S-95-658/NEMA WC-70
NFPA 70 NEC
XLPE -40°C FT1
Federal Spec A-A-59553
Miscellaneous Information All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC.
RoHS Compliance Yes

Usage & Installation:

Primary ApplicationsMain service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits.
Common Uses
  • Service Entrances
  • Branch Circuitry
  • Underground Conduit
  • Battery Storage
  • Water Treatment Plants
  • Refineries
  • Chemical Plants
  • and Inverter Connections.

Packaging & Dimensions:

Weight per Foot 0.453 lb
