Parent SKU : FAP-USHDNY14-2P
SKU : FAP-USHDNY14-2P-500
APPLICATION:

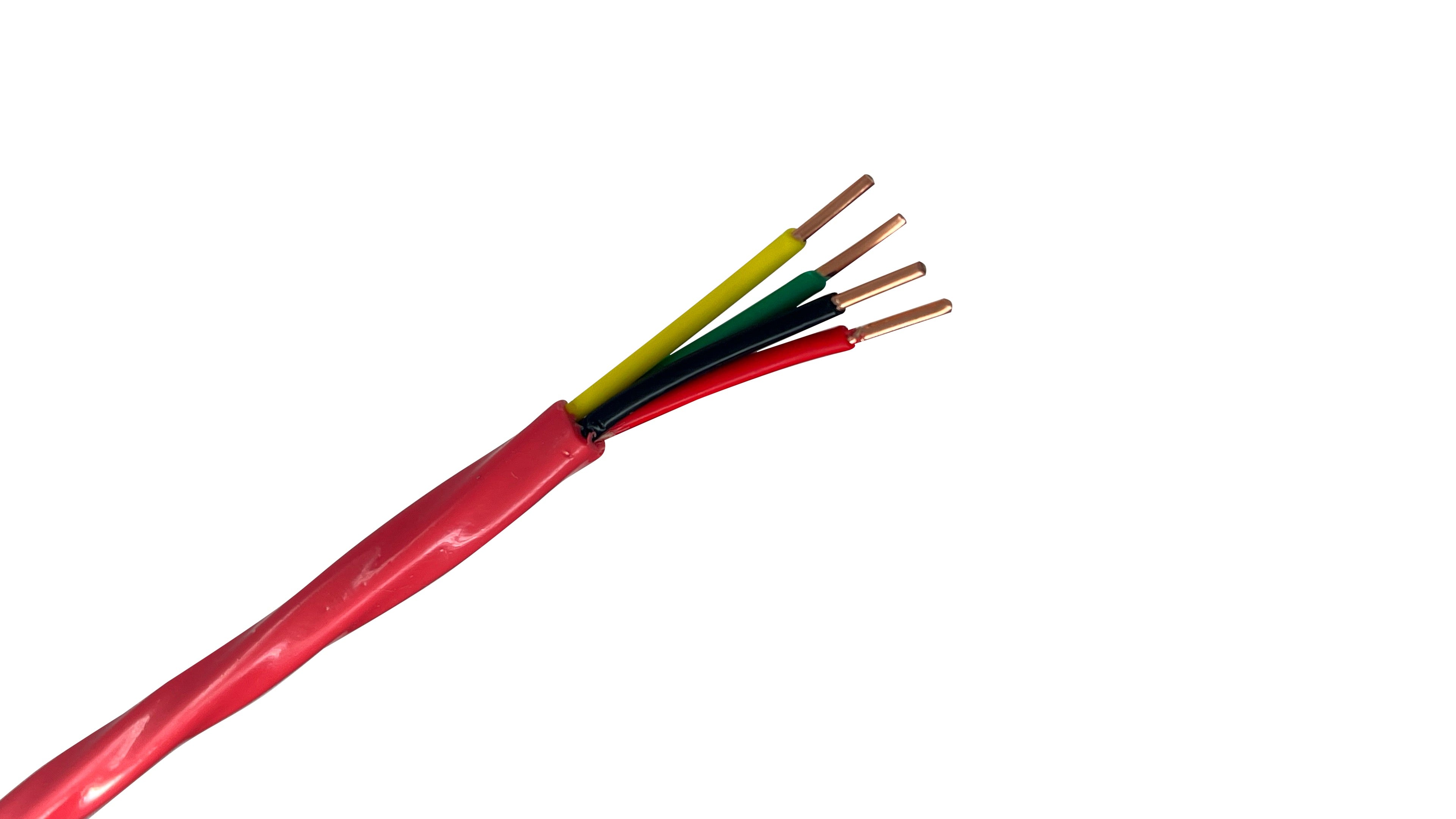

Our 14/4 FPLP NYC Certified Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Pair 1 - Black and Red
Pair 2 - Yellow and Green
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
Why the 14/4 200°C Cable is the NYC Standard:
Local Law 39 (LL39) Certified: Specifically manufactured with the required NYC-certified print legend to ensure your project passes DOB electrical inspections.
High-Capacity 14 AWG Conductors: The 14-gauge solid copper construction is designed to overcome voltage drop on long runs, ensuring synchronized strobes and speakers receive full power.
Premium 200°C FEP Insulation: Built with Fluorinated Ethylene Propylene (FEP), this cable offers extreme heat resistance far superior to standard 75°C or 105°C plenum wire.
4-Conductor Versatility: The 4-wire (2-pair) configuration allows for efficient wiring of complex notification zones or bi-directional communication loops.
Plenum Rated (FPLP): UL-listed for installation in air-handling spaces without the need for additional conduit.
Installer’s Note:
"To meet Local Law 39 (LL39) requirements for high-output NYC speaker strobe loops and notification zones, this 14/4 Unshielded 200°C FPLP Fire Alarm cable is an ideal choice. The heavy-duty 14-gauge copper ensures your voltage stays within spec on long vertical runs, while the FEP jacket provides peace of mind that the system will remain operational during extreme thermal events."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.291 in. / 7.39 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 804 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.087 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : FAP-USHDNY14-2P
SKU : FAP-USHDNY14-2P-500
Parent SKU : FAP-USHDNY14-2P
SKU : FAP-USHDNY14-2P-500
APPLICATION:
Our 14/4 FPLP NYC Certified Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Pair 1 - Black and Red
Pair 2 - Yellow and Green
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
Why the 14/4 200°C Cable is the NYC Standard:
Local Law 39 (LL39) Certified: Specifically manufactured with the required NYC-certified print legend to ensure your project passes DOB electrical inspections.
High-Capacity 14 AWG Conductors: The 14-gauge solid copper construction is designed to overcome voltage drop on long runs, ensuring synchronized strobes and speakers receive full power.
Premium 200°C FEP Insulation: Built with Fluorinated Ethylene Propylene (FEP), this cable offers extreme heat resistance far superior to standard 75°C or 105°C plenum wire.
4-Conductor Versatility: The 4-wire (2-pair) configuration allows for efficient wiring of complex notification zones or bi-directional communication loops.
Plenum Rated (FPLP): UL-listed for installation in air-handling spaces without the need for additional conduit.
Installer’s Note:
"To meet Local Law 39 (LL39) requirements for high-output NYC speaker strobe loops and notification zones, this 14/4 Unshielded 200°C FPLP Fire Alarm cable is an ideal choice. The heavy-duty 14-gauge copper ensures your voltage stays within spec on long vertical runs, while the FEP jacket provides peace of mind that the system will remain operational during extreme thermal events."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.291 in. / 7.39 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 804 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.087 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||
New York City requires fire alarm cables to meet specific standards beyond standard NEC rules, specifically Local Law 39 (LL39) and Local Law 5. This means the cable must feature specialized Fluoropolymer insulation (like FEP) that is strictly flame-retardant and low-smoke. These cables carry a high temperature rating (often 200°C), providing a critical safety margin for high-rise life safety systems that standard fire wire cannot match.
Unshielded: Ideal for high-ampacity Notification Appliance Circuits (NACs), high-draw relay controls, and multi-signal pulls where electromagnetic interference (EMI) is not a factor.
Shielded: Necessary for data-heavy addressable loops (SLC) or runs where the cable is placed near high-voltage lines or large electric motors (like elevator machines) to prevent signal distortion.
14/4 Unshielded FPLP NYC cable is used for the most power-intensive parts of a system:
Important Note: Consult Your Licensed NYC Electrician
While our cables are NYC Approved and manufactured to meet Local Law 39 standards, fire alarm requirements can vary based on your specific building type, occupancy, and the latest FDNY bulletins.
NYC Approved FPLP (Plenum): Must be used in "plenum" spaces (areas used for air circulation). They feature low-smoke, high-fire-resistance jackets.
NYC Approved FPLR (Riser): Used for vertical runs between floors.
Standard Practice: In NYC commercial construction, engineers almost always specify FPLP (Plenum) even for non-plenum areas to ensure maximum system survivability and compliance with Local Law 39.
Choosing 14 AWG is a proactive measure against Voltage Drop and Line Loss. In NYC high-rises, a circuit may pull more amperage than thinner wires can handle without losing power. Using 14/4 provides a "safety cushion" that ensures all sirens, strobes, and dampers operate at 100% capacity to pass strict FDNY functional inspections.
Important Note: Consult Your Licensed NYC Electrician
While our cables are NYC Approved and manufactured to meet Local Law 39 standards, fire alarm requirements can vary based on your specific building type, occupancy, and the latest FDNY bulletins.
Yes. This is an FPLP (Fire Power-Limited Plenum) rated cable. It is specifically engineered for installation in air-handling spaces, drop ceilings, and vertical shafts. Its high-fire-resistance jacket allows for installation without the need for conduit in many NYC commercial interior spaces.
This cable is the standard for Commercial High-Rises, Hospitals, Schools, and Airports. Any project that prioritizes "Maximum Survivability" and requires the system to remain operational under extreme heat conditions will mandate this specific high-performance cable.
⚠️ Pro Note: Verify with Your Licensed NYC Electrician
New York City fire codes are unique and frequently updated. We strongly recommend confirming your wire schedule and gauge requirements with your Licensed Master Electrician or Fire Alarm Designer before placing your order to ensure full compliance with the latest FDNY and DOB bulletins.
