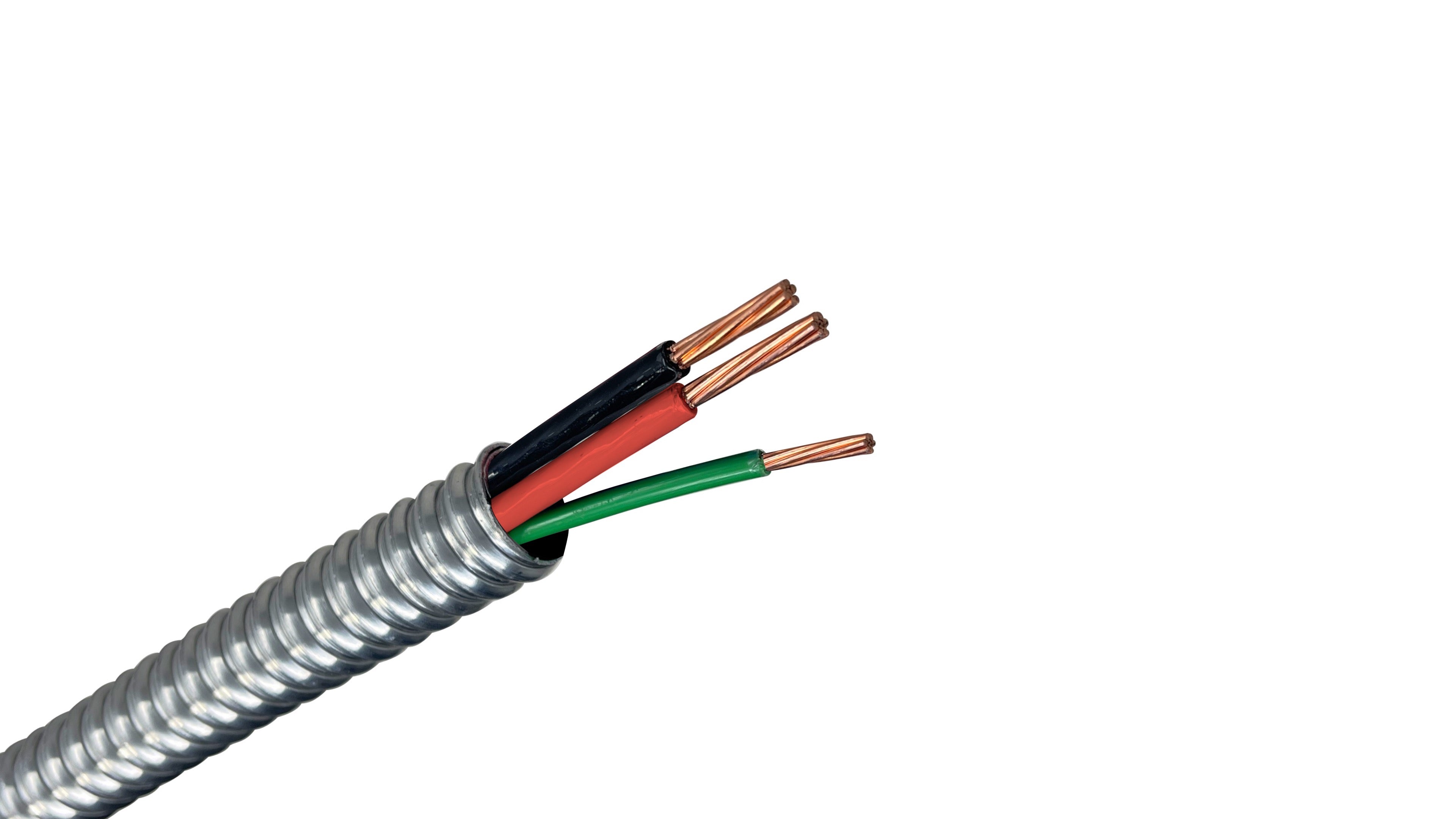

10/2 Stranded Copper MC Cable W/ Ground (Black, Red)

10/2 Stranded Copper MC Cable W/ Ground is a heavy-duty 600V Metal-Clad (MC) building wire engineered for higher-amperage 20A and 30A branch circuits, long-distance voltage-drop runs, and commercial HVAC equipment in commercial, industrial, institutional, and multi-residential applications. Constructed with two flexible 10 AWG Class B stranded bare copper conductors, an insulated 10 AWG green ground wire, THHN/THWN-2 insulation, protective binder tape, and an overall aluminum interlocked armor, it delivers exceptional crush resistance while eliminating the high labor costs of pulling wire through conduit.

Key Features & Benefits

• Labor-Saving Metal-Clad Design: Pre-armored assembly eliminates the time-consuming process of pulling individual conductors through conduit, lowering jobsite labor costs and accelerating project timelines.

• 30A Branch & Feeder Capability: Heavy-duty 10 AWG copper conductors support up to 30A circuit breakers for dedicated equipment feeds, water heaters, and commercial appliances.

• High-Flex Stranded Copper: Built with Class B stranded bare copper conductors to provide superior flexibility, easier pulls, and smooth terminations inside junction boxes and panel boards.

• Dual-Rated THHN/THWN-2 Insulation: High-dielectric PVC insulation with a clear nylon outer skin provides superior heat, flame, moisture, and gasoline/oil resistance rated for 90°C dry applications.

• Lightweight Aluminum Interlocked Armor: Tough interlocked aluminum armor (AIA) shields internal conductors from physical damage, crushing, and abrasion while maintaining maximum bendability.

• Integrated Green Ground Conductor: Includes a dedicated 10 AWG green THHN/THWN-2 insulated stranded copper ground conductor for complete circuit safety.

Technical Specifications

Engineering Overview

• Application: Branch, feeder, and distribution circuits in commercial, industrial, institutional, and multi-residential power, lighting, control, and signal systems.

• Voltage Rating: 600 Volts.

• Ampacity: 40 Amps @ 90°C (Based on 30°C ambient temperature per NEC Table 310.16; refer to NEC 240.4(D) for overcurrent protection limits).

• Conductor Material: Class B stranded soft-drawn bare copper (2 conductors, 10 AWG).

• Insulation: PVC (0.020" thickness) with clear Nylon jacket (0.004" thickness) (THHN/THWN-2).

• Grounding Conductor: One 10 AWG green THHN/THWN-2 insulated stranded copper conductor.

• Phase Identification: Black, Red phase conductors

• Armor: Overall lightweight aluminum interlocked armor.

• Diameter over Armor: 0.586 inches (14.88 mm).

• Approximate Net Weight: 174 lbs / 1,000 ft.

• Temperature Rating: -40°C to +90°C Dry.

• Approvals & Compliance: UL Listed (UL 83, UL 1569, UL 1581), IEEE 1202 Vertical Tray Flame Test (70,000 BTU/hr), ASTM B3 & B8, Federal Spec A-A-59544, NEC Articles 230.43, 300.22, 330, 518.4, 520.5, 530, 545.4, 645. Hazardous Locations: Class I Div. 2, Class II Div. 2, Class III Div. 1 & 2.

** All values are nominal and subject to correction

• 30A Dedicated Equipment Feeds: Powers 120V or 208V/240V dedicated equipment loads, including commercial HVAC units, water heaters, small air compressors, and machinery motors.
• Voltage-Drop Compensation: Preferred choice for long 20A branch circuit runs where upsizing from 12 AWG to 10 AWG is necessary to mitigate excessive voltage drop over long distance runs.
• Exposed & Concealed Wiring: Approved for exposed runs mounted to building structural members or concealed runs installed above dropped ceilings and inside drywall stud cavities.
• Places of Assembly: Fully compliant with NEC rules for places of assembly accommodating 100 or more people, including auditoriums, theaters, studios, and commercial facilities.
• Environmental Air Spaces (Plenums): Safe for installation in environmental air-handling spaces and plenums per NEC Article 300.22.
• Approved Cable Trays & Raceways: Ideal for distribution routing in approved industrial cable trays, open ladder racks, and wireways without requiring rigid metal conduit.

Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with NEC and local electrical regulations. Always consult with a licensed electrician prior to installation.
