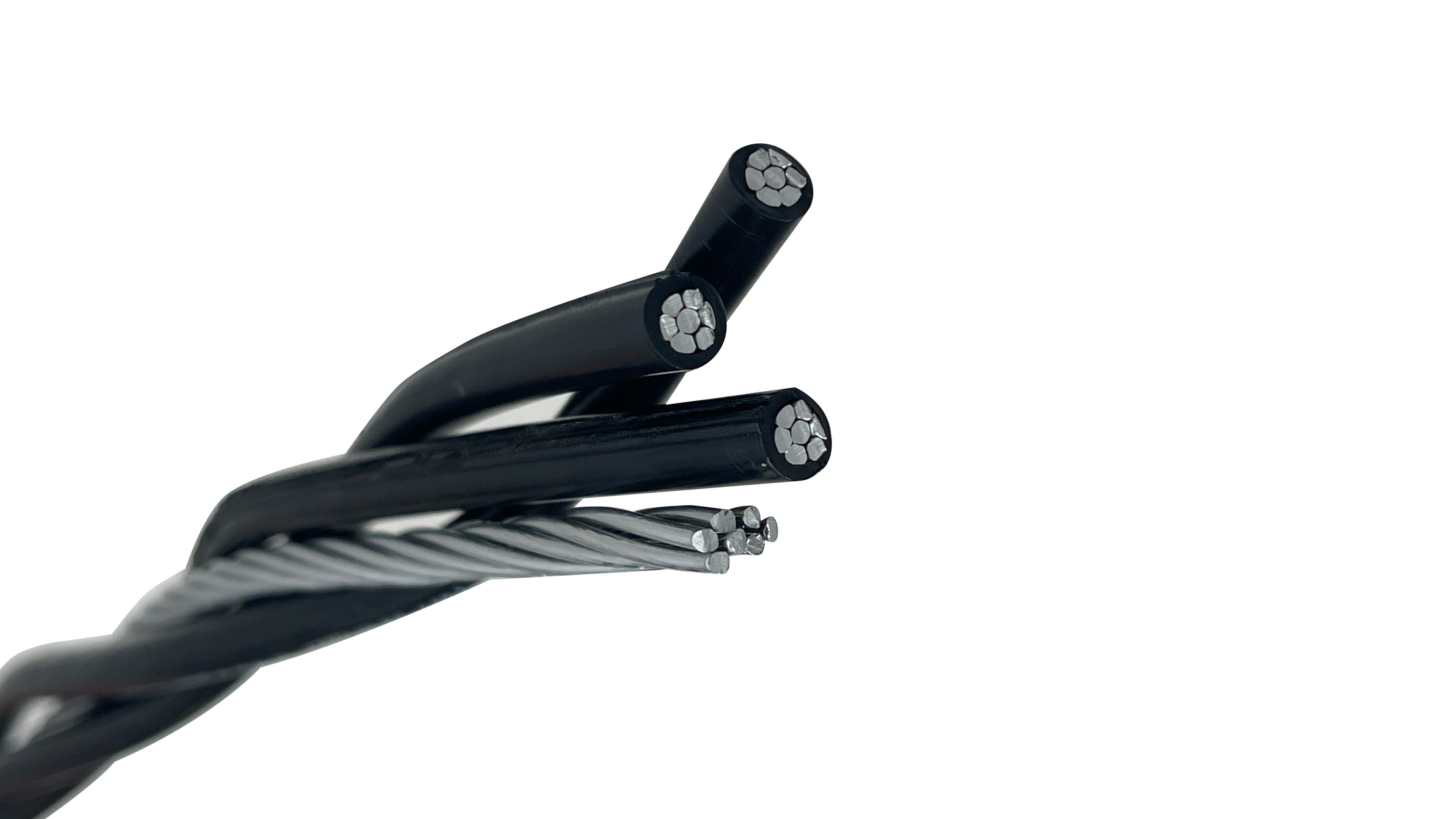

1/0-1/0-1/0-1/0 Quadruplex Overhead Aluminum Service Drop Cable, Costena

Parent SKU :  COS-4SDP

SKU :  COS-4SDP-100

600 VOLT SUNLIGHT RESISTANT XLPE JACKET WITH BARE NEUTRAL MESSENGER.
Download Spec Sheet
1/0-1/0-1/0-1/0 Quadruplex Overhead Aluminum Service Drop Cable, Costena
Wire Size 1/0
Conductor Material Aluminum
Conductor Type Stranded
Outer Diameter 1.14 in.
Conductor Count 3
Voltage Rating 600
Ampacity Rating 180
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Quadruplex Service Drop Aluminum Conductor Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75ºC maximum for polyethylene insulation or 90ºC maximum for cross linked insulation.

CONDUCTOR:
Concentric strand or compressed 1350-H19 series aluminum conductor.

CONDUCTOR SIZE:
1/0

BARE NEUTRAL MESSENGER:
Concentric strand AAC, ACSR, or AAAC 6201 alloy neutral messenger.

MESSENGER SIZE:
1/0

MESSENGER STRANDING:
6/1

BARE NEUTRAL BREAKING STRENGTH:
4,380 lbs.

ASSEMBLY:
Four twisted conductors, three insulated aluminum phase conductors and a bare neutral messenger, which also serves as the self-supporting element.

INSULATION:
Black cross linked polyethylene (XLP) insulation.

AMP RATING:
90ºC - 180 Amps



All values are nominal and subject to correction *Designated sizes are ACSR 6/1, diameter, equivalent resistivity per ASTM B399 for 6201. **Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 1/0
Conductor Material Aluminum
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 1.14 in.
Conductor Count 3
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene

Technical Specifications

Voltage Rating 600
Ampacity Rating 180
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ASTM B-230 Aluminum 1350–H19 Wire for Electrical Purposes
ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B-232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
ICEA S-76-474 Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts
RUS Accepted
Miscellaneous Information All values are nominal and subject to correction *Designated sizes are ACSR 6/1, diameter, equivalent resistivity per ASTM B399 for 6201. **Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun.

Usage & Installation

Primary ApplicationsOverhead Electrical Service
Common Uses
  • Residential Power Supply
  • Commercial and Industrial Power Supply
  • Temporary Service for Construction Sites
  • Outdoor Lighting
  • Secondary Distribution Between Poles.

Packaging & Dimensions:

Weight per Foot 0.575 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Aluminum Quadruplex Service Drop Cable

Wire America | Wire Flexibility Series

This video shows the flexibility, size, jacket detail, conductor material and stranding of the 6 AWG Chola Aluminum Quadruplex Service Drop Cable.

1/0-1/0-1/0-1/0 Quadruplex Overhead Aluminum Service Drop Cable, Costena

Parent SKU :  COS-4SDP

SKU :  COS-4SDP-100

600 VOLT SUNLIGHT RESISTANT XLPE JACKET WITH BARE NEUTRAL MESSENGER.
In Stock
Ships in 1-2 days

Parent SKU :  COS-4SDP

SKU :  COS-4SDP-100

$296/ea.
$729/ea.
$1,451/ea.
$2,886/ea.
$2.96/ft.
Please select an option
Min: 100 ft., Max: 10,000 ft.
Spool (100 ft.)
$296.00
Please select an option
Maximum reached, contact us for custom orders
Contact Us
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Product Details

Product Details
APPLICATION:
Quadruplex Service Drop Aluminum Conductor Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75ºC maximum for polyethylene insulation or 90ºC maximum for cross linked insulation.

CONDUCTOR:
Concentric strand or compressed 1350-H19 series aluminum conductor.

CONDUCTOR SIZE:
1/0

BARE NEUTRAL MESSENGER:
Concentric strand AAC, ACSR, or AAAC 6201 alloy neutral messenger.

MESSENGER SIZE:
1/0

MESSENGER STRANDING:
6/1

BARE NEUTRAL BREAKING STRENGTH:
4,380 lbs.

ASSEMBLY:
Four twisted conductors, three insulated aluminum phase conductors and a bare neutral messenger, which also serves as the self-supporting element.

INSULATION:
Black cross linked polyethylene (XLP) insulation.

AMP RATING:
90ºC - 180 Amps



All values are nominal and subject to correction *Designated sizes are ACSR 6/1, diameter, equivalent resistivity per ASTM B399 for 6201. **Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 1/0
Conductor Material Aluminum
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 1.14 in.
Conductor Count 3
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene

Technical Specifications

Voltage Rating 600
Ampacity Rating 180
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ASTM B-230 Aluminum 1350–H19 Wire for Electrical Purposes
ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B-232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
ICEA S-76-474 Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts
RUS Accepted
Miscellaneous Information All values are nominal and subject to correction *Designated sizes are ACSR 6/1, diameter, equivalent resistivity per ASTM B399 for 6201. **Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun.

Usage & Installation

Primary ApplicationsOverhead Electrical Service
Common Uses
  • Residential Power Supply
  • Commercial and Industrial Power Supply
  • Temporary Service for Construction Sites
  • Outdoor Lighting
  • Secondary Distribution Between Poles.

Packaging & Dimensions:

Weight per Foot 0.575 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Video thumbnail
Aluminum Quadruplex Service Drop Cable

Wire America | Wire Flexibility Series

This video shows the flexibility, size, jacket detail, conductor material and stranding of the 6 AWG Chola Aluminum Quadruplex Service Drop Cable.
1/0-1/0-1/0-1/0 Quadruplex Overhead Aluminum Service Drop Cable, Costena
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 1/0
Conductor Material Aluminum
Conductor Type Stranded
Strand Count 19
Outer Diameter (OD) (in/mm) 1.14 in.
Conductor Count 3
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene

Technical Specifications

Voltage Rating 600
Ampacity Rating 180
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ASTM B-230 Aluminum 1350–H19 Wire for Electrical Purposes
ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B-232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B-399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
ICEA S-76-474 Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts
RUS Accepted
Miscellaneous Information All values are nominal and subject to correction *Designated sizes are ACSR 6/1, diameter, equivalent resistivity per ASTM B399 for 6201. **Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC, emissivity 0.9; 2ft/sec. wind in sun.

Usage & Installation:

Primary ApplicationsOverhead Electrical Service
Common Uses
  • Residential Power Supply
  • Commercial and Industrial Power Supply
  • Temporary Service for Construction Sites
  • Outdoor Lighting
  • Secondary Distribution Between Poles.

Packaging & Dimensions:

Weight per Foot 0.575 lb
