Glass-Reinforced Mica Tape: The Ultimate 450°C Fireproof Shield

Engineered Mineral Protection for the World’s Hottest Environments

In the electrical industry, 450°C is a "dead zone" for almost every traditional insulation. When the heat reaches these levels, polymers don't just melt—they vanish. To maintain power in these conditions, engineers turn to Glass-Reinforced Mica Tape.

This isn't a simple plastic jacket; it is a sophisticated composite system that combines the ancient, heat-defying properties of minerals with the modern strength of fiberglass.

1. What is Glass-Reinforced Mica Tape?

Mica is a naturally occurring mineral with incredible dielectric strength and fire resistance. However, on its own, mica is fragile. To create a functional insulation, it is bonded to a reinforcement layer.

• The Mica Layer: Provides the "firewall." It can withstand direct flame and extreme temperatures without losing its ability to stop electrical current.

• The Glass Reinforcement: A backing made of woven fiberglass or glass filaments. This gives the mica the tensile strength it needs to be wound tightly around a conductor without cracking or tearing.

2. Key Strengths: Why Is It Essential?

Glass-reinforced mica tapes are the "last line of defense" for critical systems:

• Extreme Thermal Stability: Rated for continuous operation at 450°C (842°F), far exceeding the limits of PTFE or Silicone.

• Circuit Integrity: In the event of a catastrophic fire, the organic binders may burn off, but the mica and glass remain in place, keeping the circuit "alive" to power emergency systems.

• Inorganic & Non-Toxic: Because it is mineral-based, it does not produce toxic smoke or "acid gas" when exposed to extreme heat.

• High Dielectric Strength: Even in thin layers, the mica provides exceptional insulation, preventing short circuits even under thermal stress.


3. Primary Applications

You won't find this in a standard home, but you will find it where high-heat performance is a matter of safety and production:

• Foundries & Steel Mills: Powering equipment near molten metal and industrial furnaces.

• Critical Fire Safety: Wiring for fire pumps, emergency lighting, and smoke extraction fans in high-rise buildings.

• Commercial Cooking & Heating: Internal wiring for high-output industrial ovens and fryers.

• Power Plants: Used in turbine and boiler areas where ambient heat would destroy standard cabling.

4. Comparison: The High-Heat Hierarchy

Choosing the right high-performance insulation depends on the peak temperature of your environment:

• Silicone Rubber (Up to 200°C): The best choice when you need extreme, "wet-noodle" flexibility and moisture resistance at moderately high temperatures.

• PTFE (Up to 250°C): The gold standard for chemical resistance and high-frequency signal integrity. It offers a very thin profile and survives where oils and fuels are present.

• Glass-Reinforced Mica Tape (Up to 450°C): The ultimate mineral shield. When temperatures exceed the limits of all polymers, or when a circuit must remain "fireproof" during an emergency, mica is the only solution.

5. Conclusion: Performance Beyond the Polymer

Glass-reinforced mica tape is the industrial gold standard for extreme thermal protection. By reinforcing a geological marvel (Mica) with a structural powerhouse (Glass), this insulation ensures that our most critical infrastructure remains powered—even when the heat is on.

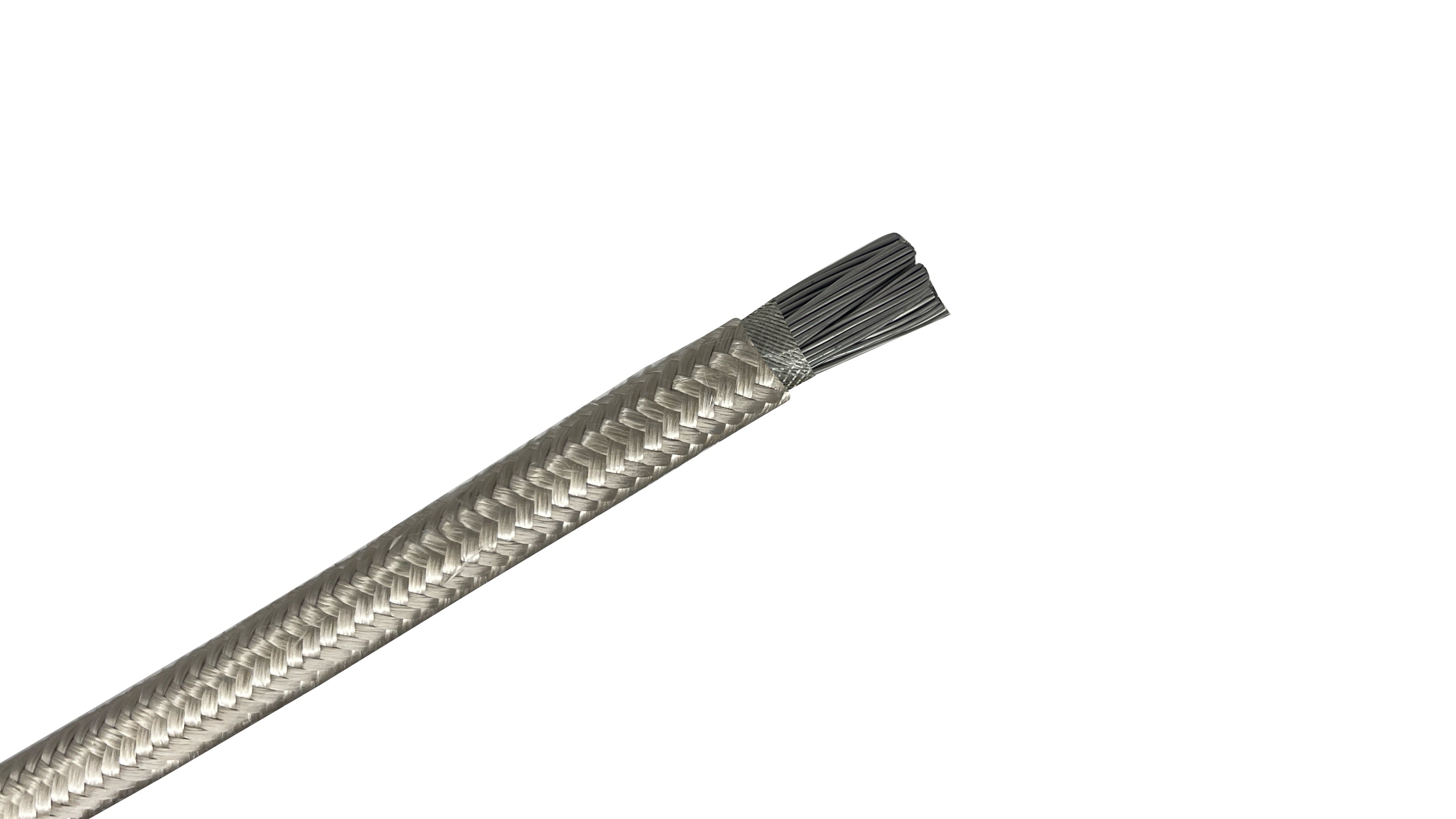

If a mica-glass reinforced mica tape insulation is required for your job please check out our MG(Mica Glass) High-Temp Wire:
