20-3C Thermostat Wire

THRM20-3

THRM20-3-500-WT

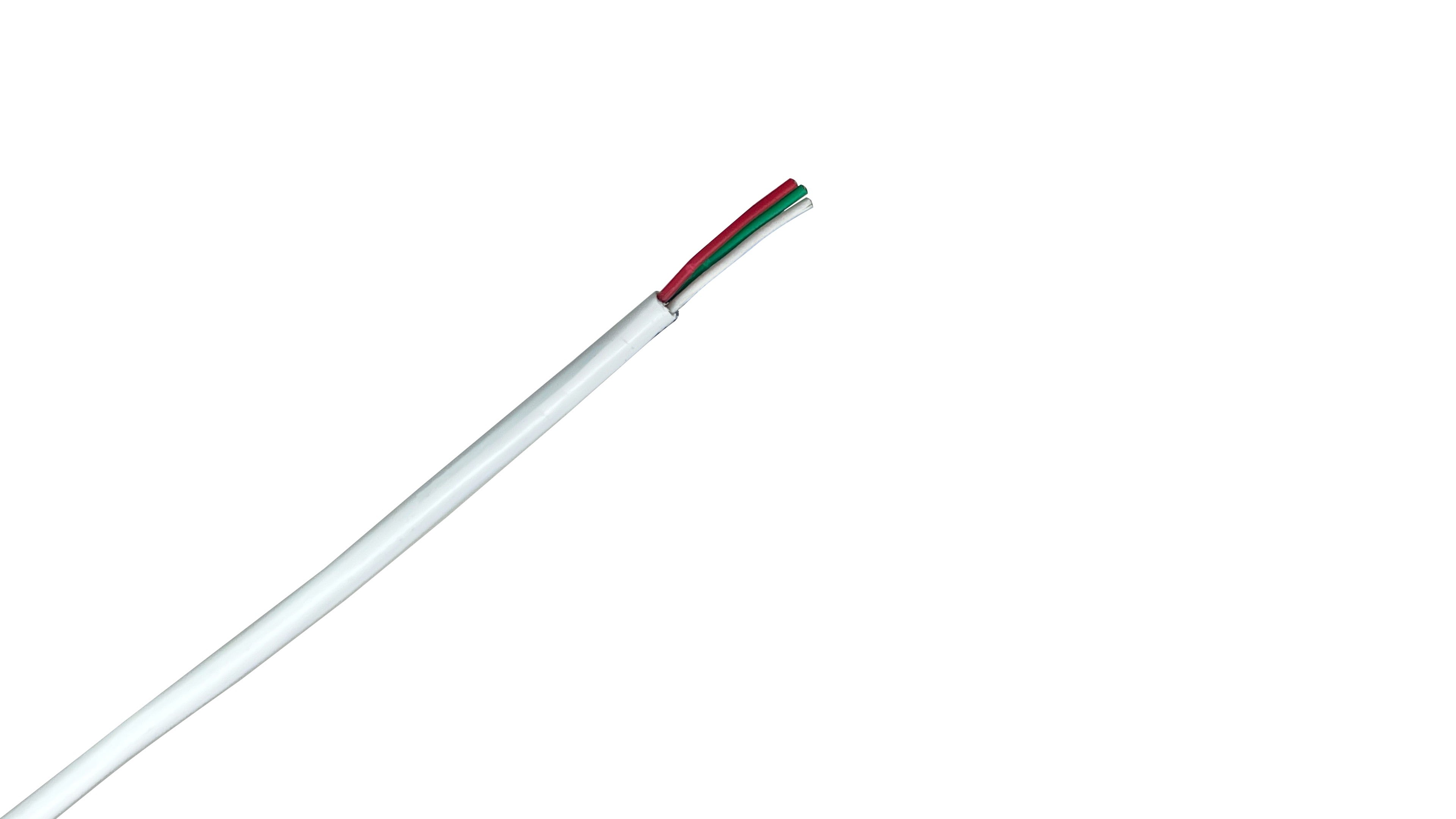

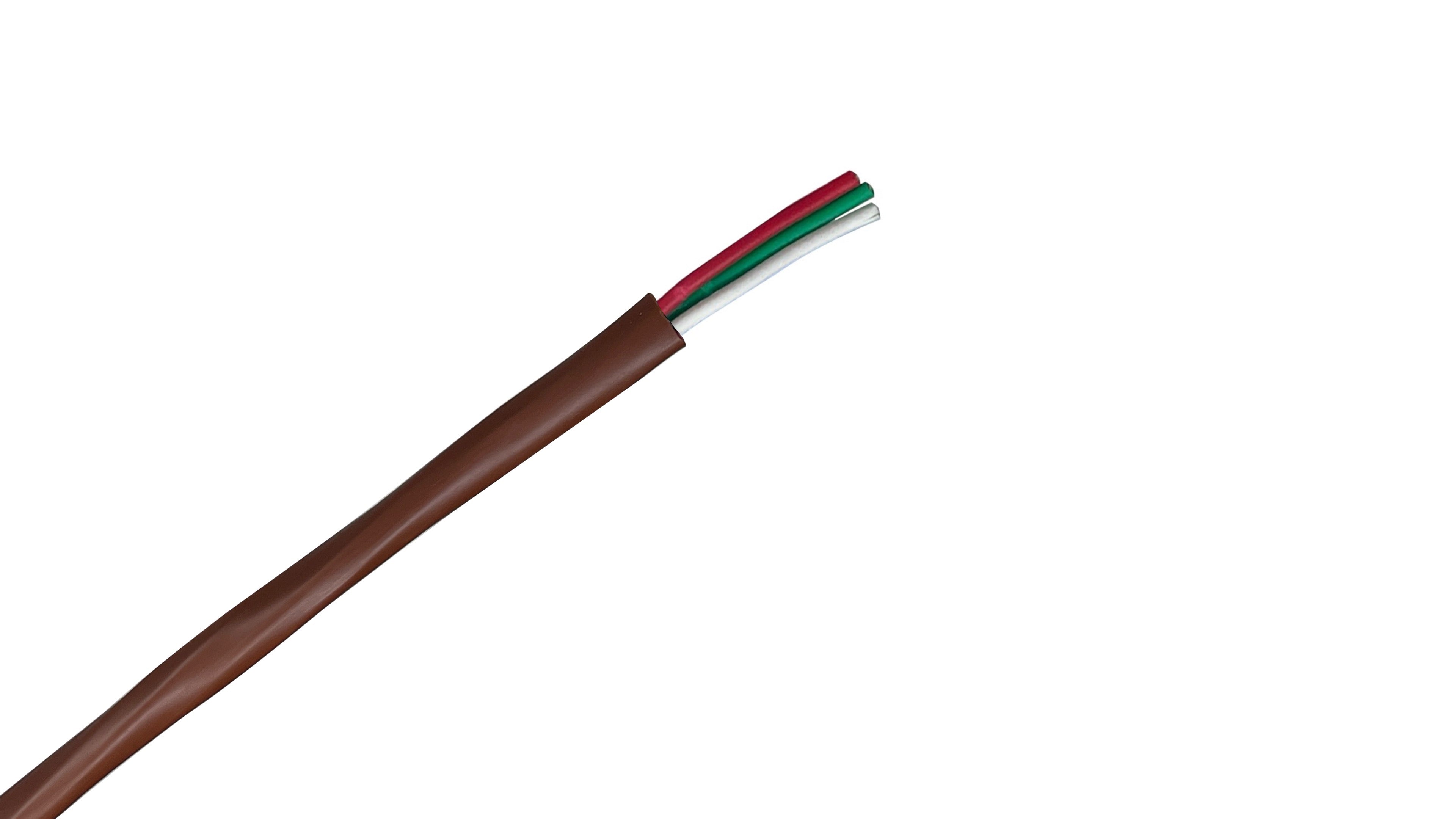

HEAT, MOISTURE AND SUNLIGHT RESISTANT PVC JACKET.
Download Spec Sheet
1/2
Wire Size 20 AWG
Conductor Material Copper
Conductor Type Solid
Outer Diameter 0.124 in.
Conductor Count 3
Voltage Rating 150V
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Thermostat Wire is primarily used for power limited circuits such as thermostats, air conditioning, heat pumps, bell and alarm systems, signals systems, door bells and remote control units where the voltage does not exceed 300 volts. Temperature rating is -20°C to +60°C.

CONDUCTOR:
Solid soft drawn copper, per ASTM B3 and B258.

INSULATION:
Heat and moisture resistant colored polyvinyl chloride (PVC) insulation.

JACKET:
Outer jacket of polyvinyl chloride (PVC), which is heat, moisture and sunlight resistant.

JACKET COLORS:
Brown or White.

CONDUCTOR COLORS:
White, Red, and Green.


All values are nominal and subject to correction.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 20 AWG
Conductor Material Copper
Conductor Type Solid
Strand Count Solid
Outer Diameter (OD) (in/mm) 0.124 in.
Jacket Type PVC
Conductor Count 3
Shield Unshielded
Insulation Type PVC
UL Listing Numbers UL

Technical Specifications

Voltage Rating 150V
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 60°C
Standards UL 13, CL2
UL 444, CM
NEC Article 725
Sunlight Resistant
Miscellaneous Information All values are nominal and subject to correction.

Usage & Installation

Primary ApplicationsResidential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control.

Packaging & Dimensions:

Weight per Foot 0.015 lb
