Prent SKU:TGGT-8
SKU:TGGT-8-250

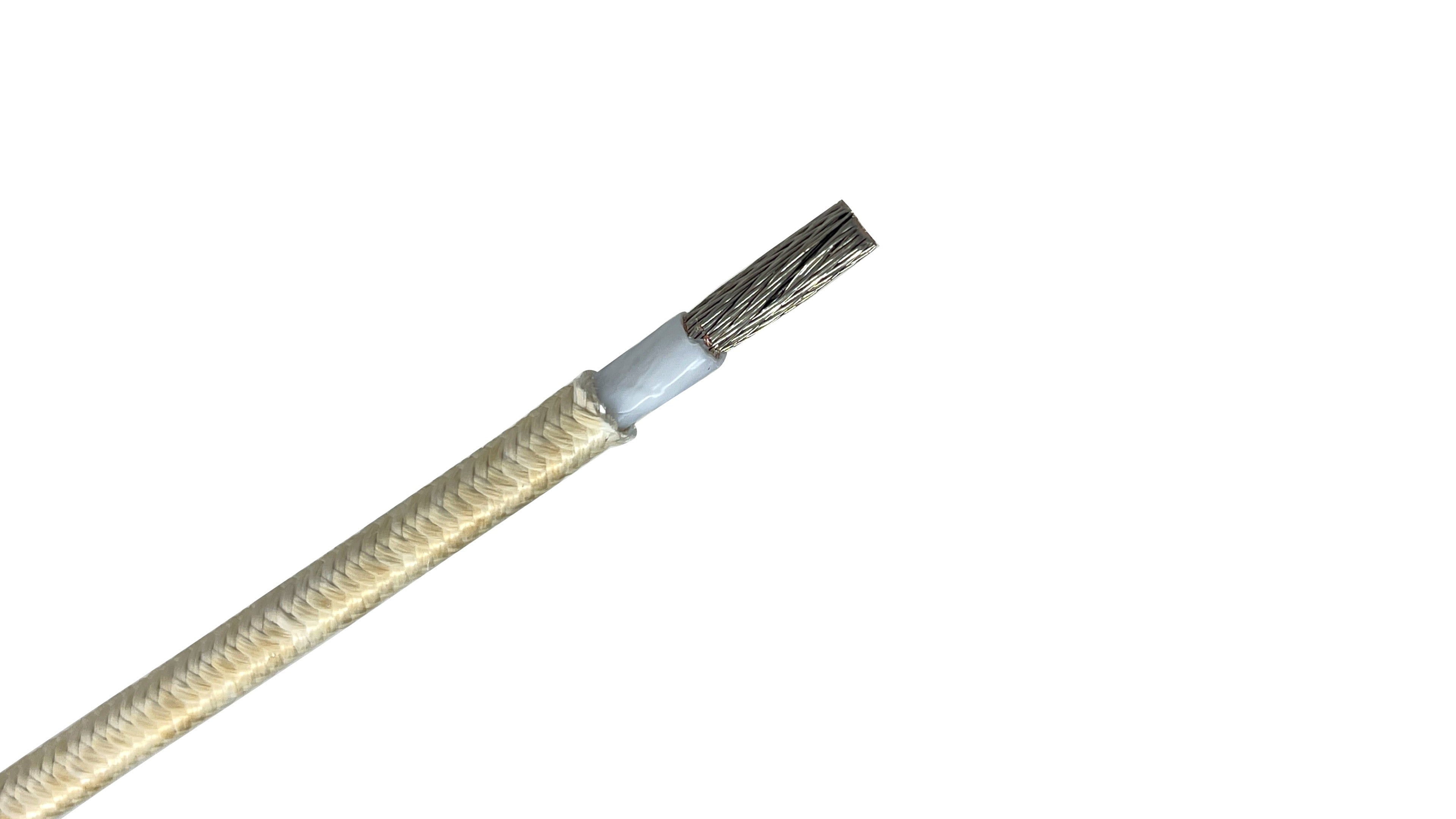

TGGT HIGH TEMP Appartus & Motor Lead Wire, is for use in internal wiring of domestic, commerical and industrial heating; cooking equipment and control and power circuits, when high temperatures and abrasive environments are present. TGGT is suitable for use in damp or dry applications up to 250ºC and 600 volts.
CONDUCTOR:
Flexible strand soft drawn 2% nickel coated copper conductors per ASTM B355, B8, B173 and B174
JACKET:
Braided Fiberglass with a high temperature finish with a moisture, heat and flame resistant compound.
INSULATION:
Polytetrafluoroethylene (PTFE) tape with glass serve
TEMPERATURE RATING:
250ºC / 482ºF
UL LISTING:
UL 5256 (18-2 AWG), UL 5251 (1/0 AWG and larger)
CABLE WEIGHT:
0.072 lbs/ft.
The data shown are approximate and subject to standard industry and manufacturer tolerances.
| Wire Size (AWG/MCM) | 8 AWG |
| Conductor Material | Nickel Coated Copper |
| Conductor Type | Stranded |
| Strand Count | 133 |
| Outer Diameter (OD) (in/mm) | 0.21 in. / 5.33 mm |
| Jacket Type | Fiberglass Braid |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | Polytetrafluoroethylene (PTFE) |
| UL Listing Numbers | UL 5256, UL 5251 |
| Voltage Rating | 600V |
| Submersible | No |
| Flexibility Rating | Good |
| Temperature Rating | 250ºC |
| Standards | UL 5256 (18-2 AWG) UL 5251 (1/0 AWG and larger) CSA AWM 1 A/B FT1 VW-1 Flame Test |
| Miscellaneous Information | The data shown are approximate and subject to standard industry and manufacturer tolerances |
| Primary Applications | Heating Equipment, Cooking Equipment, Industrial Cooking, Equipment wiring in Iron and Steel Mills, Cement Kilns, and Glass Plants |
| Common Uses |
|
| Weight per Foot | 0.072 lb |
