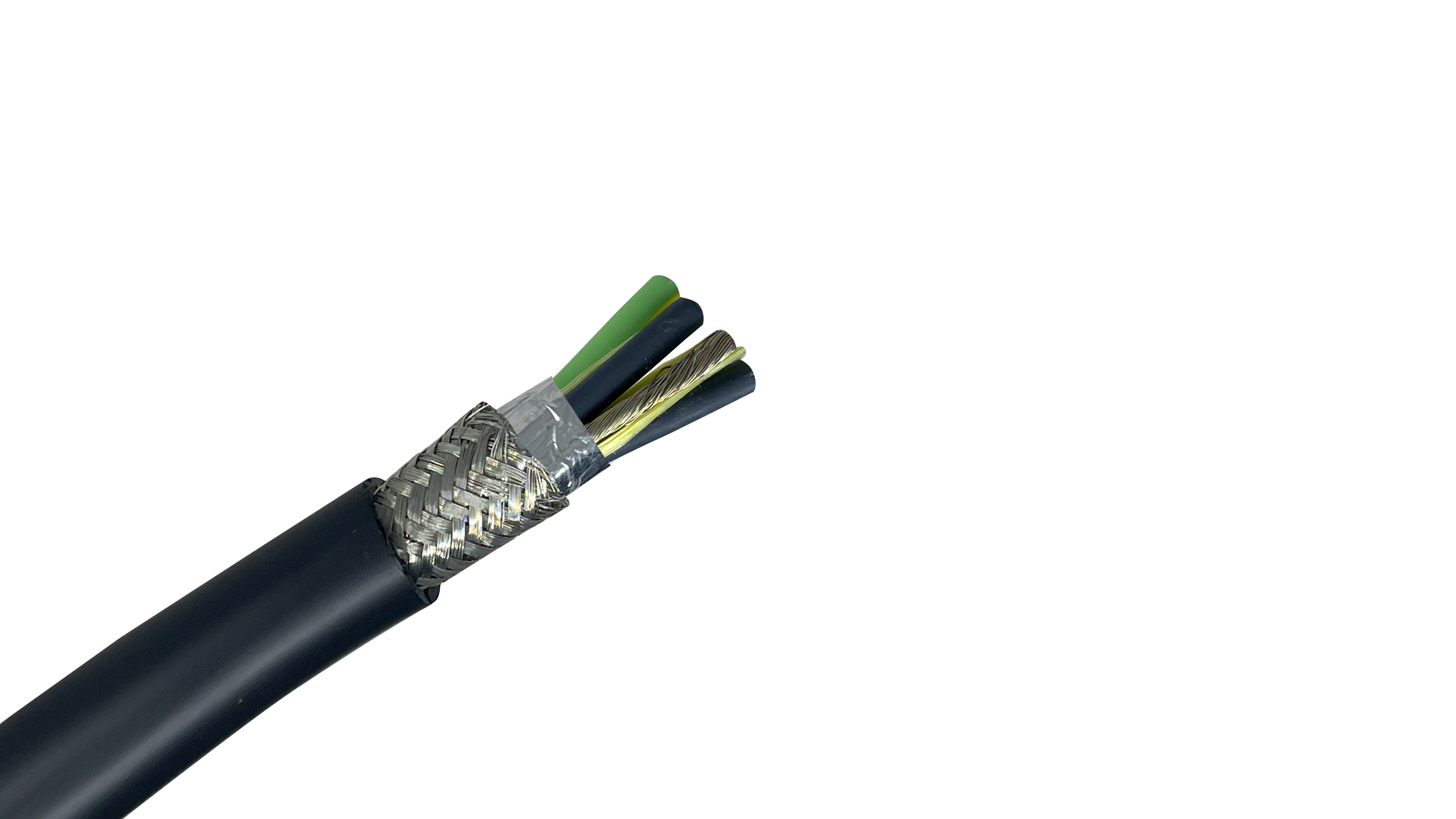

8-3 Shielded VFD Cable W/ 3 #14 Grounds

VFD8-3

VFD8-3-250

600 VOLT UL TYPE TC-ER 1000 VOLT UL TYPE MOTOR SUPPLY.
Download Spec Sheet
Wire Size 8 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Outer Diameter 0.72 in. / 18.26 mm
Conductor Count 3
Voltage Rating 600V / 1000V
Ampacity Rating 55
Weight per Foot 0.391 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Three Conductor Variable Frequency Drive Cables are primarily used with VFD’s. The three conductor construction is suitable for applications that are generally dry with one-phase fault conditions, where an insulated ground is not required.

CONDUCTOR:
Stranded soft drawn tinned copper.

GROUNDS:
3 #14 AWG grounds

COLOR CODE:
All black conductors with printed numbers 1, 2, 3

INSULATION:
Cross-linked polyethylene (XLP) insulation.

SHIELDING:
Aluminum/Mylar/Aluminum tape 100% coverage and tinned copper braid.

AMP RATING:
55



All values are nominal and subject to correction. **Ampacities shown are for general use as specified by the National Electrical Code 2017 Edition, Section 310.15 and 240.4(D). Unless the equipment is marked for use at higher temperatures, the conductor ampacities shall be limited to the follwing per NEC 110.14(C): 60°C - When terminated to equipment for circuits rated 100 amperes or less marked for 14 through 1 AWG conductors. 75°C - When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG. 90°C - THHN dry locations and THWN wet or dry locations for ampacity adjustment purposes using NEC section 310.15.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 8 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 133
Outer Diameter (OD) (in/mm) 0.72 in. / 18.26 mm
Jacket Type PVC
Conductor Count 3
Shield Coverage % 1
Shield Type Aluminum/Mylar/Aluminum Tape With Tinned Copper Braid
Shield Shielded
Insulation Type (XLP) Cross-Linked Polyethylene
UL Listing Numbers UL 1277, UL 2277, UL 1202/1583, cUL, CSA

Technical Specifications

Voltage Rating 600V / 1000V
Ampacity Rating 55
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL 1277, Type TC-ER, Type XHHW-2
UL listed as VFD or WTTC per UL 2277 for Flexible Motor Supply and Wind Turbine Tray Cables
CSA FT-4 Vertical tray flame test
CSA AWM I/II A/B singles
CSA Type AWM per CSA standard C22.2 No. 210-11
c(UL) CIC-TC per CSA standard C22.2 No. 239-09 & 23009
Meets UL 1202/1583 70, 000 BTU flame test
Meets ICEA T-29-520 210, 000 BTU flame test
Suitable for use in Class I Division II hazardous locations
90°C DRY/WET
RoHS II & REACH compliant
Miscellaneous Information All values are nominal and subject to correction.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsConveyors and material handling systems, robotics, pumps, fans, and compressors,water and wastewater treatment, car wash equipment, HVAC systems, demanding industrial environments.

Packaging & Dimensions:

Weight per Foot 0.391 lb

Shipping and Returns
