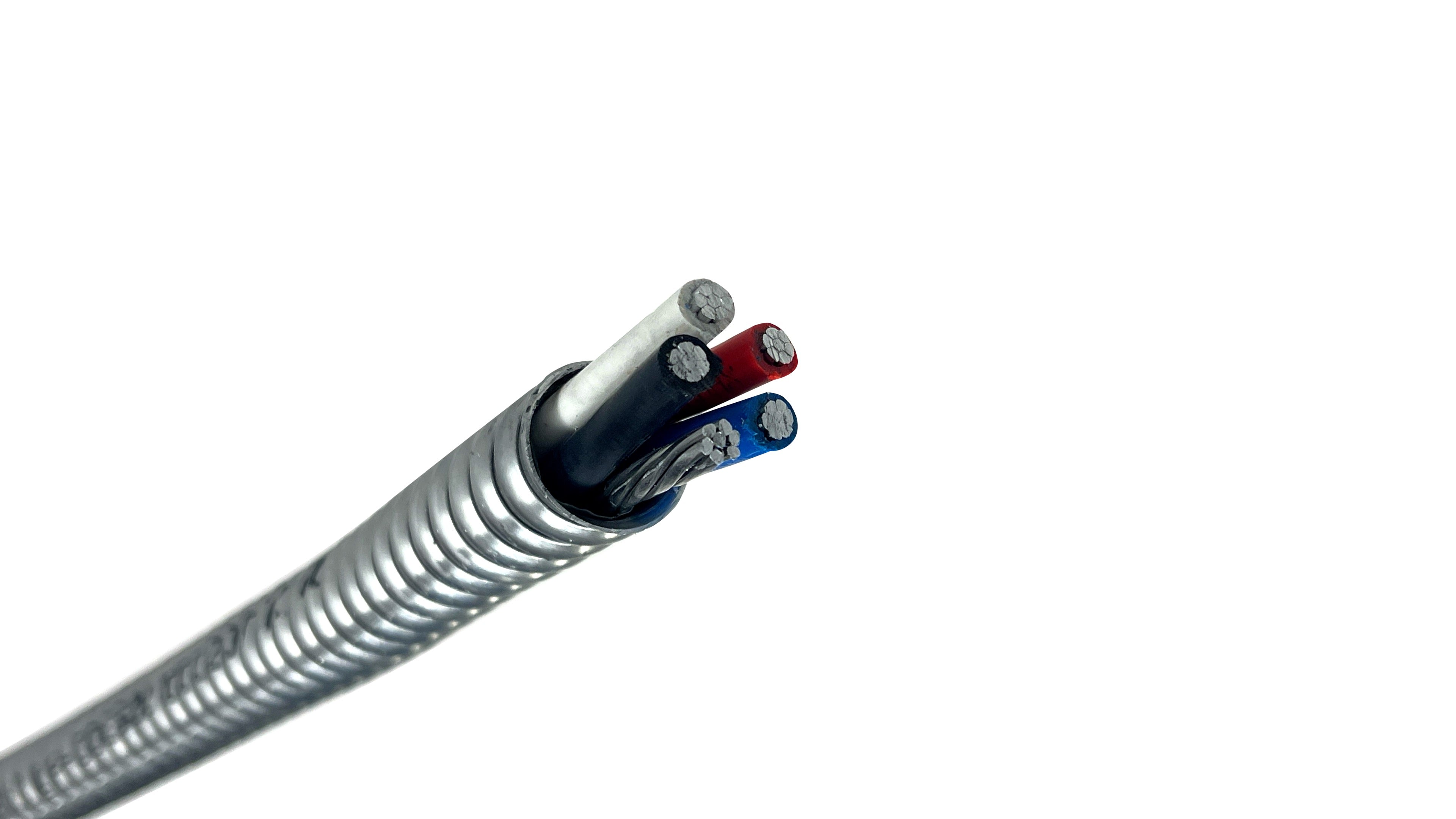

500-4 Aluminum MC Cable W/ 4/0 Bare Ground

MCA500-4-4/0G

MCA500-4-4/0G-250

600 VOLT ALUMINUM METAL CLAD CABLE
Download Spec Sheet
500-4 Aluminum MC Cable W/ 4/0 Bare Ground
Wire Size 500 MCM
Conductor Material Aluminum
Conductor Type Stranded
Outer Diameter 2.53 in.
Conductor Count 4
Voltage Rating 600V
Ampacity Rating 350
Weight per Foot 2.94 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Aluminum Conductor MC (Metal Clad) Cable is a versatile wiring solution ideal for branch, feeder, and service power distribution in commercial, industrial, and multi-residential buildings, as well as for power, lighting, control, and signal circuits. It can be installed in diverse environments, including cable trays, approved raceways, concealed or exposed locations, environmental air-handling spaces (plenums), and risers. Additionally, it is permitted for use in hazardous locations as defined by NEC Articles 501, 502, 503, and 504.

CONDUCTOR:
Compact strand 8000 series aluminum alloy conductors.

CONDUCTOR COLORS:
Black, Red and White

GROUND SIZE:
4/0

INSULATION:
Color coded cross-linked polyethylene XHHW-2 AA-8000 XLP insulation. A binder tape is wrapped over the insulated conductors’ assembly.

ARMOR:
Overall aluminum interlocked armor.

AMP RATING:
@ 75°C - 310 Amps
@ 90°C - 350 Amps



All values are nominal and subject to correction. **Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the 2020 National Electrical Code.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 500 MCM
Conductor Material Aluminum
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 2.53 in.
Conductor Count 4
Shield Unshielded
Insulation Type (XLPE) Cross-Linked Polyethylene

Technical Specifications

Voltage Rating 600V
Ampacity Rating 350
Submersible No
Temperature Rating 90ºC
Standards UL 44, 83, 1569 for Type MC Cable for CT Use
NEMA WC-70/ICEA S-95-658
IEEEE 1202 70, 000 BTU/HR Vertical Tray Flame Test
ASTM B800 & B801
NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces.
Miscellaneous Information All values are nominal and subject to correction. **Ampacities are based on NEC Table 310.15(B)(16), and show the allowable Ampacities of three current carrying insulated conductors, in a raceway, cable, or earth based on ambeient temperature of 30°C (86°F).

Usage & Installation

Primary ApplicationsService entrance conductors, Feeders, Branch circuits, Power, lighting, control, and signal circuits
Common Uses
  • Branch
  • feeder and service power distribution in commercial
  • industrial
  • and multi-residential buildings
  • power
  • lighting
  • control and signal circuits.

Packaging & Dimensions:

Weight per Foot 2.94 lb
