2515.0 MCM ACSR 76/19, Joree

JOR-ACSR

JOR-ACSR-250

ALUMINUM CONDUCTOR, ZINC-COATED STEEL REINFORCED CORE
Download Spec Sheet

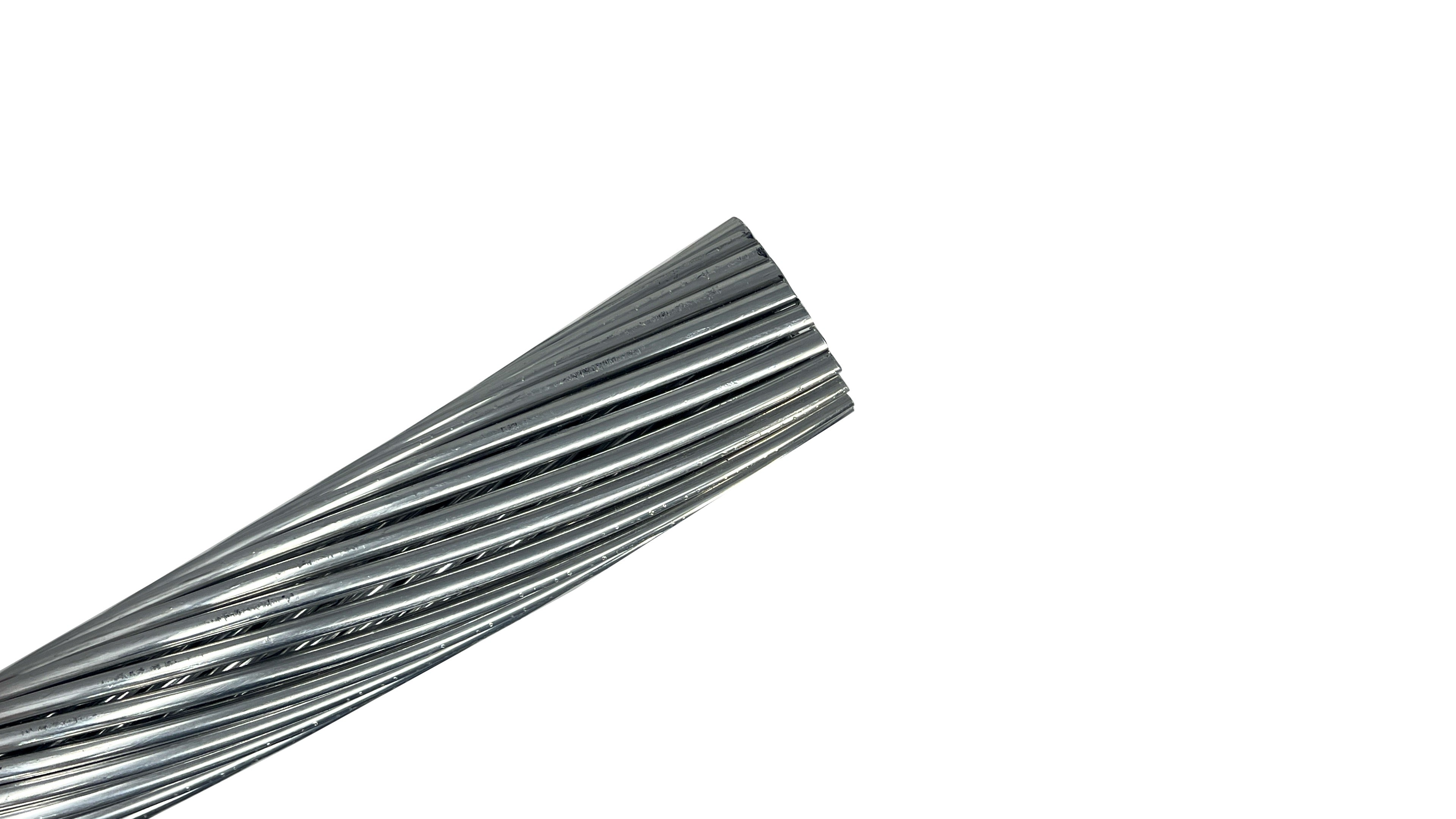

2515.0 MCM ACSR 76/19, Joree
Wire Size 2515.0 MCM
Conductor Material Aluminum ACSR
Strand Count 76/19
Outer Diameter 1.880 in.
Ampacity Rating 1751
Weight per Foot 2.749 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
ACSR – Aluminum Conductor Steel Reinforced wire is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding for desired strength to be achieved without sacrificing ampacity.

CONDUCTOR:
Aluminum alloy 1350-H119 wires, concentrically stranded around a steel core available with Class A, B or C galvanizing; aluminum coated (AZ); or aluminum-clad steel core (AL). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

CONDUCTOR STRANDING (Aluminum/Steel):
76/19

ALUMINUM DIAMETER:
0.1819 In.

STEEL DIAMETER:
0.0849 In.

STEEL CORE DIAMETER:
0.4245 In.

WEIGHT PER 1000 ft. (Aluminum/Steel/Total):
2384.0 lbs. / 364.8 lbs. / 2,749 lbs.

CONTENT % (Aluminum/Steel):
86.73 / 13.27

RATED BREAKING STRENGTH:
61,700 lbs.

RESISTANCE (Ohms/kft):
DC @ 20ºC - 0.0069
AC @ 75ºC - 0.009

AMP RATING:
1,751 Amps



All values are nominal and subject to correction. * Current ratings based on 75˚C conductor temperature, 25˚C ambient temperature, emissivity 0.5, 2ft/sec wind in sun. ** Resistance is calculated using ASTM standard increments of stranding, and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2515.0 MCM
Conductor Material Aluminum ACSR
Conductor Type Aluminum
Strand Count 76/19
Outer Diameter (OD) (in/mm) 1.880 in.
Conductor Count 1
Shield Unshielded

Technical Specifications

Ampacity Rating 1751
Submersible No
Sunlight Resistance Rating Yes
Standards B-230 Aluminum wire, 1350-H19 for Electrical Purposes
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
B-500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
RUS Accepted.
Miscellaneous Information All values are nominal and subject to correction. * Current ratings based on 75˚C conductor temperature, 25˚C ambient temperature, emissivity 0.5, 2ft/sec wind in sun. ** Resistance is calculated using ASTM standard increments of stranding, and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.

Usage & Installation

Primary ApplicationsACSR is chosen for its economy, dependability, high current-carrying capacity, and superior strength-to-weight ratio, making it ideal for a broad range of overhead power transmission and distribution scenarios.
Common Uses
  • Overhead Power Transmission and Distribution Lines
  • River Crossings and Long Spans
  • Overhead Ground Wire (OHGW) / Shield Wire
  • Renewable Energy Systems.

Packaging & Dimensions:

Weight per Foot 2.749 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

ACSR Bare Aluminum Wire

Wire America | Wire Flexibility Series

This video shows the flexibility, size, stranding and conductor material of the Swanate, Raven, Linnet, Drake and Bittern Aluminum Core Steel Reinforced ACSR Utility Cables.

2515.0 MCM ACSR 76/19, Joree

JOR-ACSR

JOR-ACSR-250

ALUMINUM CONDUCTOR, ZINC-COATED STEEL REINFORCED CORE
In Stock
Ships in 1-2 days

JOR-ACSR

JOR-ACSR-250

$0/ft
$0/ft
$0/ft
$0/ft
$0/ft
$0/ft
Please select an option
Contact Us For Availability
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Product Details

Product Details
APPLICATION:
ACSR – Aluminum Conductor Steel Reinforced wire is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding for desired strength to be achieved without sacrificing ampacity.

CONDUCTOR:
Aluminum alloy 1350-H119 wires, concentrically stranded around a steel core available with Class A, B or C galvanizing; aluminum coated (AZ); or aluminum-clad steel core (AL). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

CONDUCTOR STRANDING (Aluminum/Steel):
76/19

ALUMINUM DIAMETER:
0.1819 In.

STEEL DIAMETER:
0.0849 In.

STEEL CORE DIAMETER:
0.4245 In.

WEIGHT PER 1000 ft. (Aluminum/Steel/Total):
2384.0 lbs. / 364.8 lbs. / 2,749 lbs.

CONTENT % (Aluminum/Steel):
86.73 / 13.27

RATED BREAKING STRENGTH:
61,700 lbs.

RESISTANCE (Ohms/kft):
DC @ 20ºC - 0.0069
AC @ 75ºC - 0.009

AMP RATING:
1,751 Amps



All values are nominal and subject to correction. * Current ratings based on 75˚C conductor temperature, 25˚C ambient temperature, emissivity 0.5, 2ft/sec wind in sun. ** Resistance is calculated using ASTM standard increments of stranding, and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2515.0 MCM
Conductor Material Aluminum ACSR
Conductor Type Aluminum
Strand Count 76/19
Outer Diameter (OD) (in/mm) 1.880 in.
Conductor Count 1
Shield Unshielded

Technical Specifications

Ampacity Rating 1751
Submersible No
Sunlight Resistance Rating Yes
Standards B-230 Aluminum wire, 1350-H19 for Electrical Purposes
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
B-500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
RUS Accepted.
Miscellaneous Information All values are nominal and subject to correction. * Current ratings based on 75˚C conductor temperature, 25˚C ambient temperature, emissivity 0.5, 2ft/sec wind in sun. ** Resistance is calculated using ASTM standard increments of stranding, and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.

Usage & Installation

Primary ApplicationsACSR is chosen for its economy, dependability, high current-carrying capacity, and superior strength-to-weight ratio, making it ideal for a broad range of overhead power transmission and distribution scenarios.
Common Uses
  • Overhead Power Transmission and Distribution Lines
  • River Crossings and Long Spans
  • Overhead Ground Wire (OHGW) / Shield Wire
  • Renewable Energy Systems.

Packaging & Dimensions:

Weight per Foot 2.749 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

ACSR Bare Aluminum Wire

Wire America | Wire Flexibility Series

This video shows the flexibility, size, stranding and conductor material of the Swanate, Raven, Linnet, Drake and Bittern Aluminum Core Steel Reinforced ACSR Utility Cables.
2515.0 MCM ACSR 76/19, Joree
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 2515.0 MCM
Conductor Material Aluminum ACSR
Conductor Type Aluminum
Strand Count 76/19
Outer Diameter (OD) (in/mm) 1.880 in.
Conductor Count 1
Shield Unshielded

Technical Specifications

Ampacity Rating 1751
Submersible No
Sunlight Resistance Rating Yes
Standards B-230 Aluminum wire, 1350-H19 for Electrical Purposes
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
B-500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
RUS Accepted.
Miscellaneous Information All values are nominal and subject to correction. * Current ratings based on 75˚C conductor temperature, 25˚C ambient temperature, emissivity 0.5, 2ft/sec wind in sun. ** Resistance is calculated using ASTM standard increments of stranding, and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.

Usage & Installation:

Primary ApplicationsACSR is chosen for its economy, dependability, high current-carrying capacity, and superior strength-to-weight ratio, making it ideal for a broad range of overhead power transmission and distribution scenarios.
Common Uses
  • Overhead Power Transmission and Distribution Lines
  • River Crossings and Long Spans
  • Overhead Ground Wire (OHGW) / Shield Wire
  • Renewable Energy Systems.

Packaging & Dimensions:

Weight per Foot 2.749 lb
