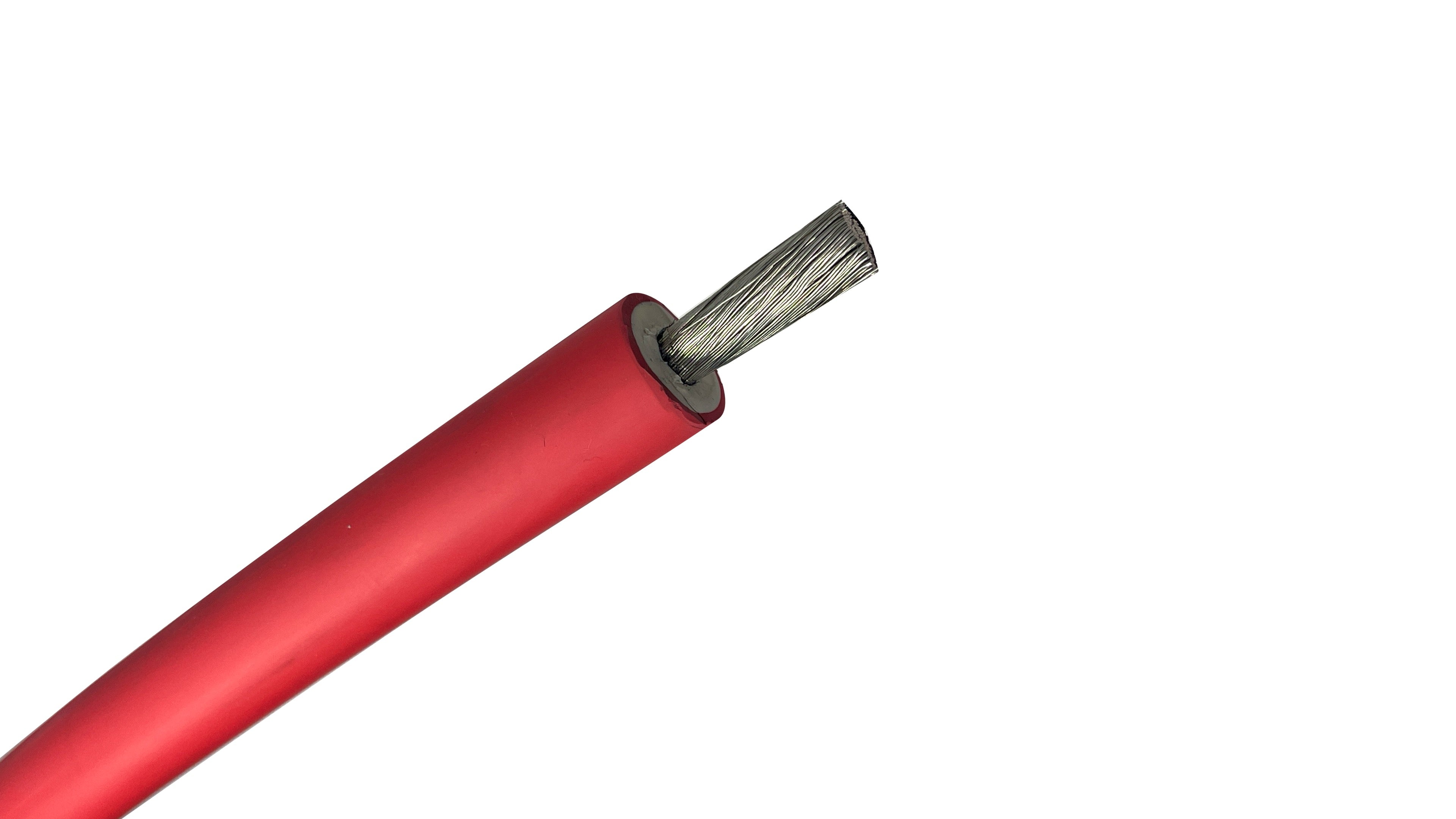

2 Gauge Jumper Cable 5kV/15kV

JCR2

JCR2-250

FLEXIBLE RUBBER INSULATED AND SHEATHED CABLE. 5kV/15kV.
Download Spec Sheet
2 Gauge Jumper Cable 5kV/15kV
Wire Size 2 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Outer Diameter 0.823 in.
Voltage Rating 5kV/15kV
Ampacity Rating 195
Weight per Foot 0.48 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
5kV/15kV Jumper Cable is a specialized, flexible, medium-voltage power cable used for temporary connections in electrical utility and industrial settings. It's built to safely handle high voltages, making it distinctly different from the jumper cables used to start a car.

CONDUCTOR:
Annealed flexible stranded tin coated in accordance with ASTM B 33 and ASTM B-173.

INSULATION:
Ethylene-propylene rubber (EPR)

JACKET:
A synthetic thermosetting CPE compound.

JACKET COLOR:
Red

FEATURES:
Excellent flexibility. Water resistant. Temperature range –40ºC to +90 ºC. Ink jet printed for easy identification.

AMP RATING:
@ 40°C - 195 Amps



Ampacities based on 40°C Ambient temperature per table 400.5(A)(2) of the National Electrical Code.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 259
Outer Diameter (OD) (in/mm) 0.823 in.
Jacket Type Synthetic thermosetting CPE compound
Conductor Count 1
Shield Unshielded
Insulation Type (EPR) Ethylene-propylene rubber

Technical Specifications

Voltage Rating 5kV/15kV
Ampacity Rating 195
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ASTM B 33 and ASTM B-173
Miscellaneous Information Ampacity based on 90°C conductor temperature.

Usage & Installation

Primary ApplicationsTemporary Power Bypasses, Substations and Switchgear, Mobile Substations

Packaging & Dimensions:

Weight per Foot 0.48 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Jumper Cable 5kV/15kV

Wire America | Wire Flexibility Series

This video shows the size, cable construction, conductor matrerial and flexibility of the 1/0, 5/15kV Red Jumper Cable.

2 Gauge Jumper Cable 5kV/15kV

JCR2

JCR2-250

FLEXIBLE RUBBER INSULATED AND SHEATHED CABLE. 5kV/15kV.
In Stock
Ships in 1-2 days

JCR2

JCR2-250

$4.64/ft
$4.62/ft
$4.59/ft
$4.71/ft
Please select an option
Contact Us For Availability
  • Fast Shipping
  • Competitive Pricing
  • Phone Support

Product Details

Product Details
APPLICATION:
5kV/15kV Jumper Cable is a specialized, flexible, medium-voltage power cable used for temporary connections in electrical utility and industrial settings. It's built to safely handle high voltages, making it distinctly different from the jumper cables used to start a car.

CONDUCTOR:
Annealed flexible stranded tin coated in accordance with ASTM B 33 and ASTM B-173.

INSULATION:
Ethylene-propylene rubber (EPR)

JACKET:
A synthetic thermosetting CPE compound.

JACKET COLOR:
Red

FEATURES:
Excellent flexibility. Water resistant. Temperature range –40ºC to +90 ºC. Ink jet printed for easy identification.

AMP RATING:
@ 40°C - 195 Amps



Ampacities based on 40°C Ambient temperature per table 400.5(A)(2) of the National Electrical Code.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 2 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 259
Outer Diameter (OD) (in/mm) 0.823 in.
Jacket Type Synthetic thermosetting CPE compound
Conductor Count 1
Shield Unshielded
Insulation Type (EPR) Ethylene-propylene rubber

Technical Specifications

Voltage Rating 5kV/15kV
Ampacity Rating 195
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ASTM B 33 and ASTM B-173
Miscellaneous Information Ampacity based on 90°C conductor temperature.

Usage & Installation

Primary ApplicationsTemporary Power Bypasses, Substations and Switchgear, Mobile Substations

Packaging & Dimensions:

Weight per Foot 0.48 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Jumper Cable 5kV/15kV

Wire America | Wire Flexibility Series

This video shows the size, cable construction, conductor matrerial and flexibility of the 1/0, 5/15kV Red Jumper Cable.
2 Gauge Jumper Cable 5kV/15kV
Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 2 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 259
Outer Diameter (OD) (in/mm) 0.823 in.
Jacket Type Synthetic thermosetting CPE compound
Conductor Count 1
Shield Unshielded
Insulation Type (EPR) Ethylene-propylene rubber

Technical Specifications

Voltage Rating 5kV/15kV
Ampacity Rating 195
Submersible No
Flexibility Rating Very Good
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ASTM B 33 and ASTM B-173
Miscellaneous Information Ampacity based on 90°C conductor temperature.

Usage & Installation:

Primary ApplicationsTemporary Power Bypasses, Substations and Switchgear, Mobile Substations

Packaging & Dimensions:

Weight per Foot 0.48 lb
1 (833) 268-8644
info@wireamerica.com
wireamerica.com

Have Questions?

We've got answers.

Call Us.

(833) 268-8644

Contact Support
AWG, or American Wire Gauge, is the standard system used primarily in North America to measure the diameter of electrical conductors. This system is critical because a wire's size directly impacts its electrical resistance and how much current (ampacity) it can safely carry. A key principle is that the smaller the AWG number, the larger the wire's diameter; for instance, 12 AWG is thicker and can carry more current than 14 AWG. Sizes beyond 0 AWG are referred to as "aught" (e.g., 1/0, 2/0). Selecting the correct AWG is essential for safe electrical installations, preventing overheating, and minimizing voltage drop.
Voltage drop is the natural reduction in electrical potential that occurs as current travels through a circuit, from the power source to a device. This happens because all wires inherently have resistance, which converts some electrical energy into heat, leading to a loss of voltage. While minor voltage drop is normal, excessive amounts can cause problems like dimming lights, slow or overheating motors, and erratic electronic behavior. It can also lead to higher energy consumption and, in severe cases, create safety hazards due to overheating wires. Key factors influencing voltage drop include the wire's length and thickness (gauge), the amount of current flowing through it, and the quality of electrical connections.
In electrical wiring, amps (amperes) measure the rate of electrical current flow. Think of it as the volume of electricity moving through the wire at any given time. Crucially, every electrical wire has an ampacity rating, which is the maximum current it can safely carry continuously without overheating. Exceeding a wire's ampacity can lead to insulation damage and fire hazards, highlighting why proper wire sizing based on expected amperage is vital for safe electrical systems.
A wire's ampacity, or its safe current-carrying capacity, changes with temperature primarily because of two factors. First, the electrical resistance of copper and aluminum wires increases as they get hotter, causing them to generate more heat when current flows. Second, every wire's insulation has a maximum temperature limit; exceeding this can cause degradation and safety hazards. Therefore, in hotter environments, a wire must carry less current to avoid exceeding its insulation's temperature rating. This ensures the wire remains safe and functional, preventing overheating and potential failures.
