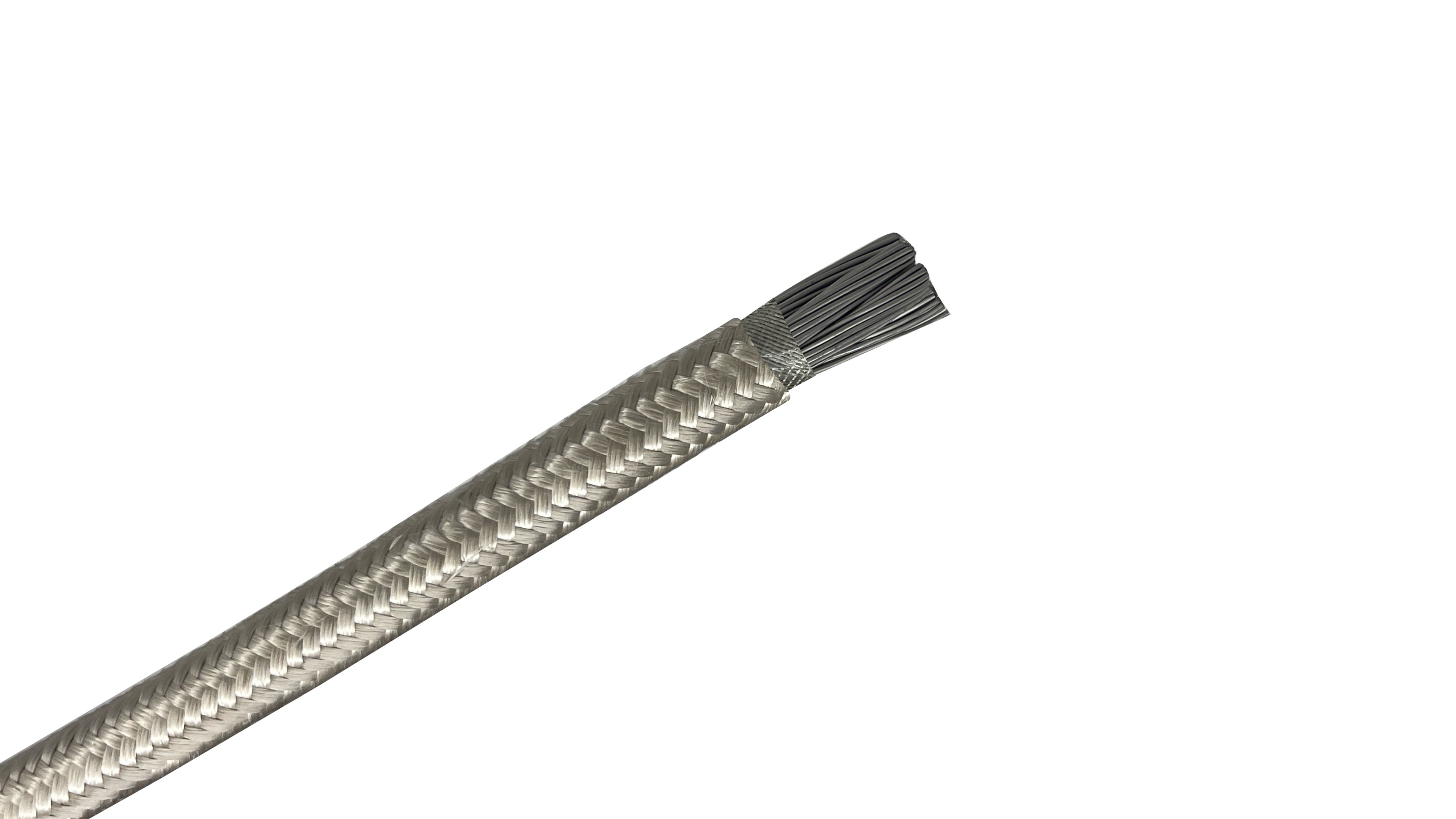

1/0 High Temp Wire, Type MG, 450ºC

MG450-1/0

MG450-1/0-250

HIGH TEMP MICA GLASS INSULATION WITH FIBERGLASS BRAID. UL STYLE 5107, 5359
Download Spec Sheet
Wire Size 1/0
Conductor Type Stranded
Outer Diameter 0.535 in. / 13.59 mm
Conductor Count 1
Voltage Rating 600V
Temperature Rating 450ºC
Download Spec Sheet

Product Details

Product Details
MG Wire, or Mica Glass Wire, is a specialized high-temperature electrical wire engineered for extreme heat environments where conventional wires would fail. Its key feature is its insulation, which consists of mica tape and an outer fiberglass braid, allowing it to withstand temperatures up to 450°C (842°F) and sometimes higher.

APPLICATIONS:
Industrial Ovens, Furnaces, Kilns, Commercial Cooking Equipment, Heating Elements, Electric Heaters, Hot Spot Wiring, Lighting and Various Appliances.

CONDUCTOR:
Flexible stranded 27% nickel plated, annealed copper.

JACKET:
Fiberglass braid with a high temperature finish.

TEMPERATURE RATING:
450ºC / 842ºF

UL LISTING:
UL 5107, UL 5359

CABLE WEIGHT:
0.400 lbs/ft.



The data shown are approximate and subject to standard industry and manufacturer tolerances.

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 1/0
Conductor Material Nickel Plated Copper
Conductor Type Stranded
Strand Count 259
Outer Diameter (OD) (in/mm) 0.535 in. / 13.59 mm
Jacket Type Fiberglass braid with a high temperature finish
Conductor Count 1
Shield Unshielded
Insulation Type Glass Reinforced Mica Tape
UL Listing Numbers UL 5017, UL 5359

Technical Specifications

Voltage Rating 600V
Submersible No
Temperature Rating 450ºC
Standards UL Style 5107, 5359
CSA AWM
A/B FT-1
Miscellaneous Information The data shown are approximate and subject to standard industry and manufacturer tolerances

Usage & Installation

Primary ApplicationsIndustrial Ovens, Furnaces, Kilns, Commercial Cooking Equipment, Heating Elements, Electric Heaters, Hot Spot Wiring, and Lighting and Appliances.

Packaging & Dimensions:

Weight per Foot 0.4 lb
